12V and 24V Automotive Vehicle Car Battery Tester Multifunction Check Meter Digital Analyzer Diagnostic ALL-SUN EM575
12V and 24V Automotive Vehicle Car Battery Tester Multifunction Check Meter Digital Analyzer Diagnostic ALL-SUN EM575
UKOBD2 Provide top quality 12V and 24V Automotive Vehicle Car Battery Tester Multifunction Check Meter Digital Analyzer Diagnostic ALL-SUN EM575, if you need 12V and 24V Automotive Vehicle Car Battery Tester Multifunction Check Meter Digital Analyzer Diagnostic ALL-SUN EM575, or have any questions about 12V and 24V Automotive Vehicle Car Battery Tester Multifunction Check Meter Digital Analyzer Diagnostic ALL-SUN EM575, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of 12V and 24V Automotive Vehicle Car Battery Tester Multifunction Check Meter Digital Analyzer Diagnostic ALL-SUN EM575

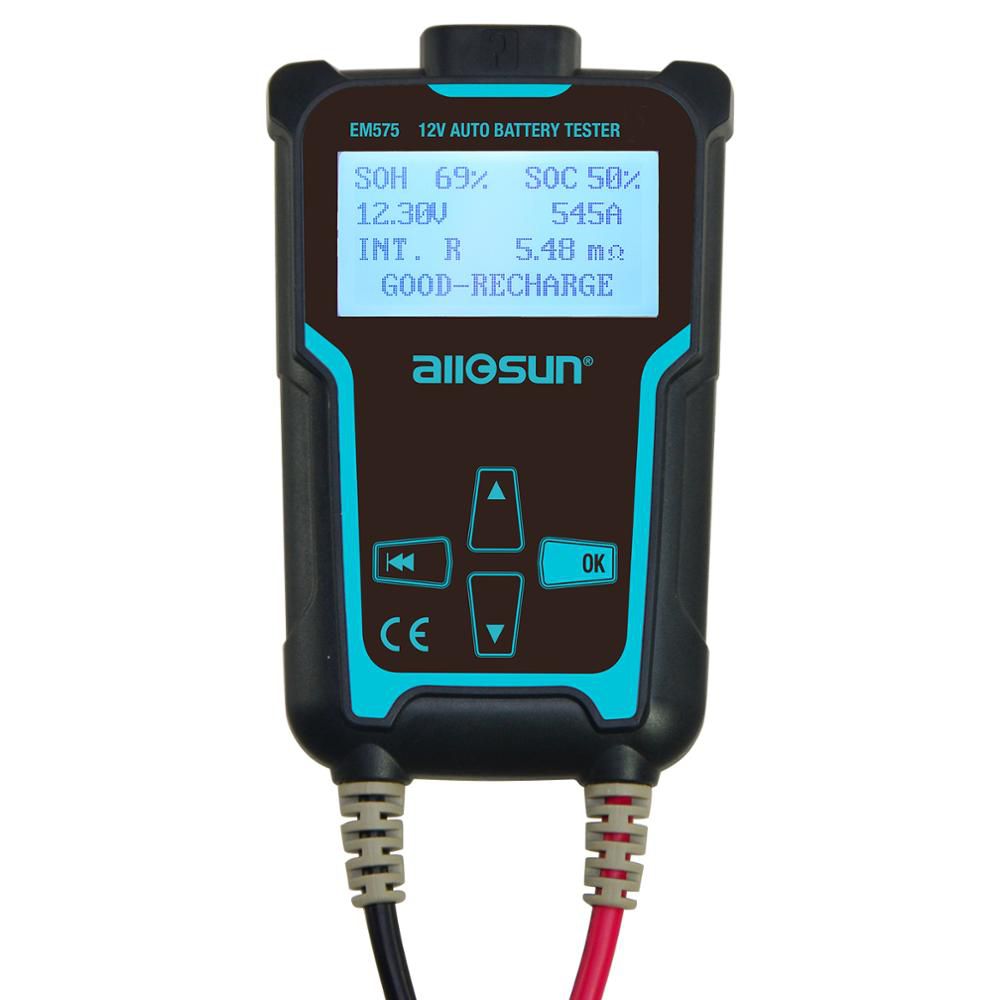

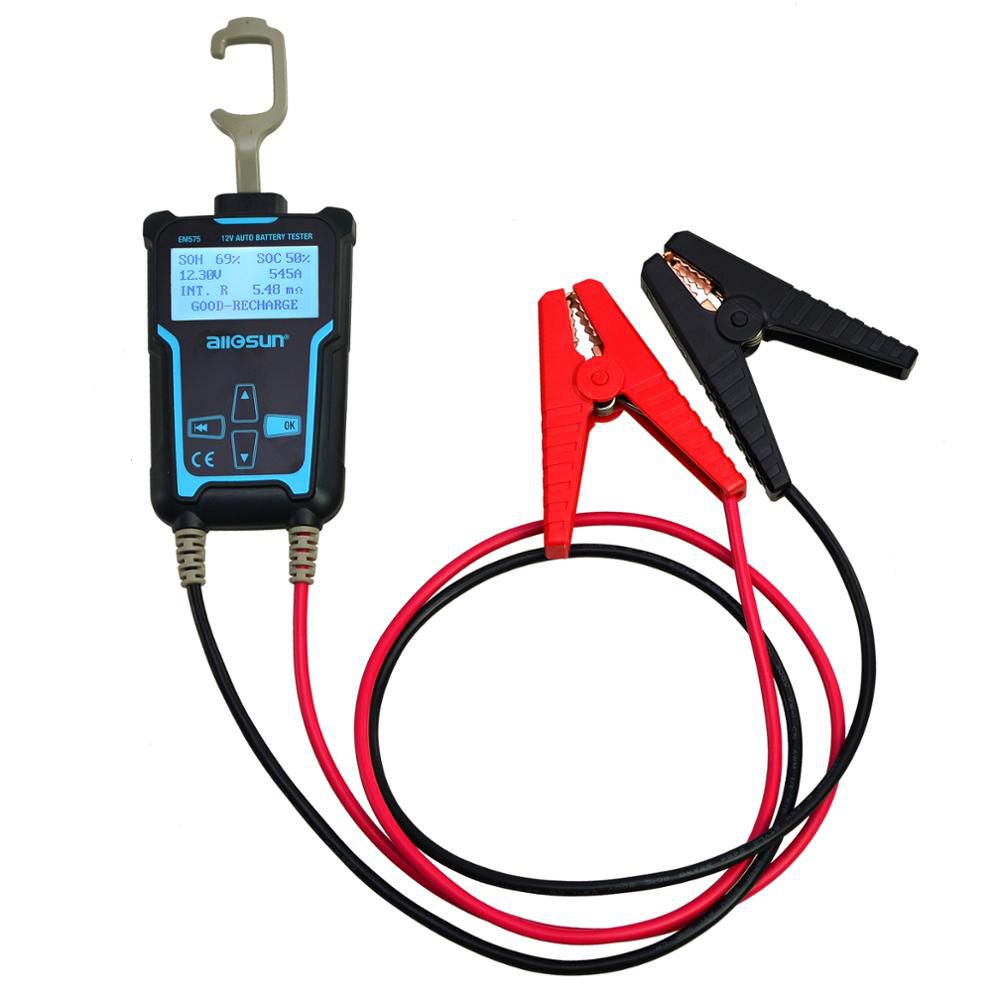

This instrument is a handheld, portable test tool designed to test 12V/24V automotive lead-acid storage batteries and 12V/24V automotive starting systems and charging systems.
It can easily, quickly and accurately test the actual cold cranking amps capability of automotive battery, health state of automotive battery, automotive cranking system and charging system.
It can be used by maintenance personnel to troubleshoot automotive battery problem and automotive starting/charging system problem.
it can be used in automobile factories, automotive maintenance and repair workshops, automotive battery factories, educational organizations, and etc, or used by automotive battery distributors.
FEATURES
1. Test all automotive cranking lead acid batteries, including ordinary lead acid batteries, AGM flat plate batteries, AGM spiral batteries, Gel batteries, and etc.
2. Directly detects bad cell battery.
3.Reverse polarity connection protection. Reverse polarity connection will not damage the tester or affect the vehicle and battery under test.
4. Directly tests low battery, no need to fully charge battery before test.
5. Test standards include most usual battery standards around the world: CCA, DIN, EN, IEC and JIS.
6. Selectable languages: Chinese, English, Japanese, Russian, Spanish, German and etc.
7. The measuring range of 12 V batteries is 9 - 15V, the measuring range of 24 V batteries is 9 - 30V.
SPECIFICATIONS
Voltage Measuring Range: 9V to 30V DC
Battery Internal Resistance Measuring Range: 2 ~ 200 mΩ
Operating Temperature: 0℃ to 40℃
Storage Temperature: -20℃ to 60℃
Weight: About 258g
Allowable Input Range of Rated Cold Cranking Amps:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If there is no any information ( such as standard, rating ) about the battery to be tested, you can refer to the following data:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Usually, the battery rating of a Benz car whose engine displacement is above 2000 CC is about 760EN.
OPERATION INSTRUCTION
Before test, please learn the manual clearly
Battery Test
|
|
| ||
|
|
| ||
|
|
| ||
|
|
| ||
|
|
| ||
|
|
| ||
|
|
|
