2 Color LCD Digital Multimeter AC/DC 750/1000V Digital Mini Multimeter probe For Voltmeter Ammeter Ohm Tester Meter
2 Color LCD Digital Multimeter AC/DC 750/1000V Digital Mini Multimeter probe For Voltmeter Ammeter Ohm Tester Meter
UKOBD2 Provide top quality 2 Color LCD Digital Multimeter AC/DC 750/1000V Digital Mini Multimeter probe For Voltmeter Ammeter Ohm Tester Meter, if you need 2 Color LCD Digital Multimeter AC/DC 750/1000V Digital Mini Multimeter probe For Voltmeter Ammeter Ohm Tester Meter, or have any questions about 2 Color LCD Digital Multimeter AC/DC 750/1000V Digital Mini Multimeter probe For Voltmeter Ammeter Ohm Tester Meter, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

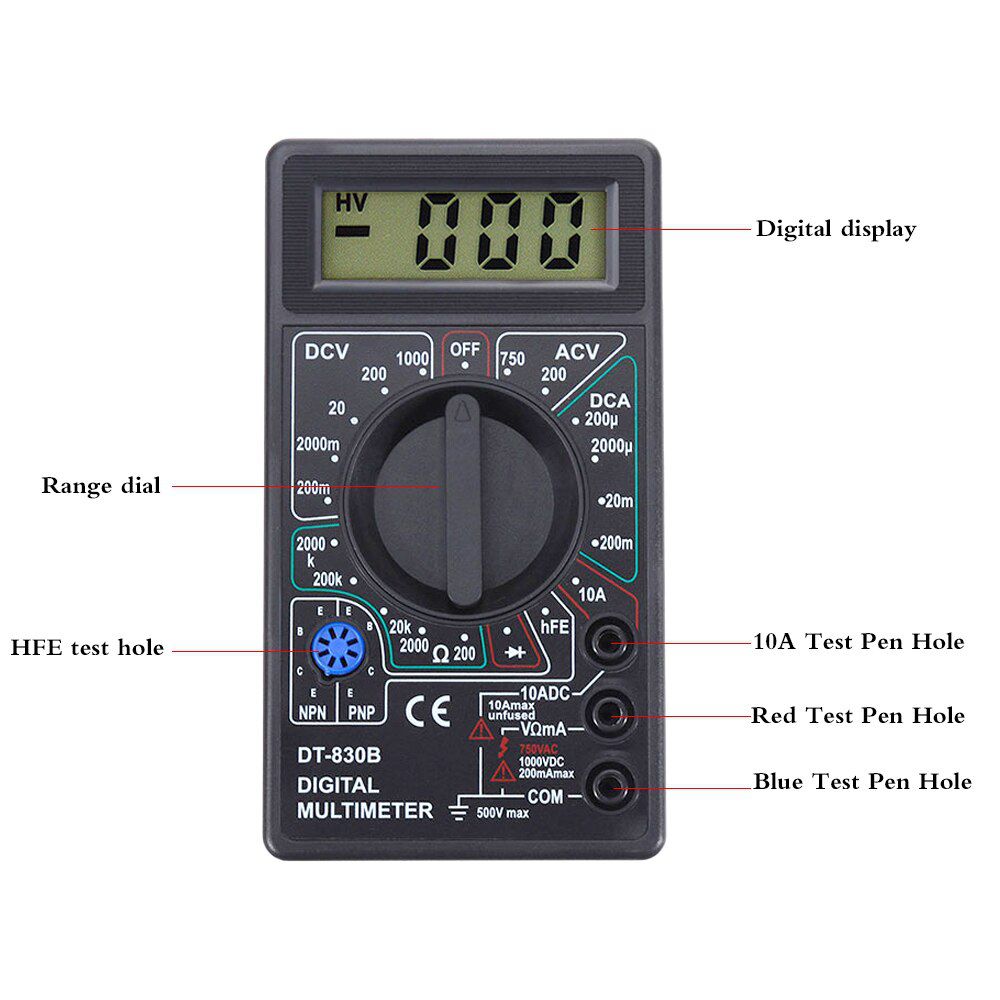

images of 2 Color LCD Digital Multimeter AC/DC 750/1000V Digital Mini Multimeter probe For Voltmeter Ammeter Ohm Tester Meter
Features:
1.3 1/2 digits, 7segment, 0.5"high LCD Display.
2.Max display: 1999, Auto polarity display.
3.Small and compact design.
4.Overload protection on all ranges.
5.Sampling 2~3 times readings per second.
6.Diode assembly test / Temperature test/Transistor hFE test.
7.Low battery voltage indication. Voice signal
Specification:
1.Model: DT-830B
2.Measuring range:
3.Max AC Current: 10A
4.Max AC Voltage range: 1000V
5.Max DC Voltage range: 750V

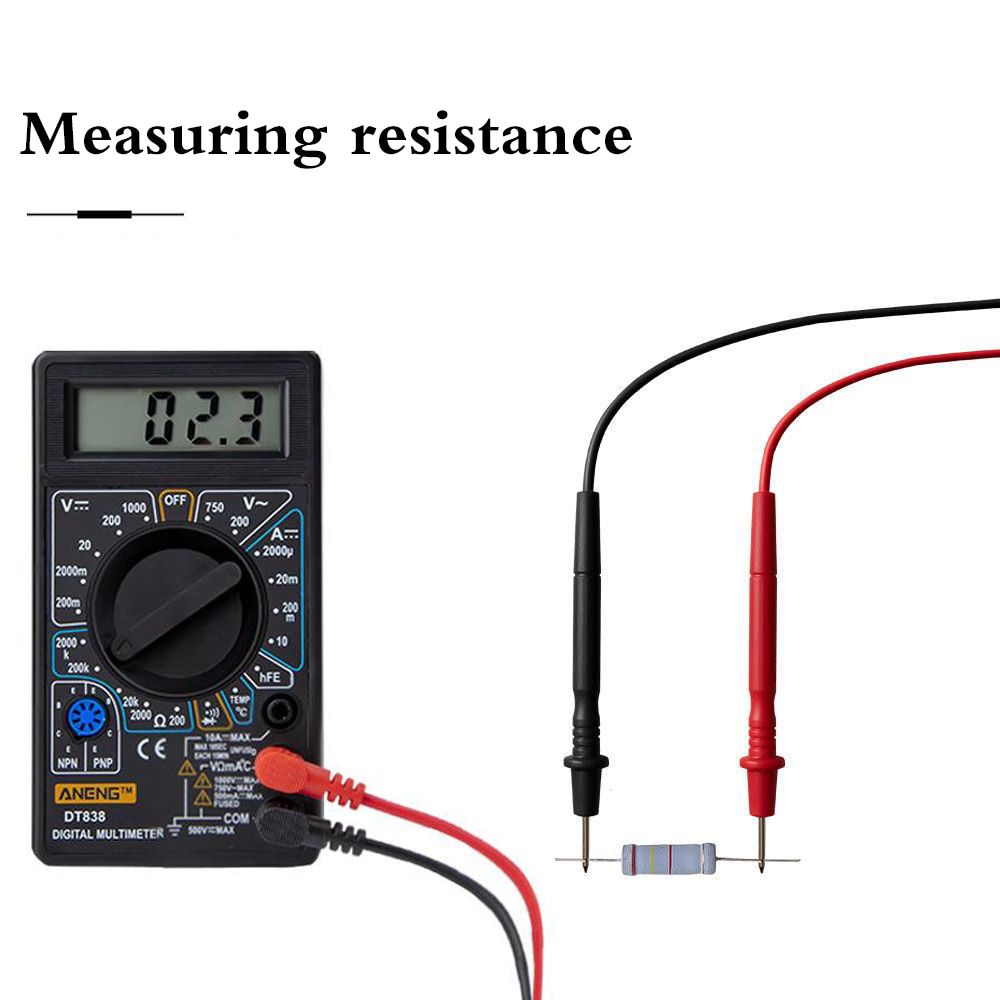

6.Resistance Measurement: 200 Ohm-2000K Ohm range
7.Temperature Test: -40-1000 ℃
8.Power Supply: 9V Battery (Not Included)
9.Color: Black /Yellow
10.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78'' (L*W*H)
11.Scale degree & Accuracy:
12.DC voltage: 200mV 100uv±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv
1000v 1v±(0.8% + 2)
13.AC voltage: 200V 100mv±(1.2% + 10)
750v 1v
14.DC current: 2000ua 1ua±(1% + 2)
20ma 10ua
200ma 100ua±(1.2% + 2)
10a 10ma±(2% + 2)
15.Resistance: 200Ω0.1Ω±(0.8% + 2)
2000Ω1
20kΩ10
200kΩ100
2000kΩ1000Ω±(1% + 2)
16.Temperature: -40-1000℃ 1℃±3%
Package Included
BUYER SHOWS
