TOPDON AB101 Car Battery Tester 12V Voltage Battery Test Automotive Charger Analyzer 2000CCA Car Cranking Charging Circut Tester
TOPDON AB101 Car Battery Tester 12V Voltage Battery Test Automotive Charger Analyzer 2000CCA Car Cranking Charging Circut Tester
UKOBD2 Provide top quality TOPDON AB101 Car Battery Tester 12V Voltage Battery Test Automotive Charger Analyzer 2000CCA Car Cranking Charging Circut Tester, if you need TOPDON AB101 Car Battery Tester 12V Voltage Battery Test Automotive Charger Analyzer 2000CCA Car Cranking Charging Circut Tester, or have any questions about TOPDON AB101 Car Battery Tester 12V Voltage Battery Test Automotive Charger Analyzer 2000CCA Car Cranking Charging Circut Tester, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

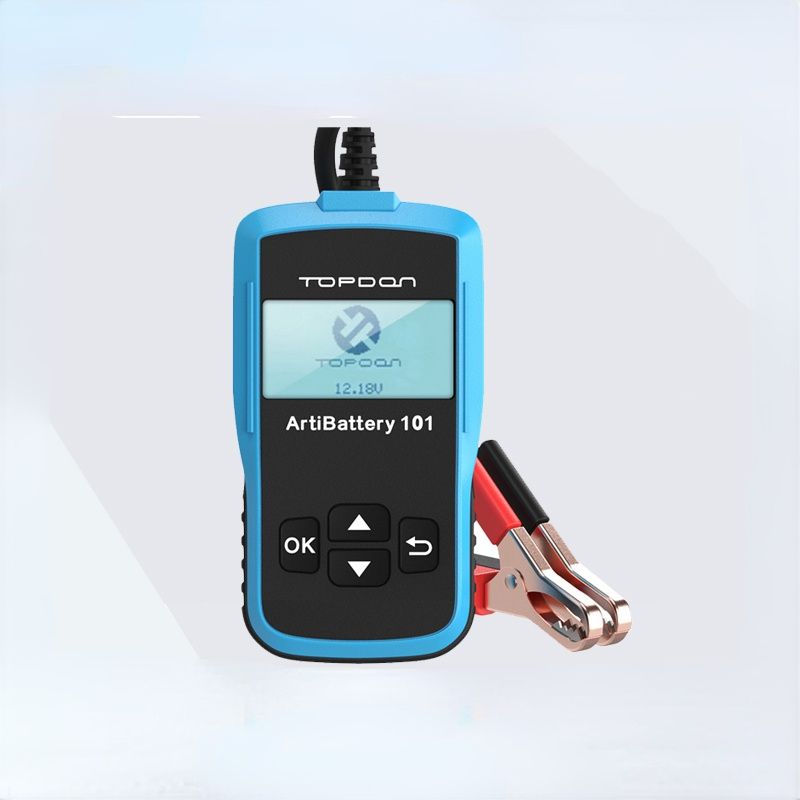

images of TOPDON AB101 Car Battery Tester 12V Voltage Battery Test Automotive Charger Analyzer 2000CCA Car Cranking Charging Circut Tester
TOPDON AB101 Car Battery Tester 12V Voltage Battery Test Automotive Charger Analyzer 2000CCA Car Cranking Charging Circut Tester
Language Support:
English,Russian,French,Spanish,Portuguese,German,Italian,Japanese
Description：
ArtiBattery 101, adopting the advanced conductance testing technology, is to help mechanics find the problem easily, quickly and accurately; testing cranking, charging, and common fault for all automotive cranking lead acid battery including ordinary lead acid battery, gel battery, AGM flat plate and spiral battery.to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery.
Specification：
Material: ABS plastic, silicone buttons
Screen: 128*64 LCD Display,
Size: 125.5 * 65.5 * 19 mm,
Weight: 210 g
1) Output voltage: 9-16VDC;
2) Working current: 40mA/12V;
3) Power: 0.5W;
4) Operating temperature: 0-50°C;
5) Storage temperature: -20-+70°C;
6) Working humidity:≤80%;

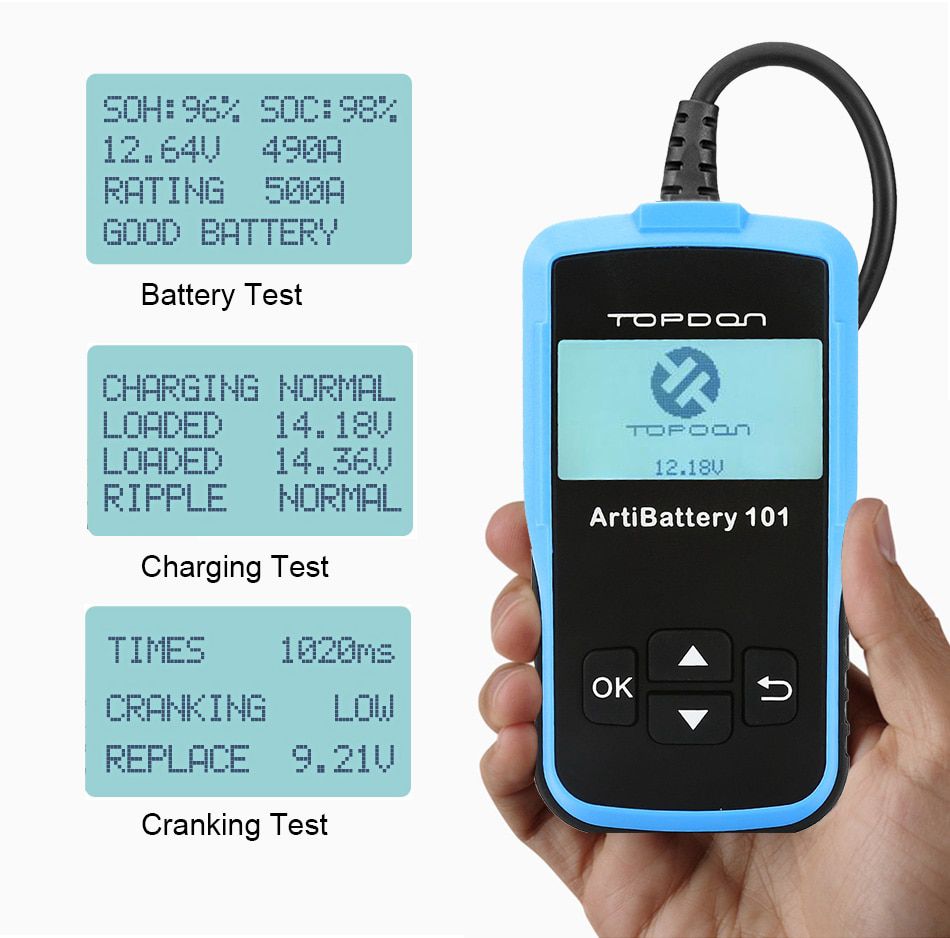

12V Car Circuit Tester Function
Identify battery status Good or Replace Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Check Internal resistance value (m) Display Life in percentage (%) Battery Cranking Test, load test Battery Charging Test, Ripple Test Battery Health Test
Cranking Test:
1). Entering cranking test and starting the engine as prompted, tester will automatically complete the test;
2). The tester will display the result including actual cranking voltage and actual cranking time;
3). If cranking voltage value is lower than 9.6V, the cranking system is regarded as abnormal;
4). If cranking voltage value is higher than 9.6V, the cranking system is OK.
5).When cranking test is abnormal, battery test result will also be displayed at the same time
