AN101 Mini Multimeter 1999 Count DC/AC Voltage Current Automatic Meter Pocket Voltmeter Ammeter Tester with Test Tool
AN101 Mini Multimeter 1999 Count DC/AC Voltage Current Automatic Meter Pocket Voltmeter Ammeter Tester with Test Tool
UKOBD2 Provide top quality AN101 Mini Multimeter 1999 Count DC/AC Voltage Current Automatic Meter Pocket Voltmeter Ammeter Tester with Test Tool, if you need AN101 Mini Multimeter 1999 Count DC/AC Voltage Current Automatic Meter Pocket Voltmeter Ammeter Tester with Test Tool, or have any questions about AN101 Mini Multimeter 1999 Count DC/AC Voltage Current Automatic Meter Pocket Voltmeter Ammeter Tester with Test Tool, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

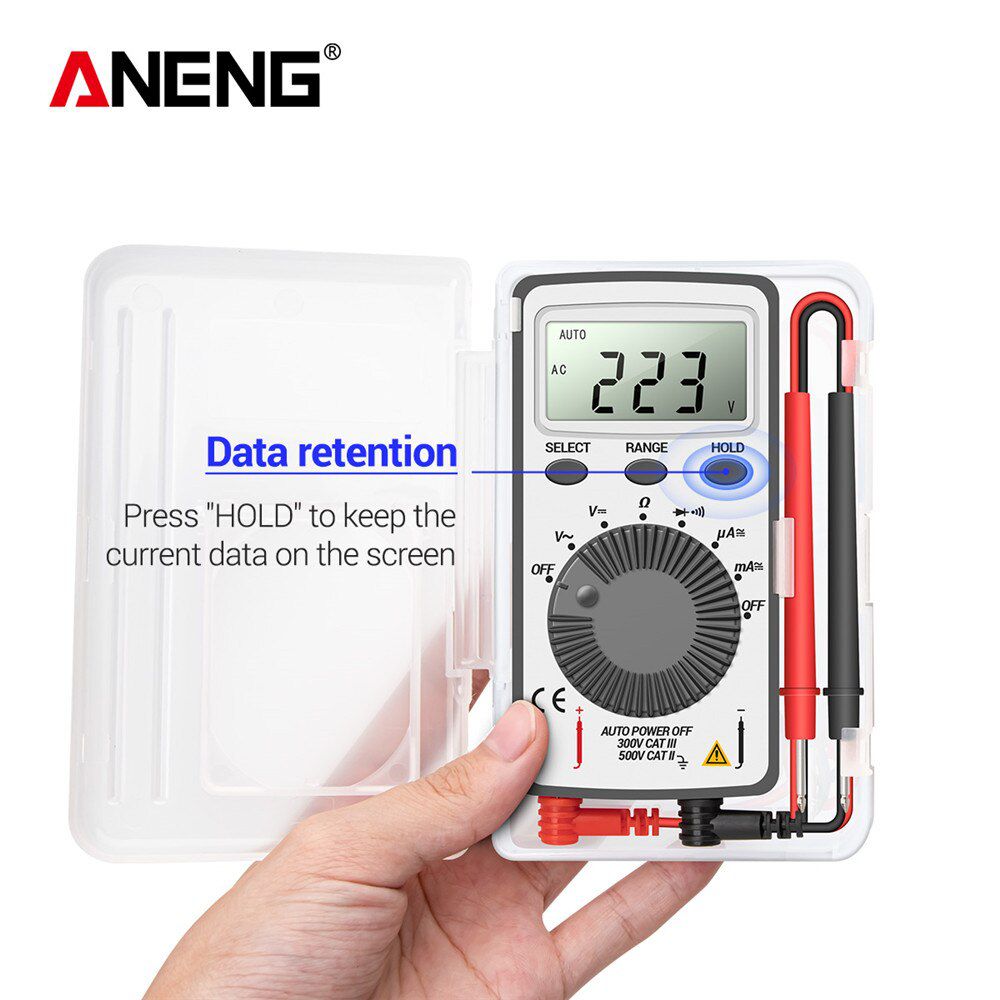

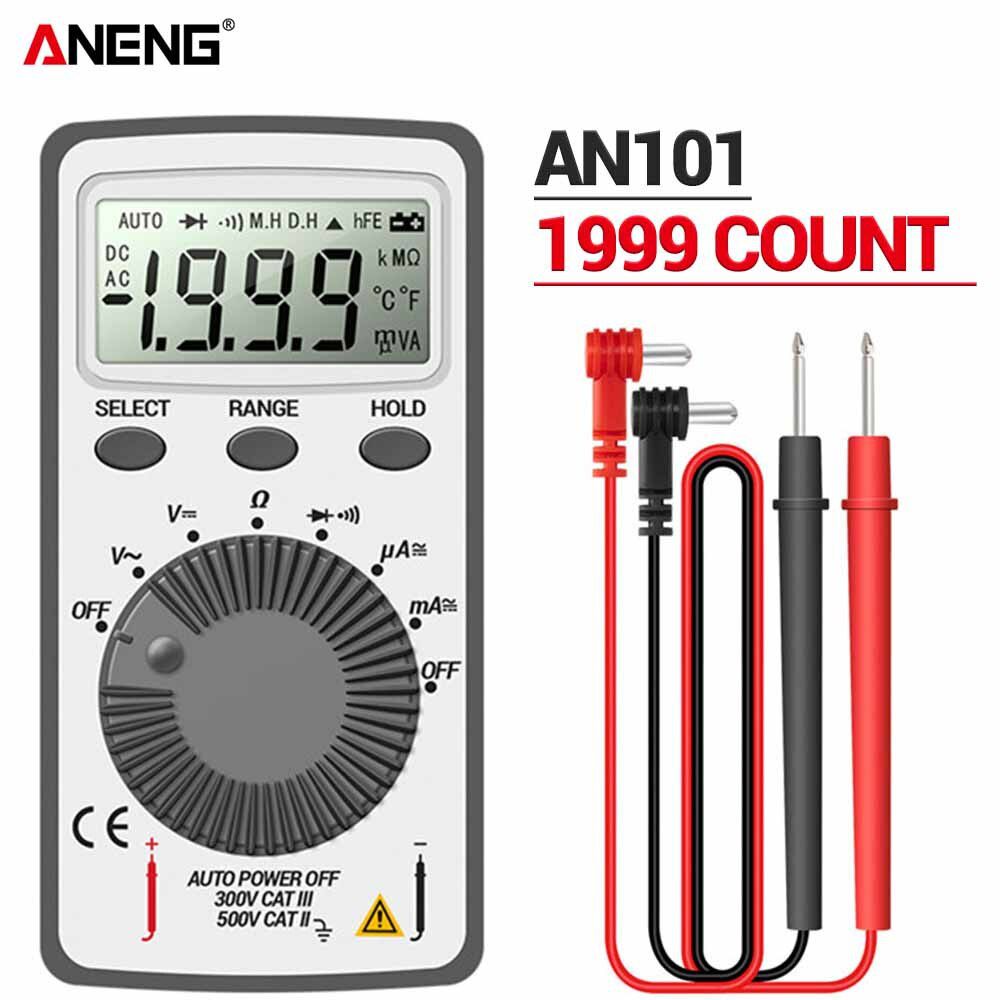

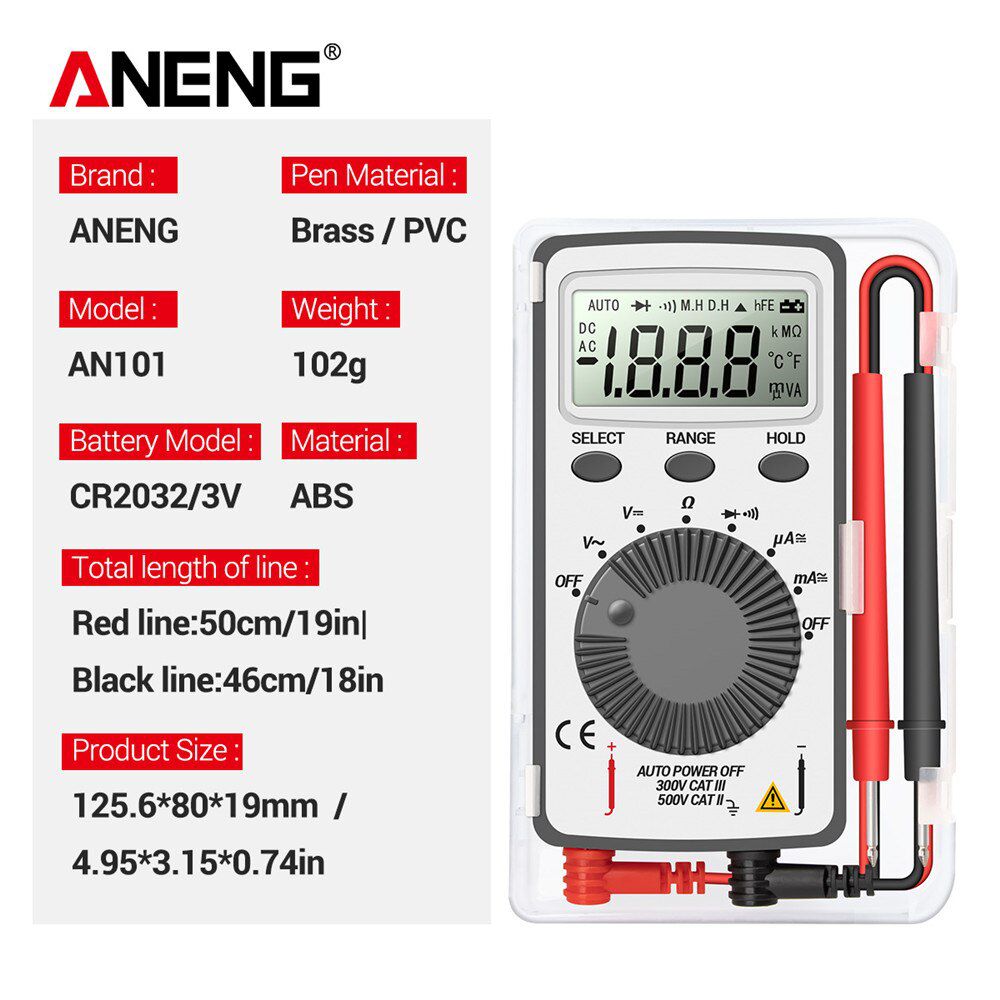

images of AN101 Mini Multimeter 1999 Count DC/AC Voltage Current Automatic Meter Pocket Voltmeter Ammeter Tester with Test Tool
-
Display: LCD, 1999 counts updates 2/sec
-
Polarity Indication: "-" displayed automatically
-
Over-range Indication: "OL" displayed
-
Range select: auto or manual
-
Battery Type: 3V x 2,2032 size (not included)
-
Operation Temperature: 0℃ to 40℃, less than 80%RH
-
Storage Temperature: -10℃ to 50℃, less than 85%RH
DC Voltage (Auto ranging):
-
Range, Resolution & Accuracy
-
200mV, 0.1mV, ±(0.8% of rdg + 5dgts)
-
2V, 1mV, ±(0.5% of rdg + 2dgts)
-
20V, 10mV
-
200V, 100mV
-
600V, 1V, ±(1.0% of rdg + 5dgts)
-
Input Impedance: 10MΩ
-
Overload Protection: 600V DC/AC rms
-
Max. Input Voltage: 600V DC
AC Voltage (Auto ranging):
-
Range, Resolution & Accuracy
-
2V, 1mV, ±(1.2% of rdg + 3dgts)
-
20V, 10mV
-
200V, 100mV
-
600V, 1V, ±(1.2% of rdg + 8dgts)
-
Input Impedance: 10MΩ
-
Frequency Range: 40Hz ~ 400Hz
-
Overload Protection: 600V DC/AC rms
-
Response: Average, calibrated in rms of sine wave
-
Max. Input voltage: 600V AC rms
DC Current:
-
Range, Resolution & Accuracy
-
200µA, 0.1µA, ±(0.8% of rdg + 5dgts)
-
2000µA, 1µA
-
20mA, 10µA
-
200mA, 100µA
-
Overload Protection: F0.5A/600V fuse
-
Max. Input Current: 500mA
-
Voltage Drop: 200µA and 20mA ranges: 20mV
-
2000µA and 200mA ranges: 200mV
AC Current:
-
Range, Resolution & Accuracy
-
200µA, 0.1µA, ±(1.0% of rdg + 5dgts)
-
2000µA, 1µA
-
20mA, 10µA
-
200mA, 100µA
-
Overload Protection: F0.5A/600V fuse
-
Max. Input Current: 500mA
-
Voltage Drop: 200µA and 20mA ranges: 20mV
-
2000µA and 200mA ranges: 200mV
-
Frequency Range: 40Hz ~ 400Hz
-
Response: Average, calibrated in rms of sine wave
Package included:
-
1 x Digital Multimeter (battery is not included)
-
2 x Test Leads
Note:
-
Please allow 0-1cm errors due to manual measurement.
-
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
