AN998 Automatic Digital 6000 Counts Professional Multimeter Eletric Auto Ranging AC/DC Voltmeter Temp Ohm Hz Detector Tool
AN998 Automatic Digital 6000 Counts Professional Multimeter Eletric Auto Ranging AC/DC Voltmeter Temp Ohm Hz Detector Tool
UKOBD2 Provide top quality AN998 Automatic Digital 6000 Counts Professional Multimeter Eletric Auto Ranging AC/DC Voltmeter Temp Ohm Hz Detector Tool, if you need AN998 Automatic Digital 6000 Counts Professional Multimeter Eletric Auto Ranging AC/DC Voltmeter Temp Ohm Hz Detector Tool, or have any questions about AN998 Automatic Digital 6000 Counts Professional Multimeter Eletric Auto Ranging AC/DC Voltmeter Temp Ohm Hz Detector Tool, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

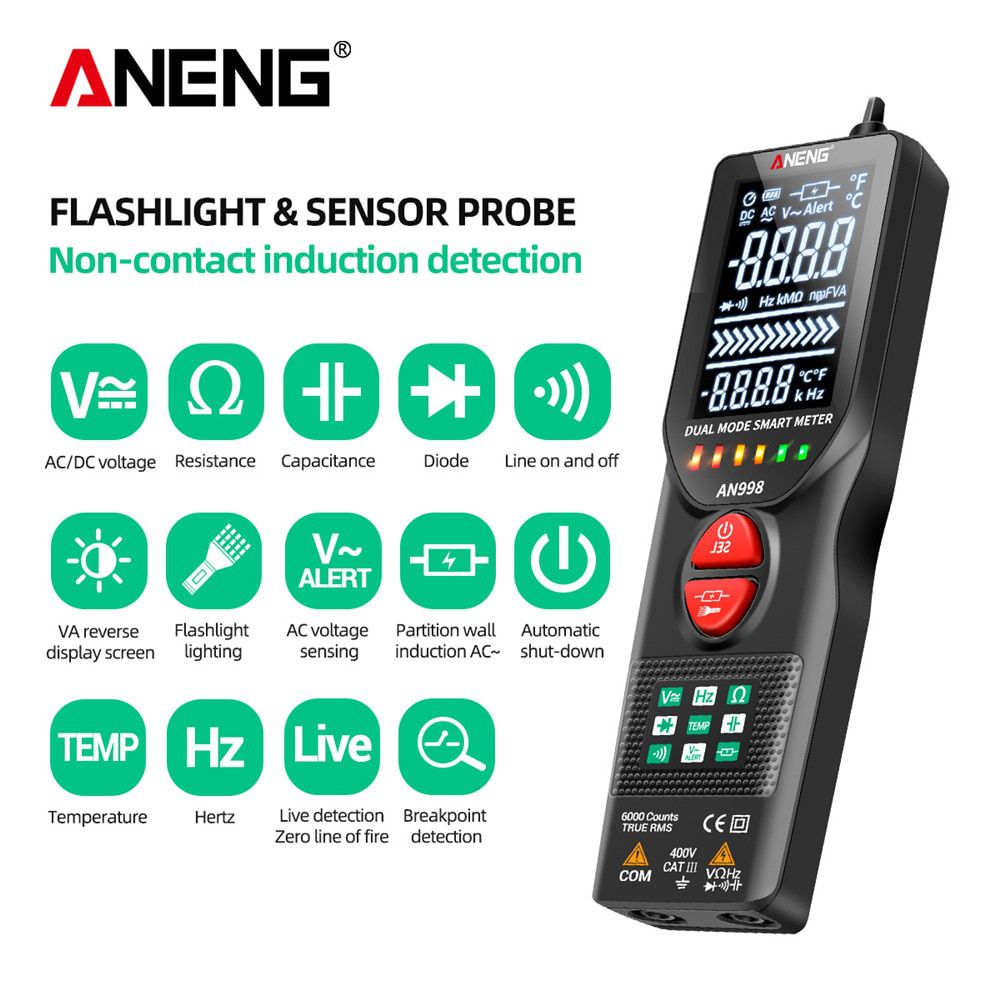

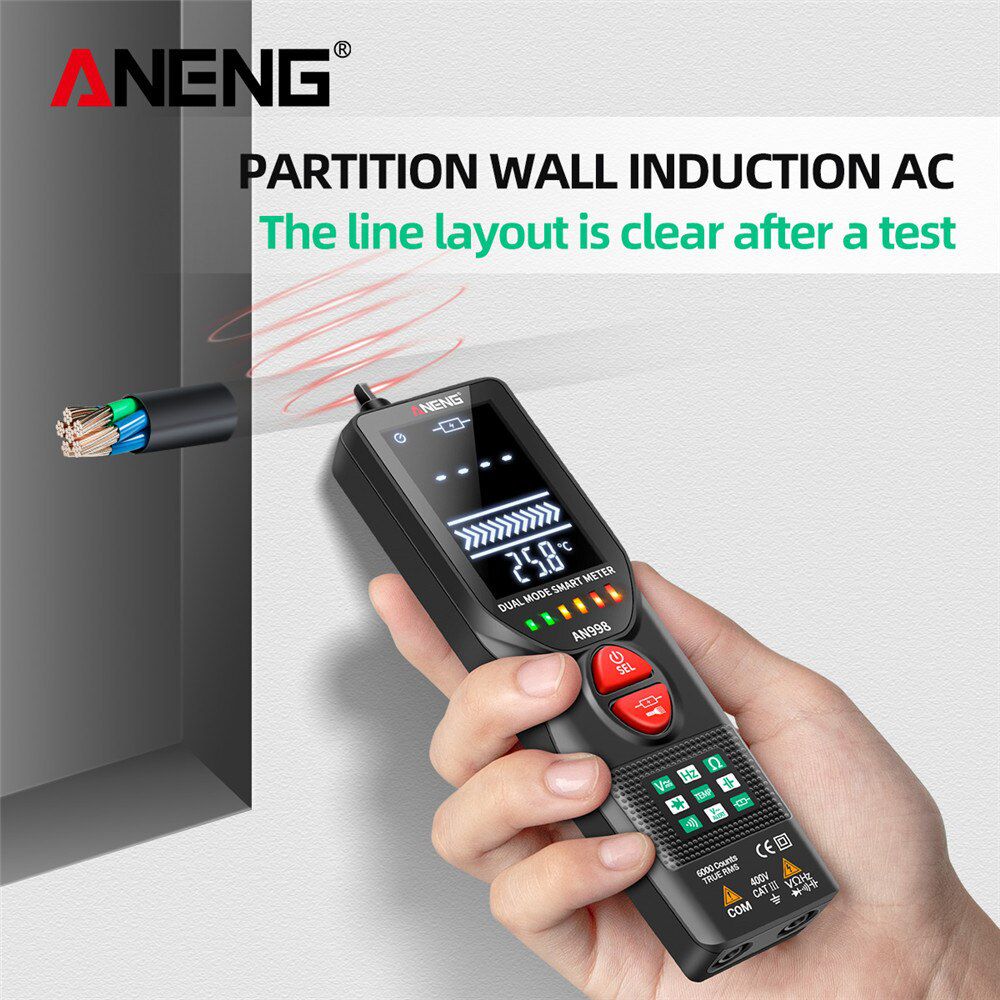

images of AN998 Automatic Digital 6000 Counts Professional Multimeter Eletric Auto Ranging AC/DC Voltmeter Temp Ohm Hz Detector Tool
a.Description:
The meter is a portable,professional measuring instrument,with LCD digital display,and a backlight.Users can read the data easily.One-handed operation of the range switch facilitates measurement,with overload protection and low battery indication.Whether for the professionals,factories,schools,hobbyists and families,it is an ideal multifunction instrument.
-The meter is for the AC DC Voltage,sine wave true RMS,duty cycle,resistance,capacitance,frequency ,measurement and firing line.diode test,temperature measurement.
-Meter is with automatic range function.
-Meter has a reading hold function.
-Meter with automatic shutdown function.
b.Technical Specification:
| Function | Range | Accuracy |
| DC Voltage | 6V | +-(0.5% reading+5 digit) |
|
| 60V | / |
|
| 400V | +-(0.8% reading+5 digit) |
| AC Voltage | 6V/60V | +-(0.8% reading+3 digit) |
|
| 400V | +-(1.0% reading+10 digit) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ | +-(0.8% reading+3 digit) |
|
| 6MΩ/20MΩ | +-(1.2% reading+3 digit) |
| Capacity | 60nF/600nF/6uF/60uF/600uF/6mF | +-(3.0% reading+5 digit) |
|
| 60mF | +-(5.0% reading+5 digit) |
| Frequency | 10Hz | +-(0.8% reading+3 digit) |
|
| 100Hz | +-(0.8% reading+3 digit) |
|
| 1kHz | +-(0.8% reading+3 digit) |
| Feature | Diode Test | Yes |
|
| Circuit on-off Test | Yes |
|
| Live Wall Measurement | Yes |
| Temperature | 0℃-300℃ | +-(1.0%+4d) |
|
| 301℃-1000℃ | +-(1.9%+5d) |
|
| 32℉-600℉ | +-(1.2%+6d) |
|
| 601℉-1832℉ | +-(1.9%+6d) |
c.Package:
1*Multimeter
1*Test lead wire
1*Thermocouple
1*Manual
1*Storage bag
1*Packing box(According to the choice)
