ANCEL BA101 Professional 12V 100-2000 CCA Automotive Load Battery Tester Digital Analyzer Bad Cell Test Tool For Car/Motorcycle
ANCEL BA101 Professional 12V 100-2000 CCA Automotive Load Battery Tester Digital Analyzer Bad Cell Test Tool For Car/Motorcycle, wholesale ANCEL BA101 Professional 12V 100-2000 CCA Automotive Load Battery Tester.
UKOBD2 Provide top quality ANCEL BA101 Professional 12V 100-2000 CCA Automotive Load Battery Tester Digital Analyzer Bad Cell Test Tool For Car/Motorcycle, if you need ANCEL BA101 Professional 12V 100-2000 CCA Automotive Load Battery Tester Digital Analyzer Bad Cell Test Tool For Car/Motorcycle, or have any questions about ANCEL BA101 Professional 12V 100-2000 CCA Automotive Load Battery Tester Digital Analyzer Bad Cell Test Tool For Car/Motorcycle, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of ANCEL BA101 Professional 12V 100-2000 CCA Automotive Load Battery Tester Digital Analyzer Bad Cell Test Tool For Car/Motorcycle
2. Tests batteries on and off the vehicle
3. Accurate results in milliseconds
4. Battery life analysis
5. Analysis results: Good or Replace
6. Large easy to read LCD screen
7. Test results based on JIS, EN, DIN, SAE and IEC Standards
8. Quick test - inputs battery volume (AH), then shows battery status

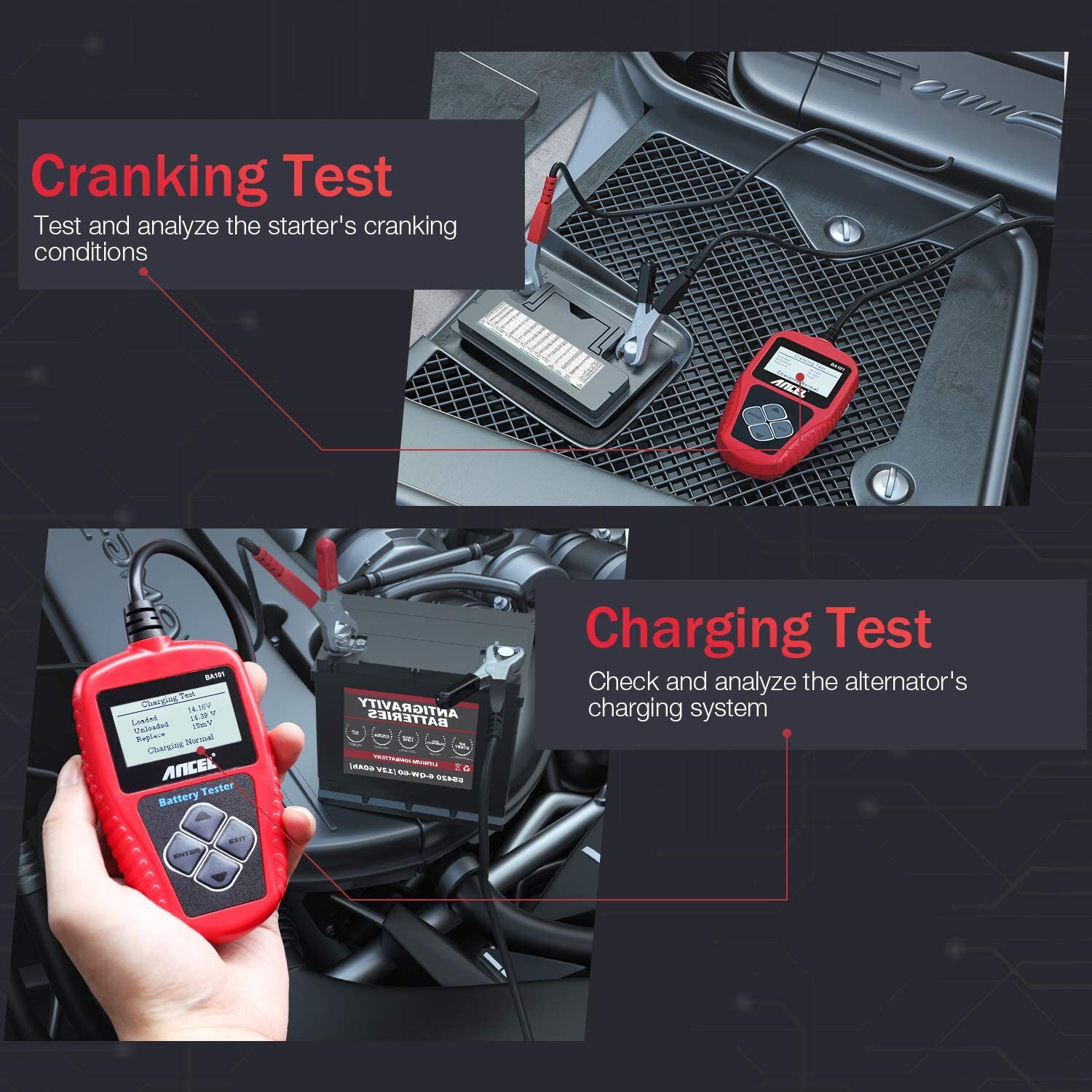

9. Vehicle cranking system test - cranking time, voltage and status
10. Store the testing result and the print function
11. Vehicle charging system test—load voltage, unloaded voltage, ripple status, and charging system status
2. Internal resistance value (m)
3. Life in percentage (%)
4. Cranking system
5. Charging system
6. Operating Parameters:
7. System voltage: 12 Volts
8. Input voltage range: 9V~15V
9. Power requirements: No internal batteries required
10.Capacity: Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating
2.Asian Version: English,Japanese, Korean, Chinese
It tests the battery's CCA (or AH) value, charge (%), voltage (v), internal resistance (Ω), rated, and battery health (%), etc. After a comprehensive analysis of the data, it provides an accurate assessment of whether a battery is good or needs to be replaced. The test result is shown directly by text prompt, giving an accurate display of the battery with percentage and numerical values.
2. No internal battery required and gets power directly from the detected battery.
3. The testing based on battery location ”in-vehicle” or ”out-of-vehicle” makes the test result is more accurate.
4. Connect the red clamp to the positive(+) terminal and the black clamp to the negative(-) terminal.

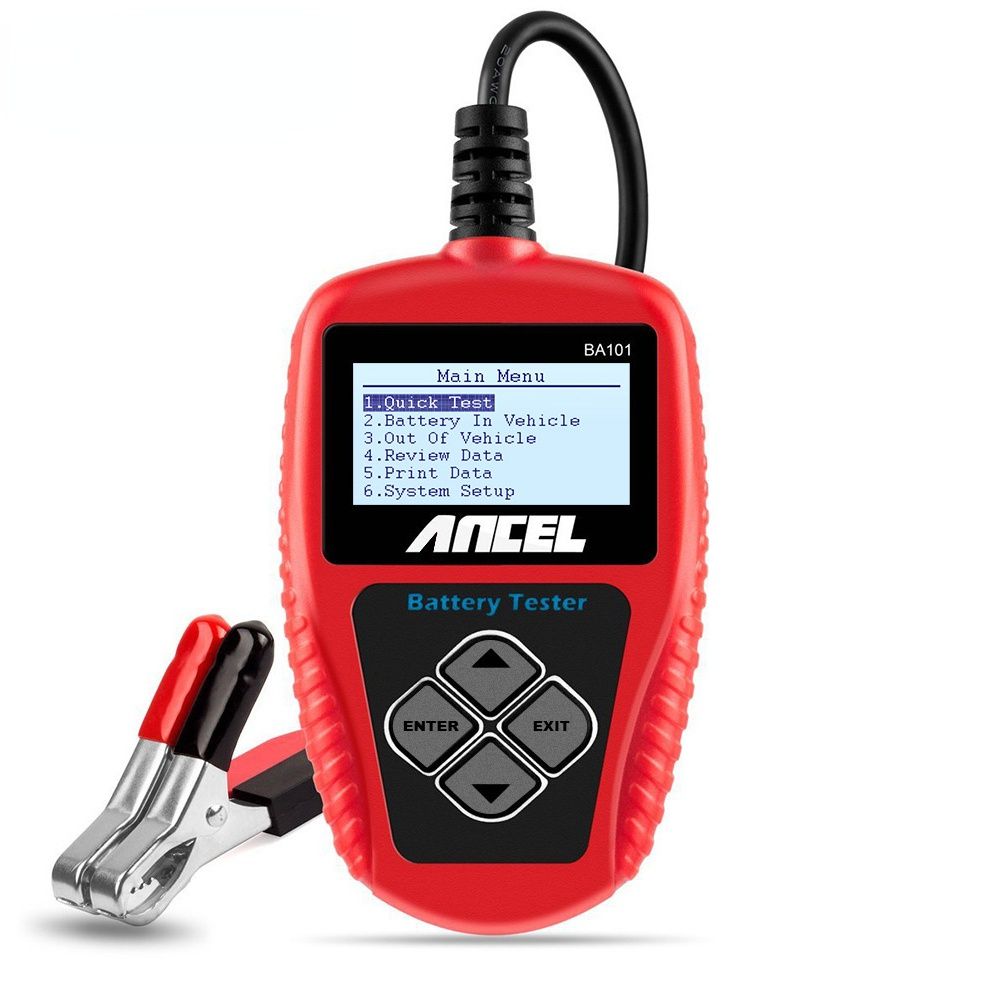

1). Press UP/DOWN key to select the Quick test, then press ENTER key to confirm.
2). Input the rated battery capacity—xx AH, in general, the battery capacity for 12V vehicle is above 30AH.
3). Then press enter key, the testing result will show one of these, as below Battery test result includes 5 types as following:
1* User Manual
1* USB Cable
