Automotive Programming Dedicated Power FOR AUDI/VW/BENZ/BMW Buy AD18 Instead
Automotive Programming Dedicated Power FOR AUDI/VW/BENZ/BMW can be used to protect your ECU from being damaged once the battery voltage is unstable while you doing the ECU programming of your vehicle.
UKOBD2 Provide top quality Automotive Programming Dedicated Power FOR AUDI/VW/BENZ/BMW Buy AD18 Instead, if you need Automotive Programming Dedicated Power FOR AUDI/VW/BENZ/BMW Buy AD18 Instead, or have any questions about Automotive Programming Dedicated Power FOR AUDI/VW/BENZ/BMW Buy AD18 Instead, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

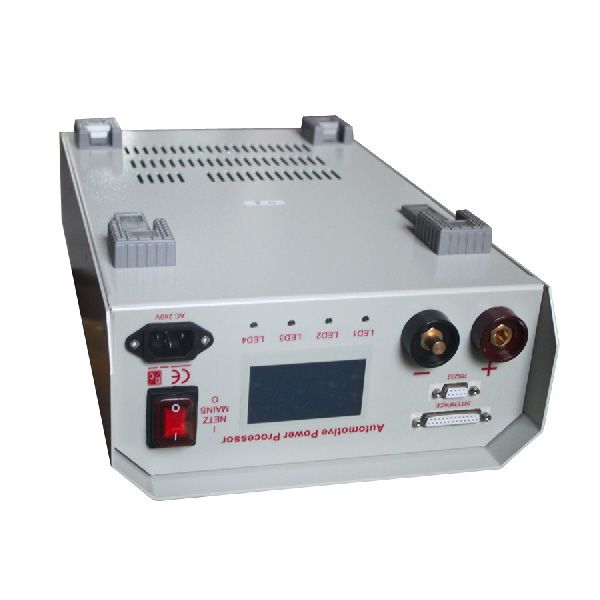

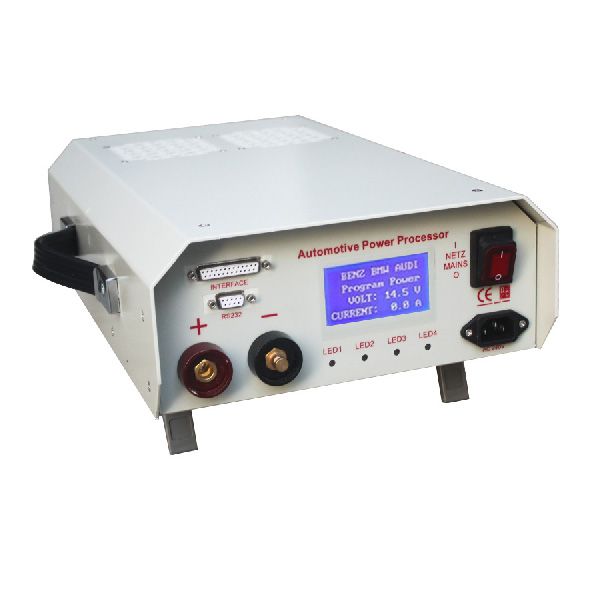

images of Automotive Programming Dedicated Power FOR AUDI/VW/BENZ/BMW Buy AD18 Instead
Automotive Programming Dedicated Power FOR AUDI/VW/BENZ/BMW
Automotive Power Processor Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications (Often times, it takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.)
It can prevents equipment damage from voltage fluctuations and transient surge.
Programming Dedicated Power Functions:
1. Smart Car Program
2. High temperature alarm.
3. Charging dedicated power
4. Short circuit and reverse polarity protection
5. Intelligent charger for motor vehicles starter battery
6. Extensive protection functions and self-protection functions
7. Intelligent charger for motor vehicles starter battery
8. Input voltage 220V only, Output Voltage 14V/100A. (The input voltage of 11V needs to be customized)
Applicable models:
Input Specification:
1. Efficiency: 85%
2. Power Factor: 0.95
3. Frequency range: 40-60HZ
4. Rated input voltage: 220V (+/-20%)
Output Specification:
1. DC voltage: 14.5V
2. Rated current: 0-100A
3. Rated maximum power: 1500W
4. Ripple and noise: 100mVp-p
Protection Specification:
1. Over-voltage: 15V
2. Working temperature: -40 - +85
3. Safety: UL60950, TUV EN60950-1
4. Overload: 90-110% of rated output power
5. Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC
6. Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH
7. EMC: Complies with EN55022, EN61000
Package Including:
1set x Automotive Programming Dedicated Power FOR AUDI/
VW/
BENZ/
BMW Go to Buy: Automotive Programming Dedicated Power FOR AUDI/VW/BENZ/BMW Buy AD18 Instead
