AURO OtoSys IM100 Automotive Diagnostic and Key Programming Tool Wifi Buy Autel MaxiIM IM508 instead

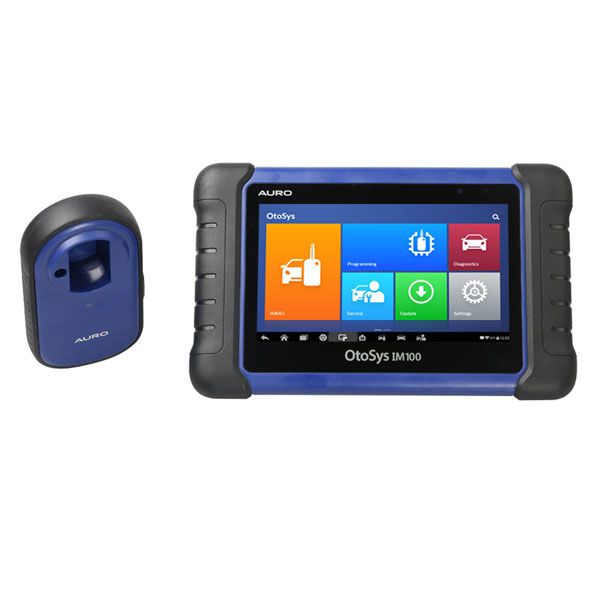

OtoSys IM100 Based on a 7-inch Android touchscreen tablet, and equipped with the key programmer UP200, the OtoSys IM100 provides unparalleled Immobilizer and Key Programming functions as well as OE-level diagnostic functions and services!
UKOBD2 Provide top quality AURO OtoSys IM100 Automotive Diagnostic and Key Programming Tool Wifi Buy Autel MaxiIM IM508 instead, if you need AURO OtoSys IM100 Automotive Diagnostic and Key Programming Tool Wifi Buy Autel MaxiIM IM508 instead, or have any questions about AURO OtoSys IM100 Automotive Diagnostic and Key Programming Tool Wifi Buy Autel MaxiIM IM508 instead, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of AURO OtoSys IM100 Automotive Diagnostic and Key Programming Tool Wifi Buy Autel MaxiIM IM508 instead
AURO OtoSys IM100 Automotive Diagnostic & Key Programming Tool
AURO IM600 is replaced by Autel MaxiIM IM508 and IM608, If you are interested in Autel MaxiIM IM508 , please contact us for price.Thank you :)
OtoSys IM100 from Auro is the ONE tool you need for modern vehicle Key Programming!

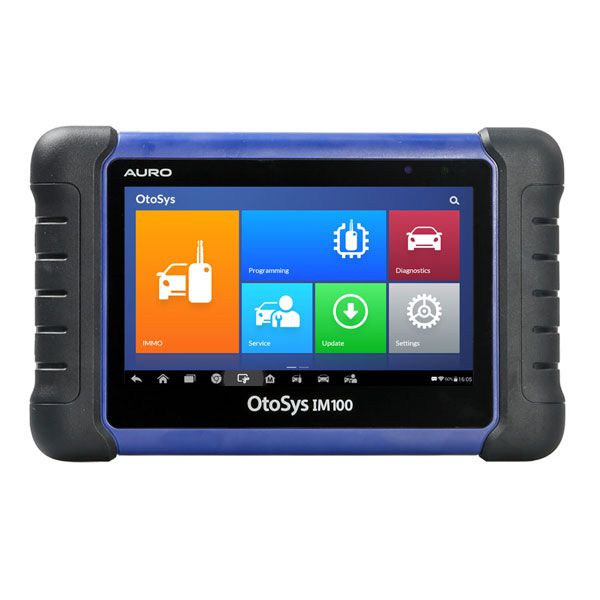

Based on a 7-inch Android touchscreen tablet, and equipped with the key programmer UP200, the OtoSys IM100 provides unparalleled Immobilizer and Key Programming functions as well as OE-level diagnostic functions and services!
Embedded a 1.6 GHz quad-core processor and a 32-gigabyte solid state drive into a 7-inch touchscreen tablet, the compact IM100 allows you to multitask on the open source Android 4.4 operating system with quick responses. Save a lot repair and maintenance time!
Check supported cars list from official website:
http://pro.aurodiag.com/measurecarApp-1-1.html?m=94&operatorType=1
Official website: www.aurodiag.com
Langauge: English
AURO OtoSys IM100 Features:
* Support IMMO functions for different makes and models.
* Equipped with UP200 to support transponder read/write/identification, ECU/EEPROM chip read/write and IMMO password read.
* Display live data is text, graph & analog for easy data review.
* Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
* Support relearn parking brake pad after replacement.
* Support forced regeneration and adjusting injectors.
* Support Steering Angle Sensor (SAS) services.
* Support service mileage and service intervals reset.
* Support TPMS sensor relearn.
* Support battery registration and reset.
* Support online update. 1 Year Free.
Auro OtoSys IM100 Vehicle List
You can also check detail model & function list on official website under SUPPORT->FUNCTION LIST menu
Auto OtoSys IM100 vs. IM600
NOTE:
Special Declaration:
Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release
| OtoSys IM100 | OtoSys IM600 | |
|---|---|---|
| IMMO |
|
|
| Smart Mode (Guided and Automated Key Learning Function) | | |
| Auto Detect Make/Model/Year/System | | |
| Read PIN/CS | | |
| Read PIN/CS (All Keys Lost) | | |
| Key Learning | | |
| IMMO ECU Reset/Adaption | | |
| IMMO ECU Refresh/Coding | | |
| Remote Learning | | |
| AUDI Q5/A4/A5 2015-2017 Read PIN/CS | | |
| BMW FEM/BDC Key Learning and Adaption | | |
| Mercedes Key Learning | | |
| Programming |
|
|
| EEPROM Read/Write | | |
| MCU Read/Write | Basic | Advanced |
| Key Programming | | |
| IC Card Read/Write | | |
| Mercedes Infrared Key Read/Write | | |
| Remote Frequency Detect | | |
| OE-Level Diagnostics |
|
|
| All Systems for Over 80 Makes and Models | | |
| OtoFlash (J2534 ECU Reprogrammer) | | |
| Advanced Service Functions |
|
|
| Oil Serive Reset | | |
| Parking Brake Pad Relearn After Replacement | | |
| Steering Angle Sensor Relearn | | |
| Battery Registration and Reset | | |
| Diesel Particulate Filter Regeneration | | |
| Tire Pressure Monitoring System | | |
| ECU Coding | | |
| VW/Audi Component Protection | | |
| Complete Service Functions | | |
| Tool Features |
|
|
| Built-in Rechargeable Li-ion Battery | 5000 mAh | 15000 mAh |
| Internet Updatable | Wi-Fi | Wi-Fi |
| Multilingual Support | | |
| Limited One Year Warranty | | |
| Touchscreen | 7-inch | 10.1-inch |
| Memory | 32 GB | 64 GB |
| Processor | Quad-core processor | Hexa-core processor |
| Camera | | 8.0 Megapixel |
| Resolution | 1024x600 | 1920x1200 |
AURO OtoSys IM100 Specifications:
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 processor (1.6 GHz) |
| Memory | 1GB RAM DDR3 & 32GB ROM |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0; |
| USB 2.0; | |
| Wi-Fi; | |
| HDMI Type A; | |
| Micro SD card slot (supports up to 32GB); | |
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input/Output | Input: N/A; |
| Output: buzzer; | |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery; |
| Charges via 5 VDC power supply; | |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 55°C(32 to 131°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight | 788 g (2.42 lb.) |
| Supported Automotive | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, |
| SAE-J1850 VPW, SAE-J1850PWM, | |
| ISO11898 (Highspeed, Middlespeed, Lowspeed and | |
| Singlewire CAN, fault-tolerant CAN), | |
| SAE J2610, GM UART,UART Echo Byte Protocol, | |
| Honda Diag-H Protocol, TP2.0, TP1.6 |
Package includes:
1pc x OBD II Cable
1pc x Mini USB Cable
1pc x USB External Power Adaptor
1pc x Quick Guide
1pc x UP200
1pc x APB001 – EEPROM Adaptor
1pc x APB002 – 68HC908 Adaptor
1pc x APA002 – EEPROM Socket
1pc x APA001 – EEPROM Clamp Integrated MC9S12 Cable
Auro OtoSys IM100 & IM600 Upcoming Updates:
FAQs:
Q: What is the vehicle coverage of Auro tools?
A: By now, Auro tools provide immobiliser functions for over 50 USA, Asian, European vehicle makes and models. The vehicle coverage expands with regular updates.
Q: How to learn a key to a vehicle?
A: To learn a key to a vehicle, usually you need to use the IM100/IM600 to read the password (i.e. PIN code or other similar code) from the vehicle, then log in the immobiliser system with the password and follow the instructions on the IM100/IM600 to complete the operation.
Q: Problems & Solutions: Software version?
A:
Problem description:
The vehicle coverage chart on the website lists that the tool is compatible with my vehicle, but I don’t see it on the tool.
Solution:
Ensure that your tool has the latest software. Update instruction: Power on your IM100/IM600, connect it to the Internet via Wi-Fi and click the Update icon in the OtoSys system to check if there is any update, and then click the Update button if there is an update available, your device will be automatically updated.
