Autel MaxiDiag Elite MD701 Four System with Data Stream Asian Vehicle Diagnostic Tool Update Online

Autel MaxiDiag Elite MD701 Four System with Data Stream Asian Vehicle Diagnostic Tool is original tool, can support most of Asia vehicles, it support four systems( Engine, Transmission, ABS and Airbag) and online update.

UKOBD2 Provide top quality Autel MaxiDiag Elite MD701 Four System with Data Stream Asian Vehicle Diagnostic Tool Update Online, if you need Autel MaxiDiag Elite MD701 Four System with Data Stream Asian Vehicle Diagnostic Tool Update Online, or have any questions about Autel MaxiDiag Elite MD701 Four System with Data Stream Asian Vehicle Diagnostic Tool Update Online, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

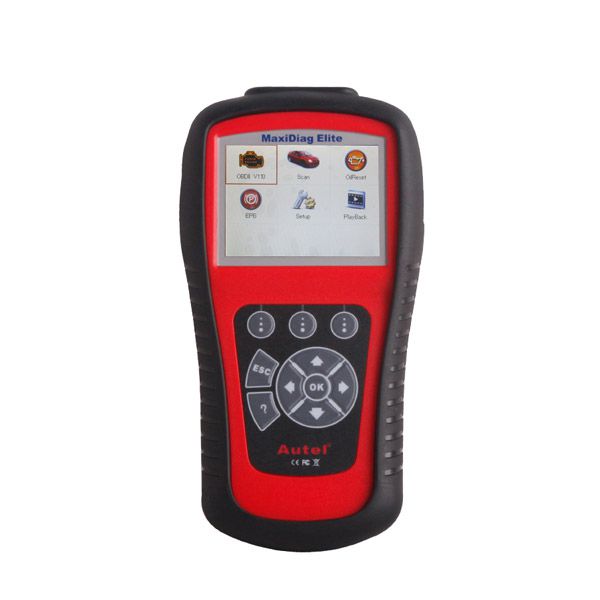

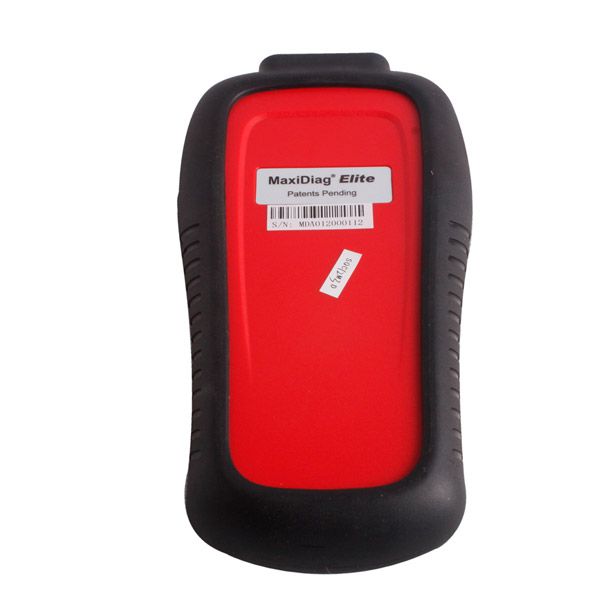

images of Autel MaxiDiag Elite MD701 Four System with Data Stream Asian Vehicle Diagnostic Tool Update Online


Autel MaxiDiag Elite MD701 Four System with Data Stream Asian Vehicle Diagnostic Tool

Autel MaxiDiag Elite MD701 with Data Stream is the most advanced and multifunctional scan tool powered by its exclusive technology, it support most of Asia vehicles four system(Engine, Transmission, ABS and Airbag). You can also use this tool to read out your data stream and print out the data via PC-Link.

Language: English Only
Supported Vehicle List:
Nissan, Infiniti, Toyota, Lexus, Scion, Honda, Acura, Subaru, Mitsubishi, Suzuki, Isuzu, Hyundai, Kia, Daewoo, Mazda, Holden
Feature & Function:
1. One tool can do it all-reads and clears trouble codes on either the basic 4 systems (engine, transmission, ABS and airbag) or all the systems
2. Turns off engine, transmission, ABS, and airbag warning lights for all major Asian vehicles
3. Supports all 10 test modes of the latest J1979 OBD II test specs, including Read Codes,Erase codes, Live Data, Freeze Frame, I/M Readiness, O2 Monitor Test, On-Board
Monitor Test, Component Test, and Vehicle Information
4. Enhanced OBD II Mode 6
5. Reads live datastream and freeze frame
6. OBD II code tips guide technicians to the root cause of trouble code faster
7. Data graphing
8. One year free software upgrade
9. Prints data via PC
10. One year warranty
Specification:
Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 °F)
Storage Temperature: -20 to 70°C (-4 to 158 °F)
External Power: 12.0 to 18.0 V power provided via vehicle battery or adapter
Length\Width\Height: 212 mm (8.35”)\110.5 mm (4.35”)\37.5 mm (1.48”)
Main Unit Weight: 0.28kg(without wire) 0.484kg(with wire)
Package list:
1pc x MaxiDiag Elite MD701 Main unit
1pc x SD Card
1pc x OBDII Cable
1pc x USB Cable
1pc x CD
1pc x User's Manual
1pc x Carry Case

MD701 code scanner for 4 system:

Go to Buy: Autel MaxiDiag Elite MD701 Four System with Data Stream Asian Vehicle Diagnostic Tool Update Online

Tags: autel maxidiag elite md701, md7001 code scanner for 4 system
