Autel TPMS Diagnostic And Service Tool MaxiTPMS TS601 Free Update Forever

Autel TPMS Diagnostic and Service Tool MaxiTPMS TS601Free update on the internet via USB port.Incredibly easy to use with intuitive navigation and step-by-step on-screen instructionsOn-screen code definitions

UKOBD2 Provide top quality Autel TPMS Diagnostic And Service Tool MaxiTPMS TS601 Free Update Forever, if you need Autel TPMS Diagnostic And Service Tool MaxiTPMS TS601 Free Update Forever, or have any questions about Autel TPMS Diagnostic And Service Tool MaxiTPMS TS601 Free Update Forever, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

images of Autel TPMS Diagnostic And Service Tool MaxiTPMS TS601 Free Update Forever

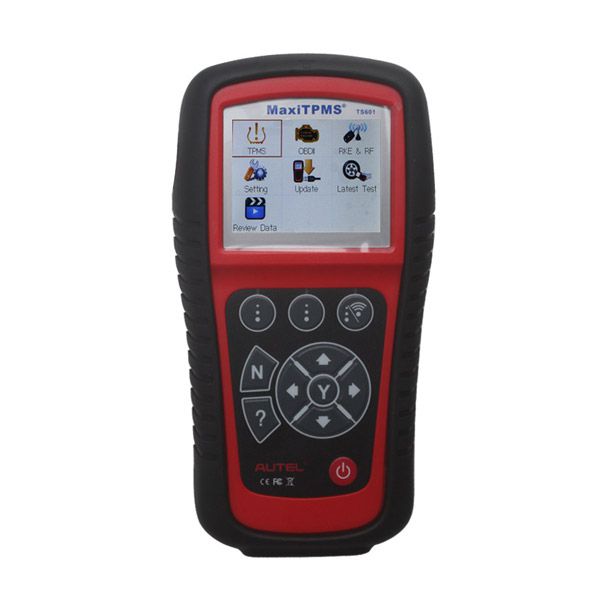

Autel TPMS Diagnostic and Service Tool MaxiTPMS TS601
Top 7 Reasons To Get MaxiTPMS TS601:
1. Free update on the internet via USB port.
2. Automatic power-off to preserve battery life
3. Ergonomic design features strong housing and protective rubber boot
4. On-screen code definitions
5. Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions
6. Proper LF signal to prevent being fooled by other RF signals
7. Built-in rechargeable Li-polymer battery
Notice: Only English supported
MaxiTPMS TS601 Features:
Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals
Receives both 315MHz and 433MHz signals
Reads / writes sensor ID from vehicle ECU
Reads / clears codes of TPMS system and resets malfunction indicator light
Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
Retrieves TPMS ECU information
Performs actuation tests and special functions
Programs vehicle ECU to learn sensor IDs and positions
Capable of programming single tires for Chrysler, Renault, and Citroen
Checks Remote Keyless Entry (Key FOB) for transmissions
Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
Pre-selection process offers faster activation and diagnostics
Provides visual and audible responses to confirm sensors are working properly






Autel TS601 Specifications:
Display TFT color display (320 x 240 dpi)
Power 3.7V Li-polymer battery
Operating Temperature 0 to 50°C (32 to 122 °F)
Storage Temperature -20 to 70°C (-4 to 158 °F)

Autel TPMS Tool series TS401, TS501 and TS601 Comparison:



Autel TS601 vs. TPMS PAD vs. MaxiSYS MS906TS

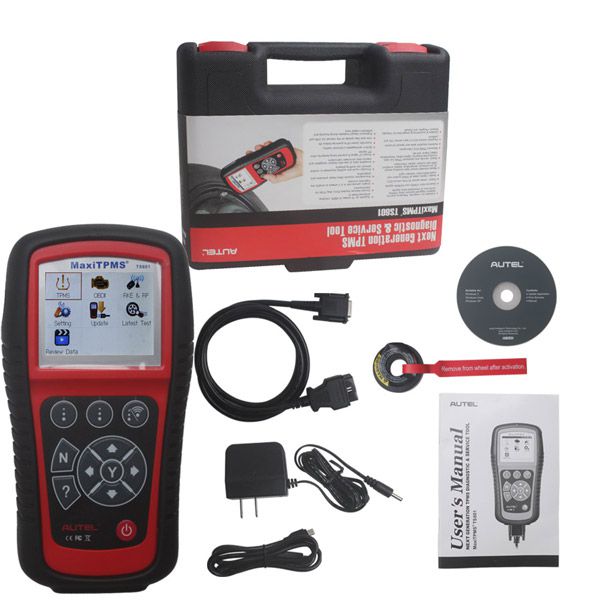

Package List:
1 x TS601 main unit
1x Carry case
1x SD Card
1x CD
1x Charger
1x Magnet

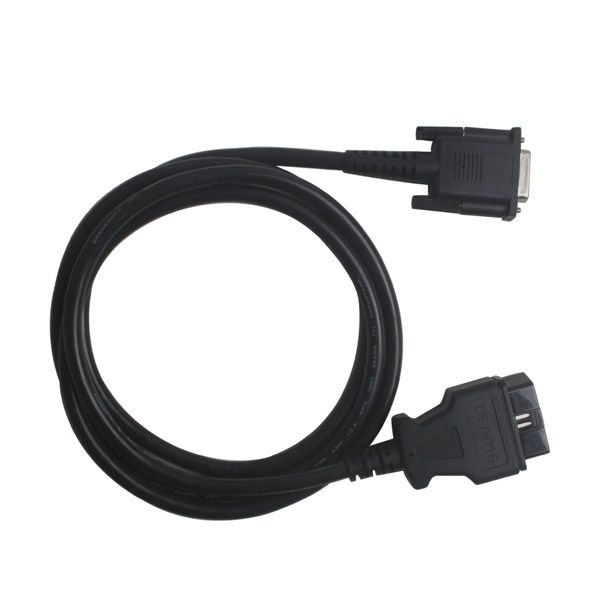

1x OBDII Cable
1x User Manual
1x USB Cable
