AUTOOL AST609 Car Pulsating Brake Oil Changer Single Clutch Slave Cylinders Brake Extractor Pulsating Fuel Pump Replacement Tool
AUTOOL AST609 Car Brake Oil Changer Pulsating Oil Pump Change Replacement Tool Brake Fluid Bleeder Extractor Exchanger 110V 220V, AUTOOL AST609 brake fluid exchanger is available in standard and master modes
UKOBD2 Provide top quality AUTOOL AST609 Car Pulsating Brake Oil Changer Single Clutch Slave Cylinders Brake Extractor Pulsating Fuel Pump Replacement Tool, if you need AUTOOL AST609 Car Pulsating Brake Oil Changer Single Clutch Slave Cylinders Brake Extractor Pulsating Fuel Pump Replacement Tool, or have any questions about AUTOOL AST609 Car Pulsating Brake Oil Changer Single Clutch Slave Cylinders Brake Extractor Pulsating Fuel Pump Replacement Tool, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of AUTOOL AST609 Car Pulsating Brake Oil Changer Single Clutch Slave Cylinders Brake Extractor Pulsating Fuel Pump Replacement Tool
Brake fluid is taken from its container by a pump operating at up to 3.0 bar pressure and is continuously pumped into the brake fluid reservoir. The individual wheel brake cylinders can then be drained of their used brake fluid until the new brake fluid comes through.You thus avoid the regular emptying and filling operations, in contrast to conventional systems and also avoid any resulting water absorption in the brake fluid. The pump used to fill the brake fluid reservoir is equipped with pressure monitoring Should it not be possible to build pressure or should the pump pull in air , the pump switches itself off automatically.
AUTOOL AST609 brake fluid exchanger is available in standard and master modes. Please select either mode before starting the fluid exchange. (Standard Mode Pressure:0-2.5 bar; Master Mode Pressure:0-3 bar)
AUTOOL AST609 brake fluid bleeder exchanger can both support 12V battery and 110V or 220V socket supply.

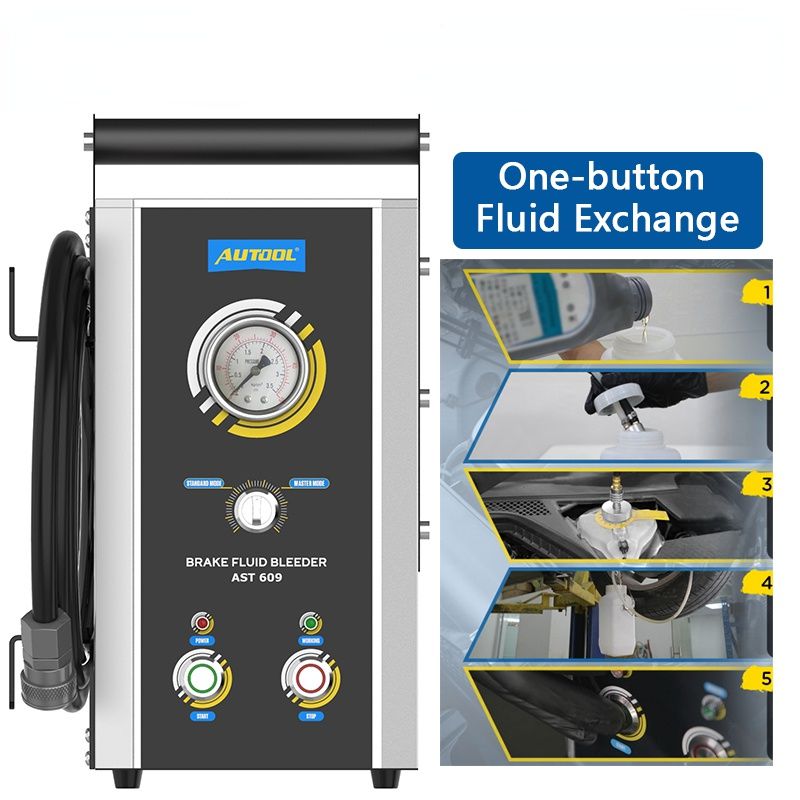

Step 1: Pour new brake fluid into the flling bottle
Step 2: Connect the suction hose and pressure balance hose to the filling bottle.
Step 3: Connect the filling hose to the brake fluid cylinder via the adapter.
Step 4: Connect the recovery bottle to the brake fluid sub-cylinder.
Step 5: Select standard mode or master mode. One-button start, then wait for the fluid exchange to be completed.
Equipped with 7 different types of adapters and toolboxes, suitable for various car models of Europe, America, Asia, etc.
1、Avoid all contact with brake fluid.
2、Wear safety goggles to minimize the risk of injury from splashing.
3、Wear suitable , protective gloves to minimize the risk of injury caused by skin contact.
4、In case of skin contact with brake fluid , wash off immediately with water.
5、Remove contaminated clothing.
6、Do not carry any rags or anything else that has been in contact with brake fluid in you clothes.
7、Before any work is performed on the brake maintenance device , disconnect the power cord and plug.
8、Only plug the brake maintenance device in , when the device is turned off .
9、Do not make design changes to the brake maintenance device.
10、Before each use . make sure to check the brake maintenance device . its hoses . cables and connectors . If there is any damage , do not use the brake maintenance device . Repairs are to be carried out by a specialist . Never open the brake maintenance device.
11、The brake maintenance device must not be damp and should not be operated in a humid environment.
1* AUTOOL AST609 Pulsating Brake Fluid Exchanger Main Unit
1* Power cord
1*Adapters set
1* New fluid bottle
1* Old fluid bottle
2* Clips
1* Transformer
1* User manual
