AUTOOL BT280 Car Electric System Tester With 2.4-Inch LCD Multi-Language Diagnosis Tool automotive electrical circuit Tester CE
The AUTOOL BT280 Electric System Tester is the newest generation intelligent Electrical System Circuit Tester with 2.4-inch large-size LCD screen display. It is dedicated to testing all 9V-30V vehicle electrical systems. BT280 is Convenient, Fast, and Intelligent
UKOBD2 Provide top quality AUTOOL BT280 Car Electric System Tester With 2.4-Inch LCD Multi-Language Diagnosis Tool automotive electrical circuit Tester CE, if you need AUTOOL BT280 Car Electric System Tester With 2.4-Inch LCD Multi-Language Diagnosis Tool automotive electrical circuit Tester CE, or have any questions about AUTOOL BT280 Car Electric System Tester With 2.4-Inch LCD Multi-Language Diagnosis Tool automotive electrical circuit Tester CE, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of AUTOOL BT280 Car Electric System Tester With 2.4-Inch LCD Multi-Language Diagnosis Tool automotive electrical circuit Tester CE
① LCD: (320*240 DPI) TFT color display ② Working temperature: 0-60°C (32-140 F°) ③ Storage temperature: 40-70°C (-40-185 F°) ④ External power supply: 12V or 24V Powered by battery ⑤ Minimum working voltage: 9V ⑥ Maximum working voltage: 30V ⑦ Maximum measuring voltage: 150V ⑧ Minimum measuring voltage: 0.1V ⑨ Resistance measurement range: 1 ohm~200K ohm ⑩ Current measuring range: 0~18A Maximum continuous current: 18A
AUTOOL BT280 Electric System Tester is covered with comprehensive parameters of Multimeter, it can quickly test and automatically identified the Voltage, resistance, Positive and Negative poles of the tested component, which brings the user a lot of conveniences.
AUTOOL BT280 is not only able to display the parameter curve diagram of the tested component, such as voltage, frequency, time, etc, but also can test the common automotive relay, like 5-terminal relays, and 4-terminal relays.
It can generate "Active" signals for components, such as lights, motors, and other on-board electronic devices. Also different pulse signals can be output to the injector, which provides 4 pulse modes to better detect the condition of the injector.
Capable of setting 0-5V output voltage, used to verify the wiring condition of the tested component. Equipped with voltage setting alarm. If a short circuit or fault causes the voltage to be greater than or less than the set value, the device will alarm.

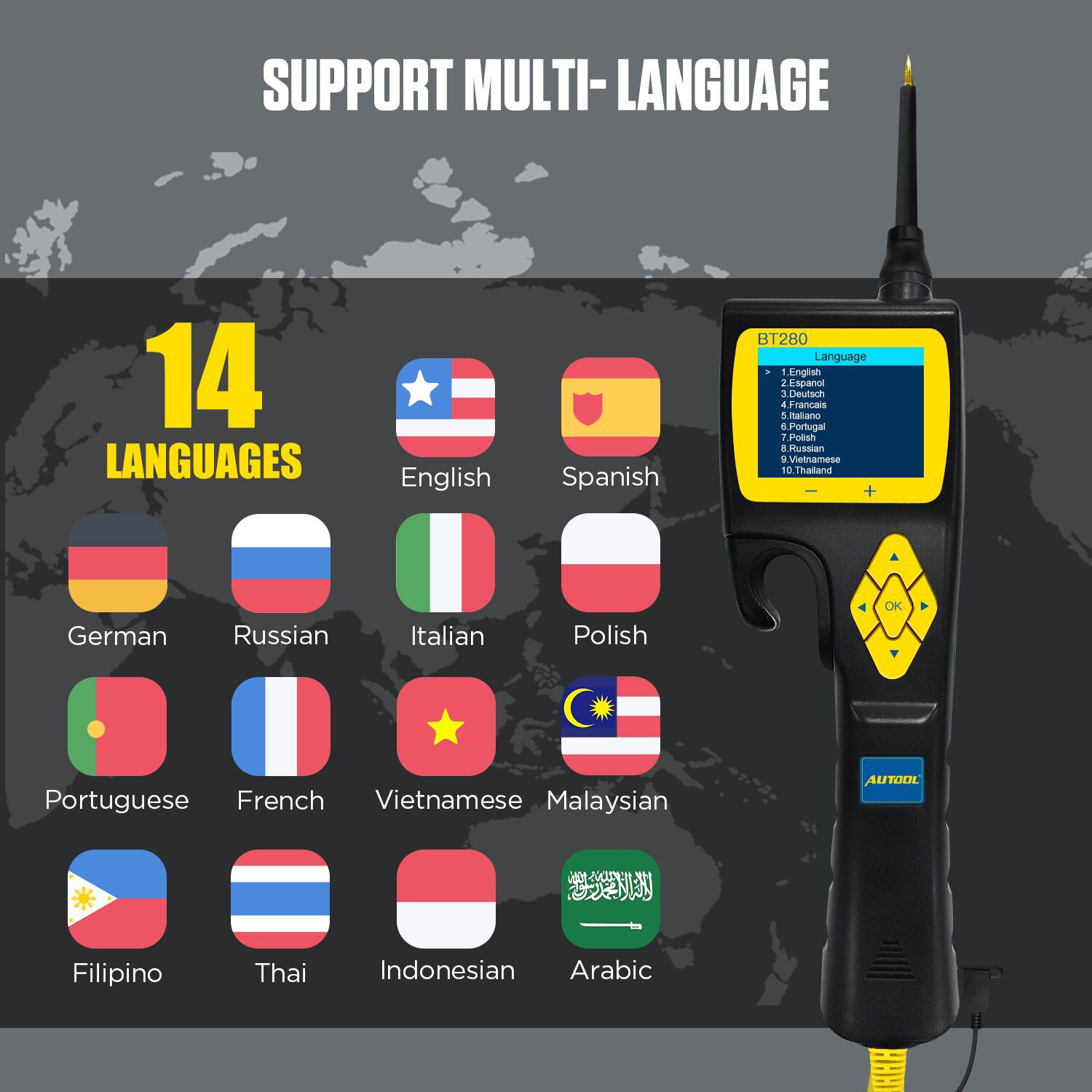

14 languages supported, English, Spanish, German, Russian, Italian, Polish, Portuguese, French, Vietnamese, Malaysian, Filipino, Indonesian, Arabic and Thai.

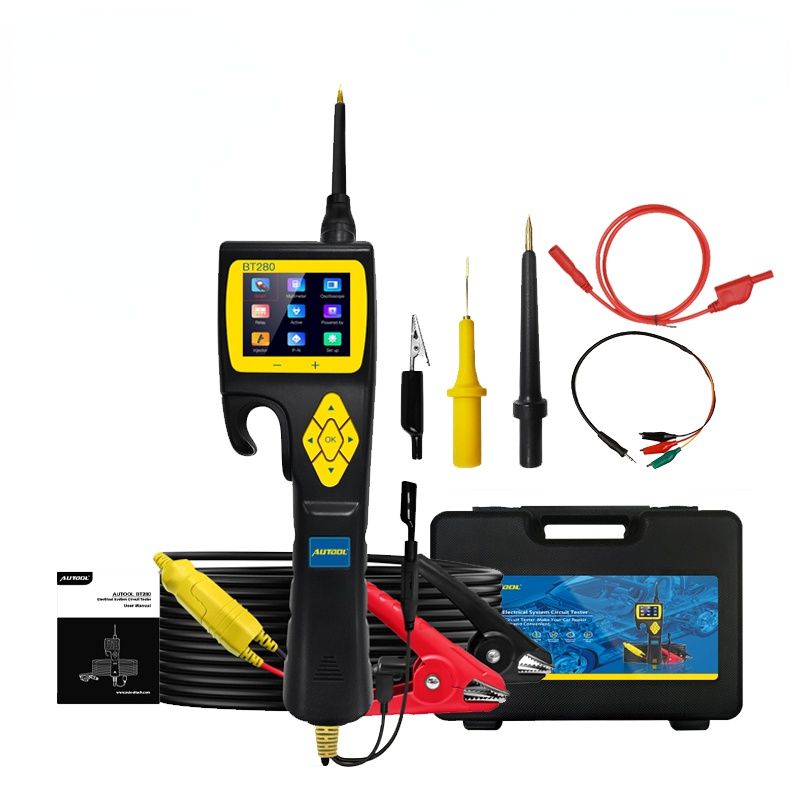

1pc* AUTOOL BT280 Electric System Tester main unit 1pc* Solid copper test probe tip 1pc* Extension connection line 1pc* Battery clamp 1pc* Relay test line 1pc* Probe adapter 1pc* 25Amp fuse 1pc* User manual
