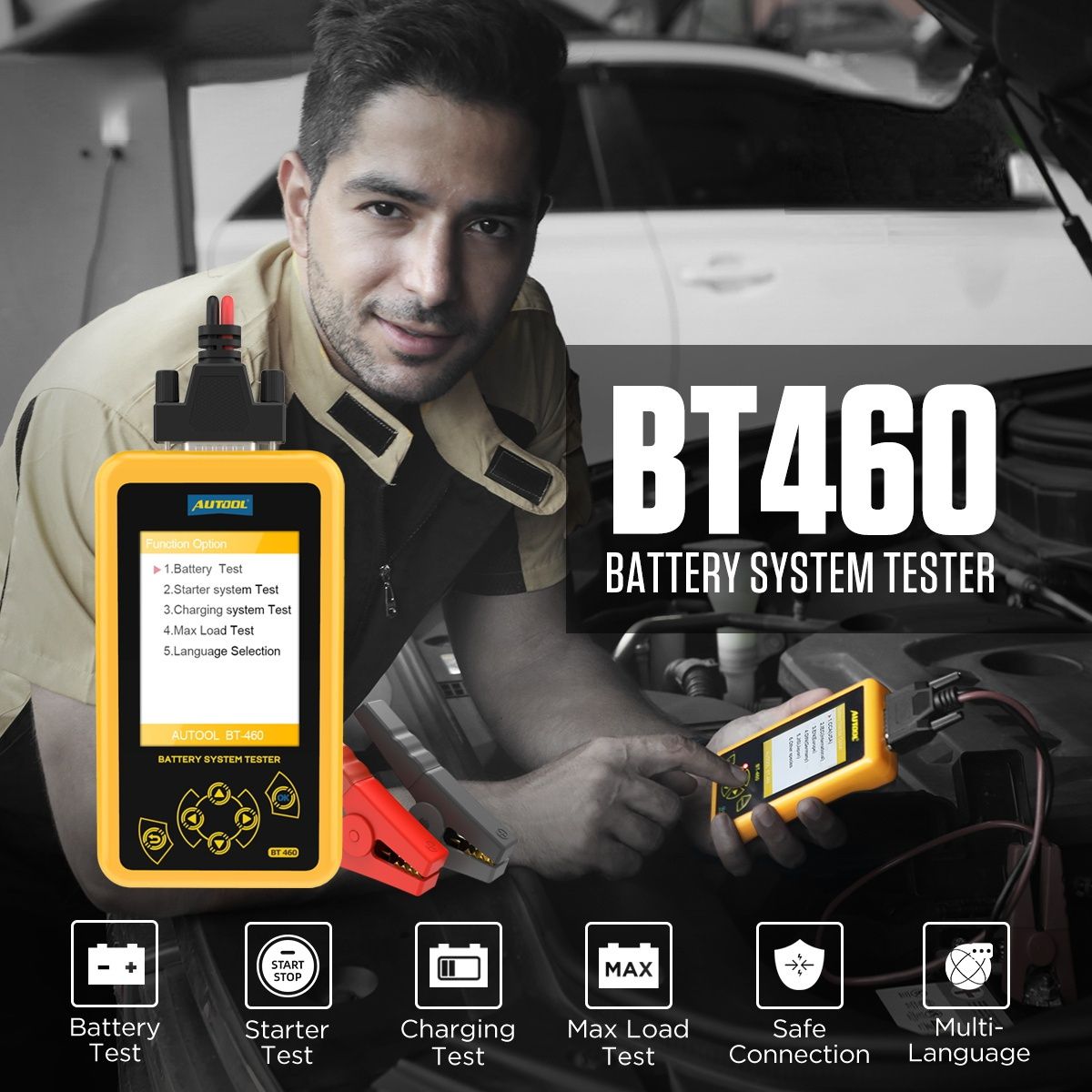

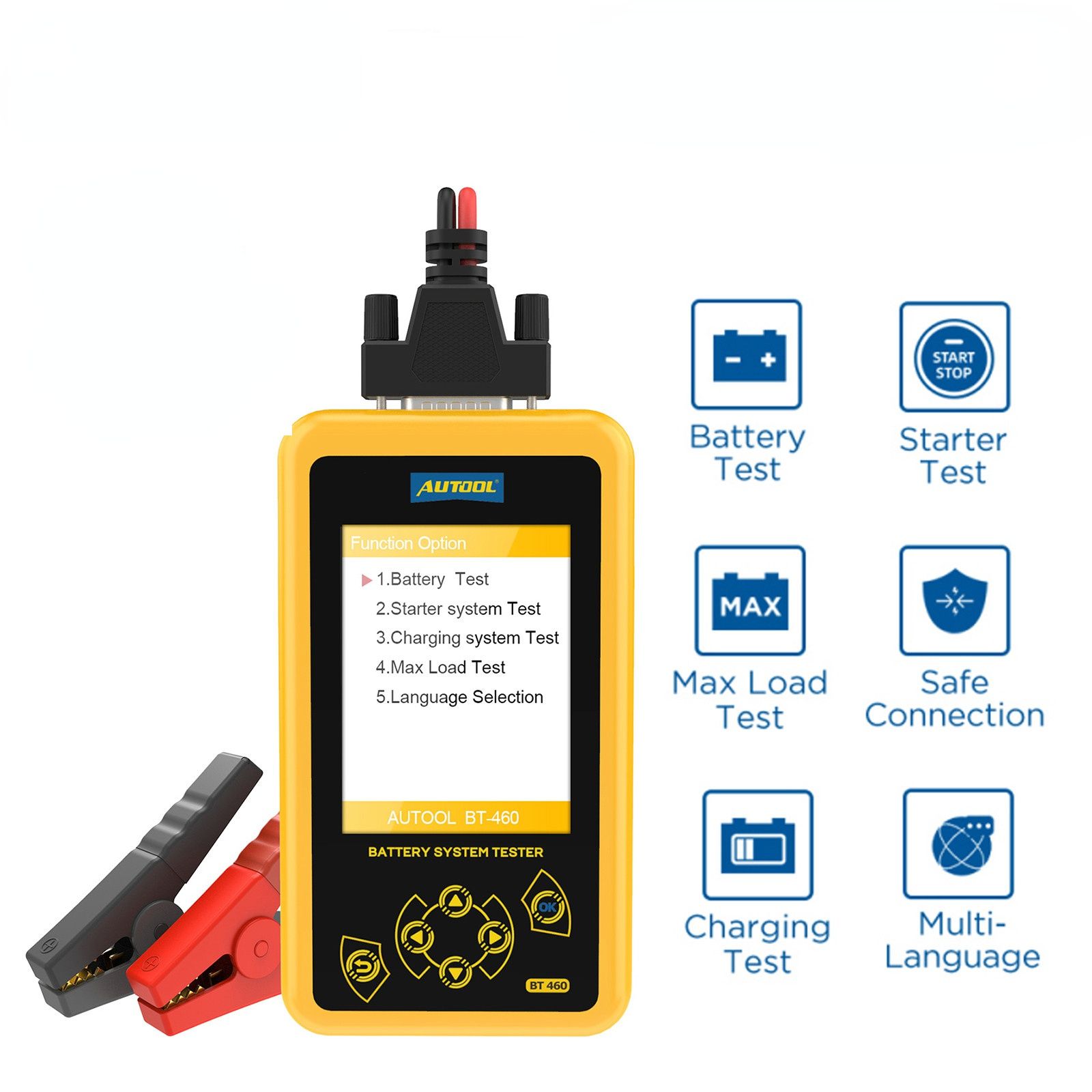

AUTOOL BT460 12V/24V Car Battery Load Tester is dedicatedly developed to test 12V/24V regular flooded, automotive lead-acid batteries, AGM flat plate, AGM spiral, GEL, and EFB batteries. Applying the advanced conductance testing technology, BT460 can give you accurate testing results in seconds. Fit in your glove box, It provides a handy device for automobile factory, garage, auto battery manufacturer, Pros and DIYers with a quick, simple and cost-effective solution.

【BATTERY & CRANKING & CHARGING & MAX LOAD TEST】: Not only is it convenient for car owners to use it for daily servicing, but it can also help pros test the voltage of the battery under loading through a load test. With this battery tester, you can check the overall health of the battery, and run a complete system charging test.

【PROFESSIONAL& SAFETY】：Test standards include most battery standards in the world, CCA IEC EN DIN JIS and OTHER SPECIES, which covers from 30- 1700 CCA, 30-220 AH. With Polarity Reverse Protection, both the battery and device won’t be damaged.

【HD COLOR SCREEN】：Unlike most monochrome LCD screens on the market, the AUTOOL BT460 12V/24V Car Battery Load Tester is equipped with a color HD screen that is easy to read even in direct sunlight.

【MULTI-LANGUAGE Support】: 12 Languages are available. Available in English, Spanish, German, French, Russian, Portuguese, Chinese, Turkish, Russian, Japanese, Thai and Korean. Other languages can be customized.

【3-YEAR WARRANTY】： For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

Feature:

1. Test all automotive(include 12V cars and 24V heavy trucks) cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.

2. Directly detect bad cell battery.

3. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.

4. Directly test the battery with loss of electricity, no need to full charge before testing.

5. Testing standards include currently the world's majority of battery standards, CCA, JIS, DIN, IEC, EN, SAE, GB.

6. 4'' large colorful TFT display, provide gentle and clear reading experience

Battery Test

Calculate the actual cold-start battery capacity and aging degree, giving reliable analysis basis for battery testing and maintenance. When the battery is aging, it will notify the user to replace the battery in advance

Starting Test

The main purpose is to know whether the starting, motor is working properly, by testing the actual starting

current and voltage of the starter motor.

Four Functions Test Operation Steps of AUTOOL BT460 12V/24V Car Battery Load Tester

Step 1. Connect the 12V battery, red clips to positive pole and black clips to negative pole.

Step 2. Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within few seconds.

Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.

Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.

Step 5. Max Load Test: Select the max load test function, turn on the car's electrical appliances, start the car engine and click OK.

Technical Parameters

Measure Standard Measure Range
CCA 30-1700
JIS 26A17--245H52
DIN 100-2200 IEC 100-2200
EN 100-2400
SAE 100-2400
GB 30-220Ah
BCI 100-2400
MCA 100-2400
CA 100-2400

Packing List

1pc* AUTOOL BT460 12V/24V Car Battery Load Tester
2pcs* Full copper core kelvin clip
1pc* Manual
