Description:

AUTOOL Upgraded SDT 206 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on the pipe systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Crankcase system test,Car Sealing Test, Fuel Tank System Test, Turbo System Test,Various Pipe Fittings Test.

Main Unit Structure :

SDT 206 is designed for detecting the leakage of pipe systems on cars, motorcycles, such as fuel pipe, air intake system and cooling tank.

Cautions :

Maintenance With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the service life of smoke generated part, so please change smoke and oil regularly.

1. When you use this detector the first time, please fill 20-30ml oil, not beyond this range.
2. Fresh oil can be filled with only when the smoke is light, and it can’t be filled over 15ml every time.
3. Before filling fresh oil, please pour out the remaining oil in the detector.
4. Please replace the detector

Operation

1. Open the engine cover, and hang the detector in the cover.
2. Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
3. Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4. Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5. Turn on the power switch, and the detector starts to work.
6. In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7. After leak detection, please connect well the wires and pipe.

How to do leakage test?

1 Turn on device then block smoke exhaust port on SDT 206, record pressure gauge value .
2 Connect smoke exhaust port to the pipe system you want to test .
3 Wait for a while. Pressure gauge value decrease means the pipe system have leakage; pressure gauge value show "0" means diameter of leakage point is more than 0.3mm

Notes:

* Please do leak detection away from smoke-sensitive parts.
* Do not run the detector over 8 minutes. It needs interval rest.
* The detector has protector. If it exceeds working limit, it will power off automatically. In this
condition, please operate it later.
* The round part of this detector is with temperature, be careful to avoid scalding injury

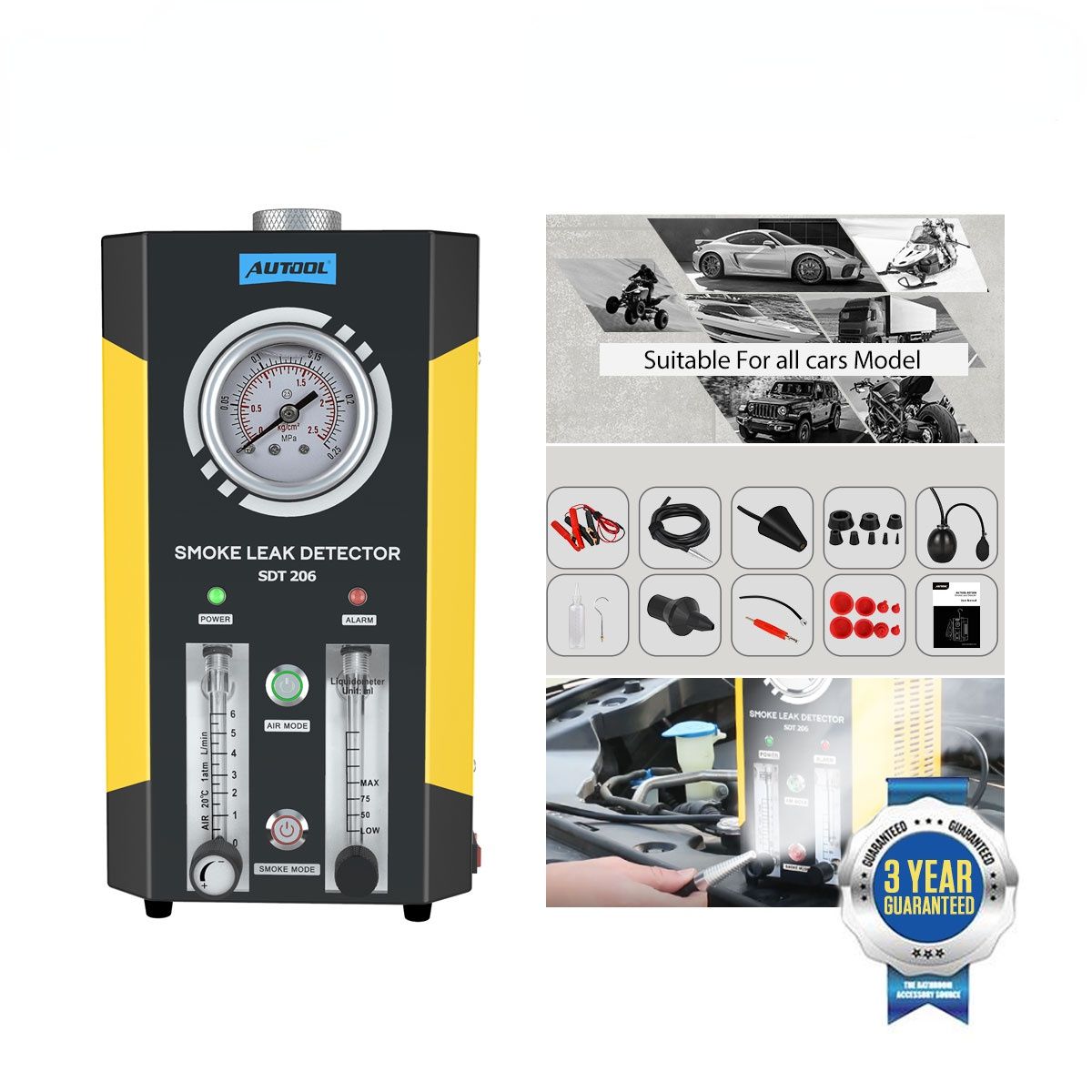

Packing list

1. Main Unit
2. Hook (with hand-tighten nuts)
3. Rubber stopples (with serial specification)
4. Taper stopple
5. Taper pipe
6. 30ml oil bottle
7. User manual
8. EVAP testing accessory

Attention

1. Non- technical person shall not change, disassemble or repair the product, otherwise all losses caused by this shall be bared by the user himself.
2. Please do not scratch, bend, twist or stretch the wires. Do not place the wires in high temperature. Do not press hard or decompose the on-board charging adapter.
3. Please do not place nails, pins, and other small debris on the charging port, in order to avoid damaging the charging connector.  Do not place the product in unstable place such as high altitude area, slope, or shelf.
4. This product is powered by electricity and should not be used as a toy for children.  To avoid short circuit, do not immerse the product in water or other liquid.
5. Please try to use the power supply and power cord supplied by manufacturer as standard.
6. Please do not expose this product to strong light or high temperature when it’s not at use.
