2017 V-checker T501 TPMS Tire Pressure Monitoring System Tire External Sensor Bluetooth Outside
V-checker T501 TPMS tool,Tire Pressure Monitoring System Tire External Sensor,with Bluetooth outside the device.free shipping to any country in the world.
UKOBD2 Provide top quality 2017 V-checker T501 TPMS Tire Pressure Monitoring System Tire External Sensor Bluetooth Outside, if you need 2017 V-checker T501 TPMS Tire Pressure Monitoring System Tire External Sensor Bluetooth Outside, or have any questions about 2017 V-checker T501 TPMS Tire Pressure Monitoring System Tire External Sensor Bluetooth Outside, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of 2017 V-checker T501 TPMS Tire Pressure Monitoring System Tire External Sensor Bluetooth Outside
Bluetooth V-checker T501 TPMS Tire Pressure Monitoring System Tire External Sensor
80% driving accident comes from abnormal tire pressure.The T501 TPMS dynamically monitors tire pressure, which can prevent puncture and damage of car parts caused by flat tire. Improve fuel efficiency, prolong tire life, increase traffic safety and avoid abnormal wear of vehicle parts. Adopting Infineon solution, the device mainly consists of 4 tire sensors modules and monitoring the vehicle tire status and showing all related information such as tire pressure & temperature in real time.Through Bluetooth, V-checker T501 device can be connected with your intelligent mobile phone via our self-developed Android and iOS Apps available in Google Play and App Store (You can also scan the QR code on the package to download the APP).
Features:

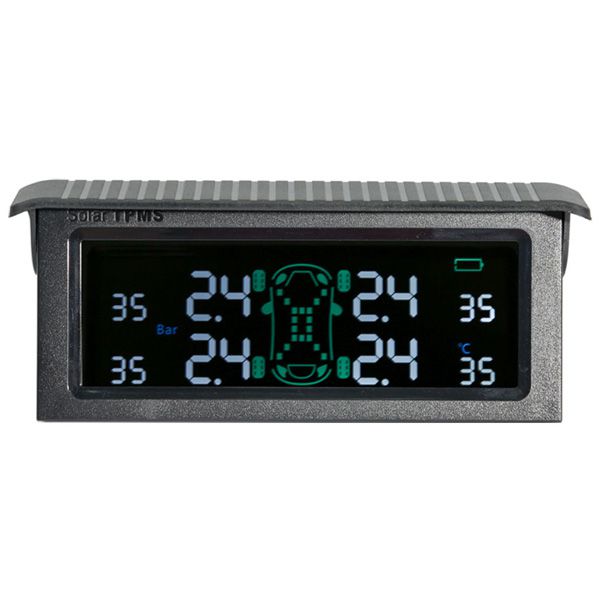

4" LCD Screen and Brilliantly Colorful Display.
With the inserted G-sensor, the device is automatically activated once the ignition is on, and turns itself off when the engine stalls.
Smart Sleeping Mode for Energy Conservation.
A real-time and accurate display of tire air pressure / temperature / solar panel working status / battery capacity, etc, timely warn if any abnormal situation happens.
Multiple Placements - On Dashboard or On Windshield.
Flexible Adjustment of Viewing Angles and No Visual Blind Area.

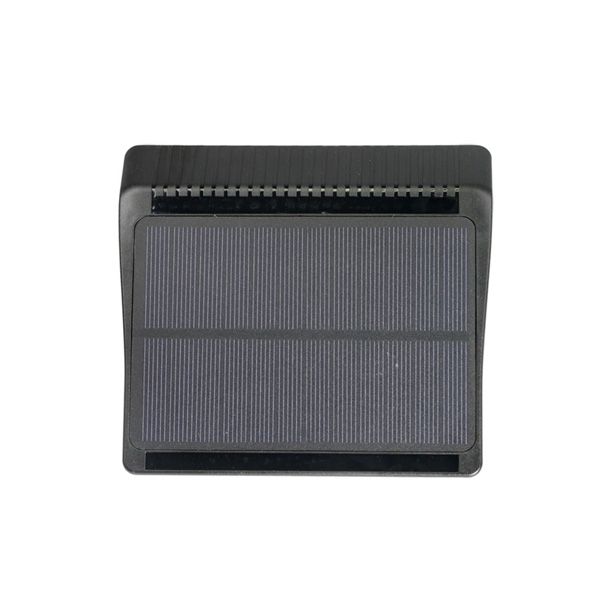

Large-size solar Panel with high efficiency, fully relies on solar charging.
Built-in with explosion-proof battery , high and low temperature resistance.
Battery capacity 2000mAH, once fully charged the endurance can support continuous Usage for 45days. No need to occupy the cigar lighter.
Works on all models:
All kinds of cars, off-road vehicles, SUV, commercial vehicles, MPV, etc.
DO YOU KNOW ?
20% under-inflation reduces tire lifetime by 30%;
30% over-inflation reduces tire lifetime by 45%;
30% pressure lower looks like proper inflated tire
So you need a V-checker® T501 TPMS to monitor tire dynamic pressure, warn early of abnormal tire pressure, improve fuel efficiency,
increase tire life and traffic safety.
Specifications:
Host Parameters | |
Dimensions | 118 x 130 x 20 (mm) |
Operating Frequency | 433.92MHZ |
Operating Voltage | 3.5 - 6.0 VDC |
USB Charging Current | ≤ 600mA |
Operating Environment Temperature Range | -20 - 85℃ |
Sleeping Mode Current | < 1mA |
Environment Temperature Range for Long-term Storage | -20 to 85℃(-22 to 158℉) |
Monitoring Air Pressure Range | 0.0 - 4.0 Bar |
Supported Bluetooth | Bluetooth 4.0 Version or Above |
Monitoring Temperature Range | -20 - 85℃(-4 to 185℉) |
Battery Capacity | 2000mAH |
Solar Charging Time | 4Hours |
Operating Environment Humidity Range | 0 - 100% |
Weight | Approx 0.2 Kg |
Tire Sensor (External) Parameters | |
Battery | 3V Imported Lithium Battery |
Sensor Chip | Infineon |
Operating Environment Humidity Range | 0 - 100% |
Operating Environment Temperature Range | -55 - 125℃(-67 to 257℉) |
Air Pressure Range | 0.0 - 4.0Bar |
Radio Frequency | 433.92MHZ |
Transmitting Power | ≤ 5dBm |
Pressure Display Accuracy | 0.1Bar |
Temperature Measuring Accuracy | 2℃(35.6℉) |
Weight | Approx 9 grams |
Battery Life | 2-3 Years(depending on the actual usage conditions) |
Package includes:
1pc x T501 Main Unit
4pc x Tire External Sensor
1pc x USB Charge Cable
4pc x Adhesive Tape
4pc x Anti-theft Hex Nut
1pc x Spanner for hex nut
4pc x Spanner for sensor cap
1pc x User's Manual
