CARDAQ-PLUS SAE J2534-1 & J2534-2 Scanner Support GM/BMW/VW/AUDI/Jaguar/LandRover/Volvo/Bugatii/Honda/Toyota
CARDAQ-PLUS SAE J2534-1 & J2534-2 Scanner one hardware can support different vehicle software. Package come with one software for free, other software if you need, need pay additional cost for it.CarDAQ-Plus J2534 pass-thru is used for Diagnostic / Reprogramming
UKOBD2 Provide top quality CARDAQ-PLUS SAE J2534-1 & J2534-2 Scanner Support GM/BMW/VW/AUDI/Jaguar/LandRover/Volvo/Bugatii/Honda/Toyota, if you need CARDAQ-PLUS SAE J2534-1 & J2534-2 Scanner Support GM/BMW/VW/AUDI/Jaguar/LandRover/Volvo/Bugatii/Honda/Toyota, or have any questions about CARDAQ-PLUS SAE J2534-1 & J2534-2 Scanner Support GM/BMW/VW/AUDI/Jaguar/LandRover/Volvo/Bugatii/Honda/Toyota, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

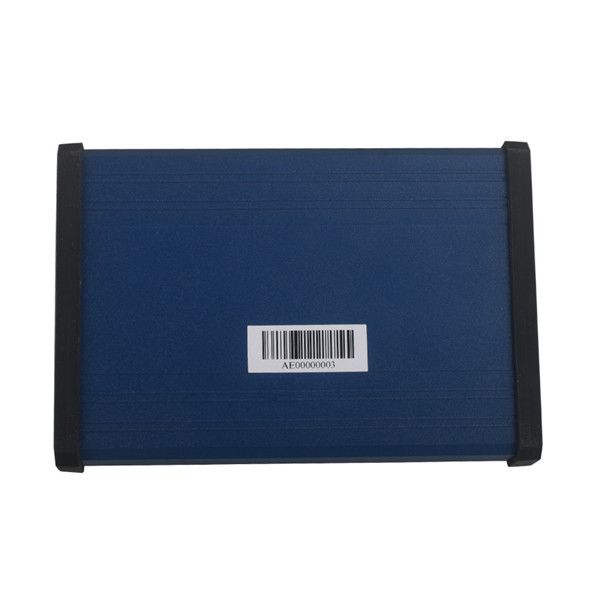

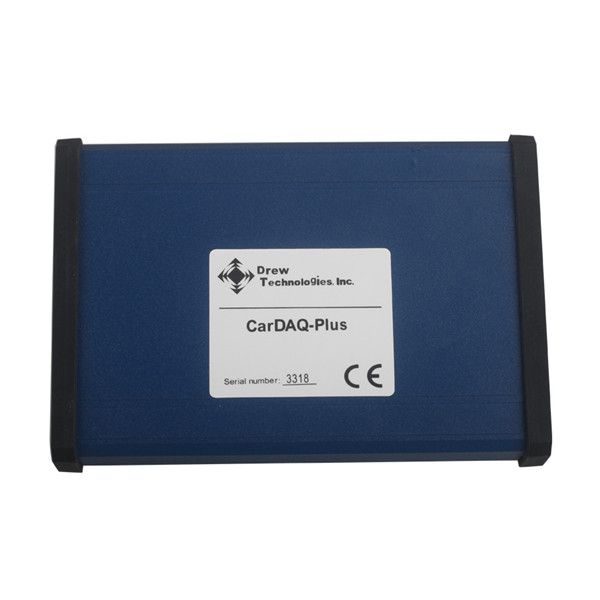

images of CARDAQ-PLUS SAE J2534-1 & J2534-2 Scanner Support GM/BMW/VW/AUDI/Jaguar/LandRover/Volvo/Bugatii/Honda/Toyota
CARDAQ-PLUS SAE J2534-1 & J2534-2 Scanner Support GM/BMW/VW/AUDI/Jaguar/LandRover/Volvo/Bugatii/Honda/Toyota
Languages: English & Spanish
Super CarDAQ-Plus J2534 pass-thru is used for diagnosis and programing.
CarDAQ Plus J2534 Device is available for Honda, Toyota, BMW, Jaguar, Landrover, VW, Audi, Seat, Skoda, Bentley, Lamborghini, Volvo and so on. J2534 CarDAQ Plus supports SAE J2534-1 and J2534-2.
CarDAQ-Plus J2534 pass-thru Software that we can offered ( A / B / C / D / E / F / G / H / J ):
| Area | Type | Car Model | Softw (are HDD | Notes | Price USD | Operation system |
| USA | A | *1 | Alone HDD | 99 | WIN7(XP) | |
| Opel | ||||||
|
|
| |||||
| Europe | B | BMW | *1 | Alone HDD | 149 | Win8.1 |
| BMW Mini | ||||||
| BMW Motorcycle | ||||||
| Rolls-Royce | ||||||
| C | VW | *1 | Can be added in other HDD | 99 | Win7 | |
| Audi | ||||||
| Skoda | ||||||
| Seat | ||||||
| Lamborgini | ||||||
| Bently | ||||||
| D | Jaguar | *1 | Can be added in other HDD | 99 | ||
| E | *1 | Alone HDD( XP system ) | 99 | |||
| F | Bugatti | *1 | Can be added in other HDD | 99 | ||
| G | Mercedes-Benz | *1 | Alone HDD (Extra, not in stardard package) | 499 | ||
| Smart | ||||||
| Benz Truck | ||||||
| Maybach | ||||||
| Setra | ||||||
| Cobus | ||||||
| Mitsubishi Fuso | ||||||
|
|
|
|
|
| ||
| Asian | H | HONDA | *1 | Can be added in other HDD | 99 | |
| Acura | ||||||
| J | Toyota | *1 | Can be added in other HDD | 99 | ||
| Lexus | ||||||
| Scion |
Vehicle: 12V Cars only, not work for 24V Trucks
Connection: Connect laptop via USB cable, has no Wifi function.
Cables: USB Cable and OBDII Cable (Cables for Old car is optional)
Software: In 160GB SATA HDD, software are preinstalled on WIN8 (32bit$ 64Bit) or WIN 7 system or XP system, it applies to most laptops which can run SATA HDD.
Protocol: Support J2534-1 and J2534-2.
Bus Protocols
CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)
2nd CAN (Dual or Single Wire)
Ford SCP (J1850PWM)
GM Class2 (J1850VPW)
KWP2000 (ISO9141/14230)
Chrysler SCI (J2610)
PC Interfaces
USB
Wired RJ45 Ethernet
Other:
Compliant to SAE J2534 (Feb 2002) and SAE J2534-1 (Dec 2004)
Compliant to ISO 22900-1 MVCI physical layer
Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14 or Aux
6 General purpose analog inputs (0-27V, 2Ksps, 12 bit)
Ground pins 9, 12, or 15
Internal Compact Flash slot (must be configured when ordering)
Optional external Compact Flash slot
Customers Uses:
J2534 Independent Repair Facility tool
Bench top ECU reprogramming
In-Vehicle ECU reprogramming
Diagnostics using 3rd party applications *
In-vehicle pass-thru data logging
Standalone data logging or monitoring
Fleet or public transportation data acquisition
OEM Engineering
OEM calibration reprogramming
End-of-Line testing
Dealer Service Tools
3rd party integrated solutions
Package List :
1 x CarDAQ-Plus interface
1 x USB cable
1 x OBD II cable
1 x Software HDD(160 GB)
1 x USB Key for software security
