Carworth C100-D 24V Diesel Universal OBDII Scanner
C100-D be designed full of fashion, elegant,and it is easy to carry, it have reading DTCs, clearing DTCs, reading data stream, actuation test functions for 24V Diesel Heavy duty. It is of Easy operation, plug and play ECU can quickly diagnose the cause of the fault and displayed the fault information clearly in text form, and thus discover hidden vehicles which will provide security for the driving.
UKOBD2 Provide top quality Carworth C100-D 24V Diesel Universal OBDII Scanner, if you need Carworth C100-D 24V Diesel Universal OBDII Scanner, or have any questions about Carworth C100-D 24V Diesel Universal OBDII Scanner, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

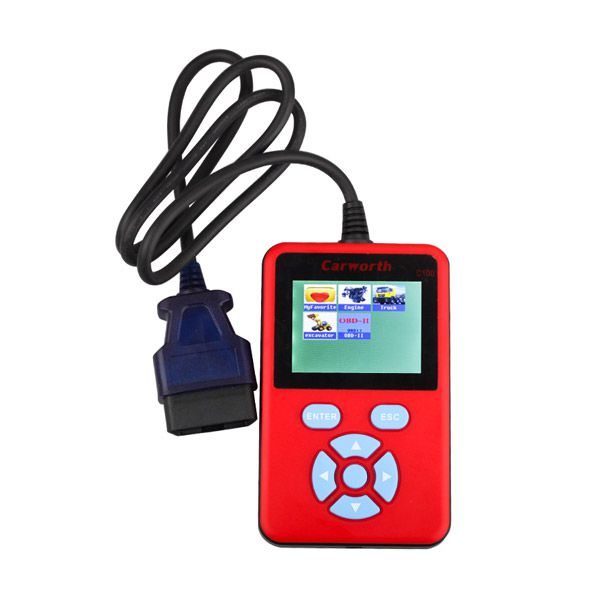

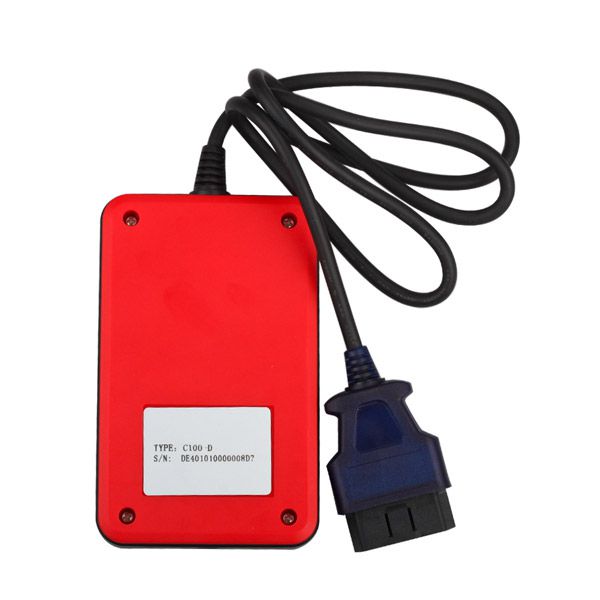

images of Carworth C100-D 24V Diesel Universal OBDII Scanner
Carworth C100-D 24V Diesel Universal OBDII Scanner
Top 5 Reasons to get C100-D OBDII Scanner:
1. Support for all standard models of OBD-II interface
2. Support trouble shooting all electrical control systems.
3. By reading the trouble code feature, you can quickly and accurately obtain the reasons of electronic control system (ECU) fault lights reasons.
4. A key to the elimination of the electronic control system (ECU) temporary failure exists, fault light extinguished.
5. Real-time display condition information, including engine speed, intake air pressure, acceleration performance, coolant temperature, oxygen sensor voltage and other information in order to analyze the reasons for failure in the technician or vehicle owner Product packaging and appearance.
Vehicle coverage:
Carworth can diagnose all kinds of diesel control systems quickly and easily, especially available for China, Europe, America, Japan and Korea and so on,build-in high/low speed CAN-Bus to satisfy all Can-Bus vehicles;
It can test the vehicles including: International, Freightliner, Sterling, Western Star, Detroit, Daf, Erf, Kenworth, Man, Mitsubishi, Scania, Isuzu, Mark, Hino,
Volvo,
BENZ, UD,
Renault,and Foton, Faw, CNHTC, and all other Chinese Heavy duty trucks , Bus...
Support ECU Manufacturers including:
Bosch, Cummins, Caterpillar, Denso, Siemens, Motorola, Zexel, VITO, NanYue, Delphi, Wabco...
Suppored Function:
Read DTC, Read Engine Model, Read Computer Edition Information, Read QR code, Read System parameter number, Read Data Stream, Clear DTC, Read-in QR Code, Component test, Cut off Cylinder Test, Compression Test, Injector Test, Maintenance Help, Study on line and so on some/ most models .
Supported Engine:
Ankai,Arf,Astra,
BENZ,Foton,Cat,Chaochai, Sinotruck,Dacai,Daf,Dfm,Dongfeng,Doosan,
VW Jetta,JMC,CUMMINS,LAIYANG,MACK,MAN,IVECO,QUANC,
Renault,SANY,SCANIA,SUNLONG,TOYOTO,UD,
Volvo,WEICHAI,xce,xicai,Nissan,YUCAI
Excavator: Altas,BOBCAT,CASE,KOBELCO,DASIN,DBC,HITACHI,HYUNDAI,INISCE,KATO,XIAGONG,SUNTON,SUMIT
Supported protocols
ISO14230 (KWP2000)
ISO9141
SAE J1850 (PWM)
SAE J1850 (VPW)
J1939 (CAN)
IS014229 (UDS CAN)
Flash Code Protocol
SAE J1708
Technical Parameters
Host Parameters
1. CPU dual-core architecture CORTEX M3 + ARM9 400M clocked
2. built-in Built-in high-capacity 8G TF card
3. Power supply 9-36(VDC)
4. Port OBD16
5. System Memory 64M SDRAM
6. Monitor 2.8-inch TFT LCD true color touch
7. Resolution 320 × 240,24-bit
8. weight 0.3kg
9 . Dimensions 13.2×8.6×2.0cm
10. Storage Temperature -30~45℃
11. Operating Temperature -10~45℃
12. Humidity ＜90
Package including:
1pc x C100-A Main unit
1pc x OBD2 Cable for Heavy duty
1pc x USB Cable
5pcs x Connect Cable
1pc x Carry Bag
