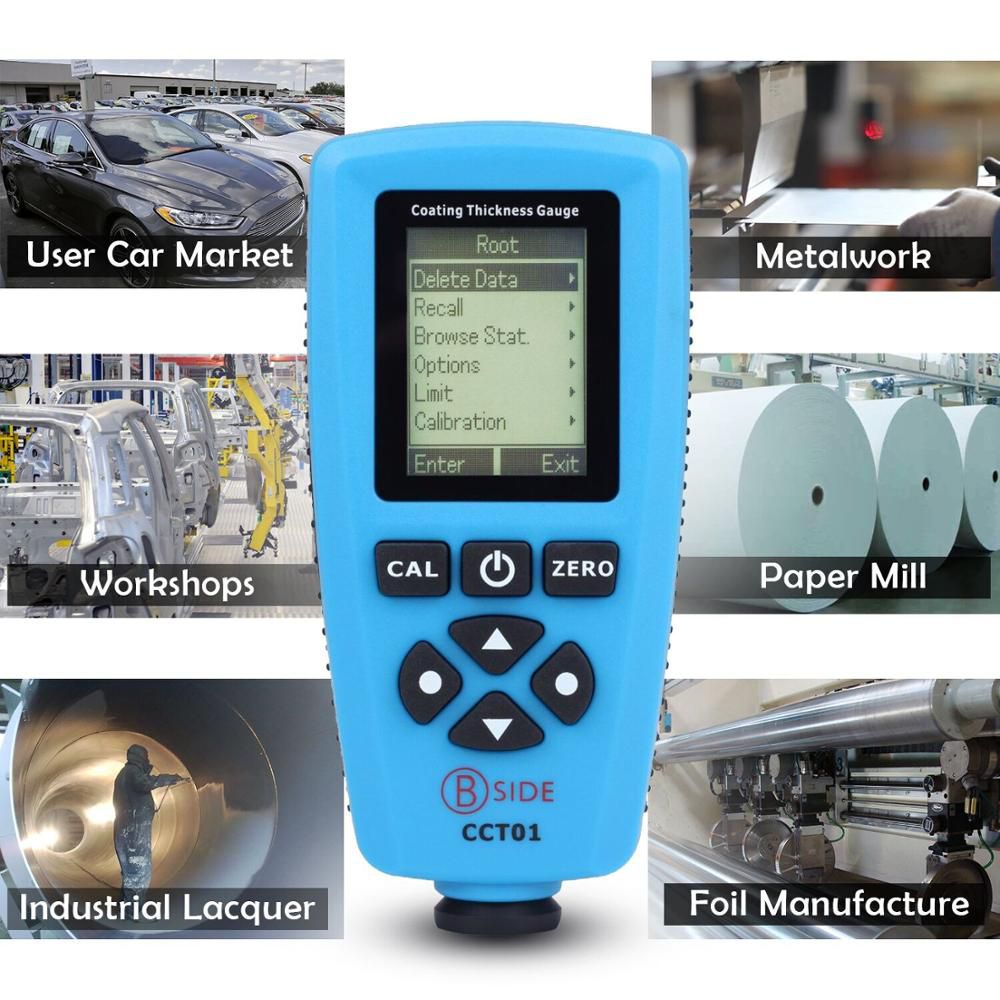

CCT01 Digital Coating Thickness Gauge 1 micron Accuracy 0-2000um Car Paint Film Thickness Tester Meter Measuring FE/NFE
CCT01 Digital Coating Thickness Gauge 1 micron Accuracy 0-2000um Car Paint Film Thickness Tester Meter Measuring FE/NFE
UKOBD2 Provide top quality CCT01 Digital Coating Thickness Gauge 1 micron Accuracy 0-2000um Car Paint Film Thickness Tester Meter Measuring FE/NFE, if you need CCT01 Digital Coating Thickness Gauge 1 micron Accuracy 0-2000um Car Paint Film Thickness Tester Meter Measuring FE/NFE, or have any questions about CCT01 Digital Coating Thickness Gauge 1 micron Accuracy 0-2000um Car Paint Film Thickness Tester Meter Measuring FE/NFE, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of CCT01 Digital Coating Thickness Gauge 1 micron Accuracy 0-2000um Car Paint Film Thickness Tester Meter Measuring FE/NFE
128 x 128 LCD display, standard menu operations.
Two measure modes: single and continuous.
Three probe modes: auto, magnetic and eddy current.
Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe).
Measuring Range: 0~2000μm(0 to 78.769mil)
Accuracy: (F-probe:3%+1μm),(N-probe:3%+1.5μm)
Resolution: 0~99.9 (0.1μm); 100~999 (1μm); ＞1000μm (0.01mm).
Two group modes: direct (DIR) and general (GEN), readings will be lost when power off in direct mode, and not be lost in general mode.
Zero point calibration and multi-point calibration (up to 4 points) for each group.
The users can recall, delete specified readings, or delete group readings.
Statistics display: mean, minimum, maximum and standard deviation.
User can set high or low limit alarm for each group.
Support for English/German Or Russian.
With USB interface for data transmission.
Has Auto Power off, Low battery and error indication function.
The outstanding advantages of this product: CCT01 coating thickness gauge has excellent compatibility and can test most cars. Can meet your different needs !
Test characteristics:
[Measuring Range]:
-
From 0 to 2000um (0 to 78.769mils); Units: um, mm and mils; Minimum thickness of substrate: F-probe: 0.5mm (0.02"), N-probe: 0.3mm (0.012"); Statistics: No. of readings, mean, minimum, maximum and standard deviation.
[F-Probe/Magnetic Induction]:
-
Can measure the thickness of Non-magnetic coating layers On magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).
[N-Probe/Eddy Current]:
-
Can measure the thickness of nonconductive coating layers covered on nonferrous substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel).
[Easy to Use]:
-
User does all operations via standard menu so easily; Power off automatically; USB interface to data transmission; Low battery and error indication; User can set high or low limit alarm for each group. Support for English and German.
[Wide Application]:
-
Ideal for manufacturing company, shipbuilding, aircraft industries, metal machinery industry, chemical industry, especially in automobile/car trading.
Package Includes:
-
1 x CCT01 Thickness Gauge
-
1 x Fe Substrate
-
1 x Al Substrate
-
1 x USB Cable
-
1 x Software CD
-
5 x Calibration Card
-
1 x Technical manua
