DPS3012 Constant Voltage current Step-down Programmable Power Supply module buck Voltage converter LCD voltmeter 32V 12A
DPS3012 Constant Voltage current Step-down Programmable Power Supply module buck Voltage converter LCD voltmeter 32V 12A, wholesale DPS3012 Constant Voltage current Step-down Programmable .
UKOBD2 Provide top quality DPS3012 Constant Voltage current Step-down Programmable Power Supply module buck Voltage converter LCD voltmeter 32V 12A, if you need DPS3012 Constant Voltage current Step-down Programmable Power Supply module buck Voltage converter LCD voltmeter 32V 12A, or have any questions about DPS3012 Constant Voltage current Step-down Programmable Power Supply module buck Voltage converter LCD voltmeter 32V 12A, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

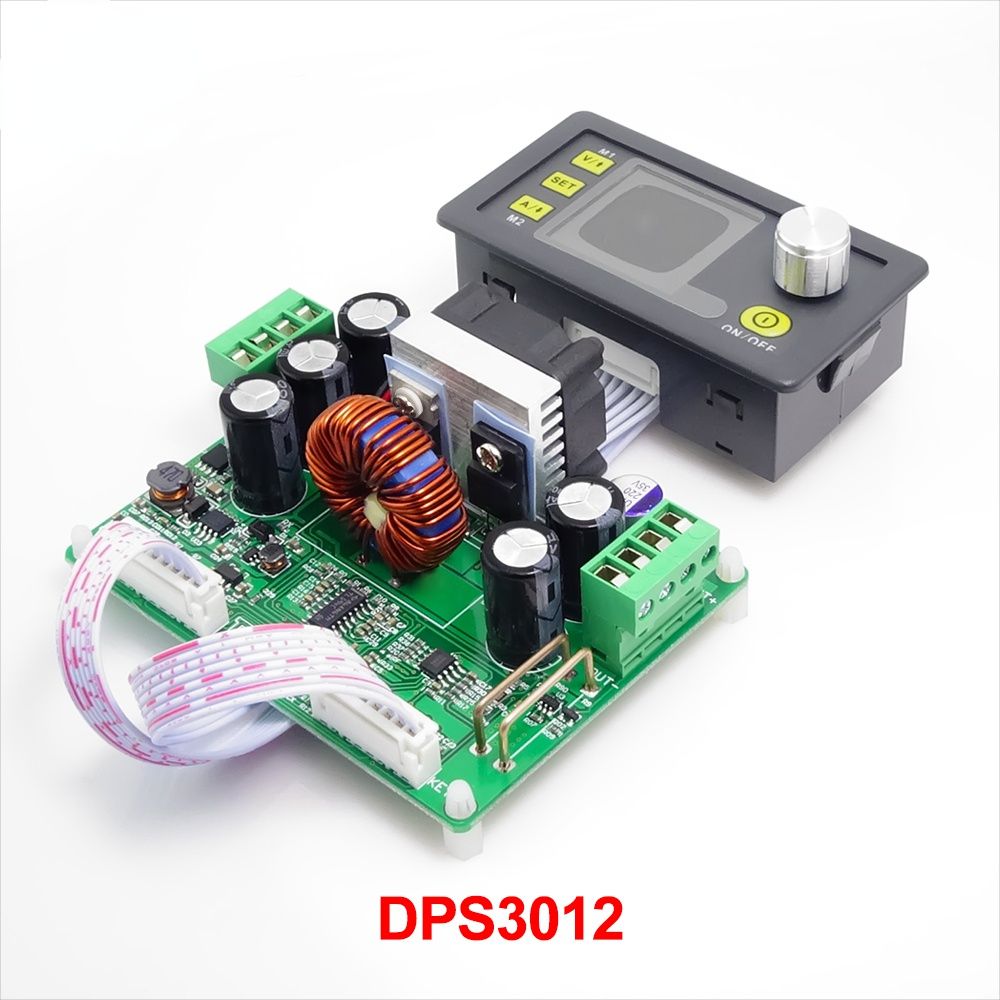

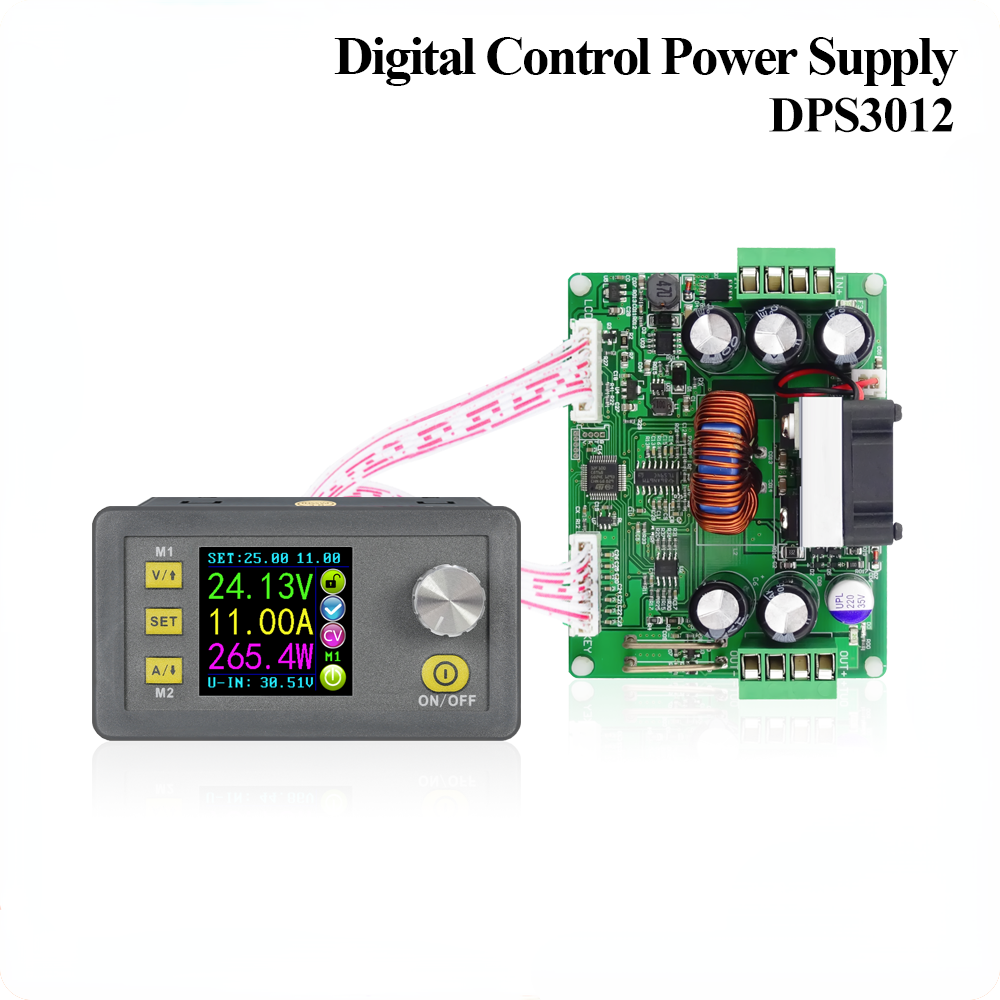

images of DPS3012 Constant Voltage current Step-down Programmable Power Supply module buck Voltage converter LCD voltmeter 32V 12A
| Model:DPS3012 | Input voltage range: 6.00-40.00V |
| Output voltage range: 0V-32.00V | Output current: 0-12.00A |
| Output voltage resolution: 0.01V | Output current resolution: 0.01A |
| Output power range: 0-384W | Working mode: output voltage< input voltage/1.1 |
| Product Weight: about 225g | Open size: 71mm*39mm |
| Output Voltage accuracy: ± (0.5% + 3 digits) | Output Current accuracy: ± (0.5% + 5 digits) |
| Display module size: 79*43*41(mm) (L*W*H) | Power module size: 93*71*41(mm) (L*W*H) |
| Fixed hole center distance: 86mm, 64mm | Length of connecting line: 200mm |
1, Instruction:
2, Case Assembly:
DPS3012 and case C2 assembly:
assemble instruction:
You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.
PRODUCT QUESTIONS：
1. Q:Can I buy several devices and use them in series or in parallel to get higher output voltage or current?
A: Our products can only be used alone, their output must be used isolated, not in series or on parallel, otherwise the device will be burnt.
2. Q: Can I use it to power on inductive load?
A: If you connect inductive load (such as motor), the max working current is 1/3 of range. don't exceed it.
3. Q:What is the correct way to use this device?
A: Before using, please connect all wire well first, then turn on the input power supply, not turn on the input power supply first, then connect the wire. Otherwise it will cause the fuse and MOS damaged.
4. Q:what should I notice when I get it?
A: when you get the product in the first time, please don't use your hands to touch the components, because human static electricity can damage some chips.
5. Q: can I use AC to DC converter or transformer to power on it?
A: if you use AC-DC converter or transformer coil, please add rectifier (rectifier bridge) and filter (more than 4700uf filter capacitor). If input power supply is unstable, please add LC, L is over 47uH, C is over 2200 uf.
6. Q: how does the fan on the power board work?
A:When the current is more than 10A or the temperature is more than 45 °c , the fan will begin to work. when the temperature is more than 65°c, the module will stop working
