Creator C501 OBD 2 Car Diagnostic for BMW e46 e39 e90 e60 Diagnostic Scanner Code Reader AC EPS Oil Service Reset EPB ABS Airbag

Creator C501 can easily and fast access the car computer system(ECU), diagnose the troubles from engine and erase them by one click

UKOBD2 Provide top quality Creator C501 OBD 2 Car Diagnostic for BMW e46 e39 e90 e60 Diagnostic Scanner Code Reader AC EPS Oil Service Reset EPB ABS Airbag, if you need Creator C501 OBD 2 Car Diagnostic for BMW e46 e39 e90 e60 Diagnostic Scanner Code Reader AC EPS Oil Service Reset EPB ABS Airbag, or have any questions about Creator C501 OBD 2 Car Diagnostic for BMW e46 e39 e90 e60 Diagnostic Scanner Code Reader AC EPS Oil Service Reset EPB ABS Airbag, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

images of Creator C501 OBD 2 Car Diagnostic for BMW e46 e39 e90 e60 Diagnostic Scanner Code Reader AC EPS Oil Service Reset EPB ABS Airbag

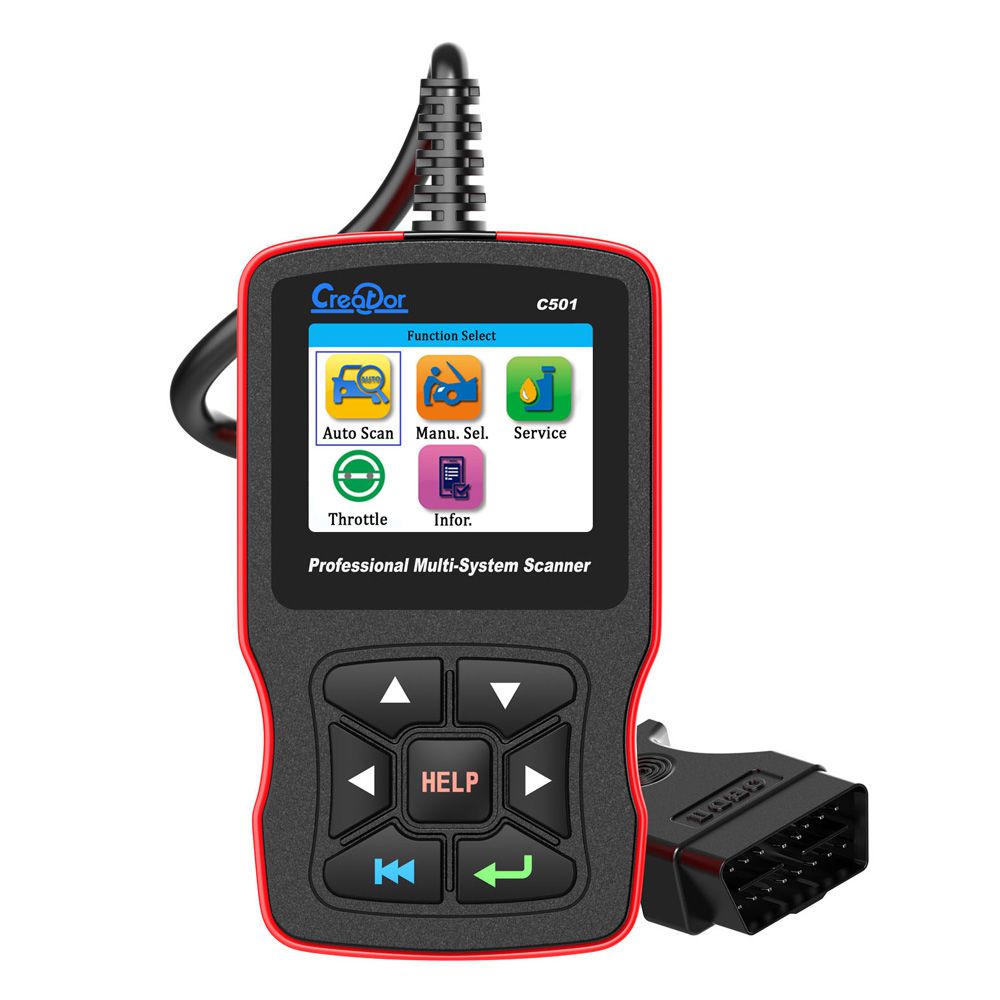

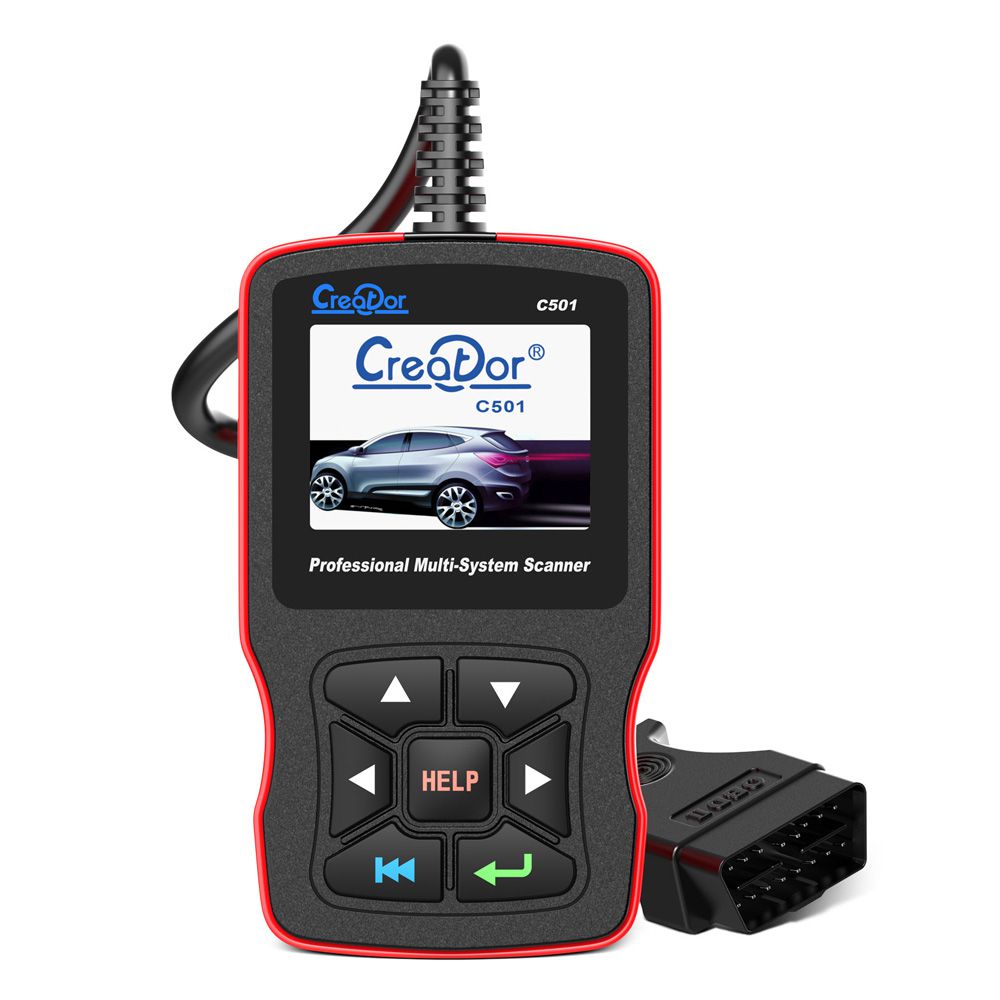

Creator C501 BMW & OBDII/EOBD Multi-system Scanner

Creator C501 is a new featured OBDII code scanners mainly focused on the car diagnostic industry helping DIY-users and professional technician to fix the car's engine trouble and emission related errors. With the new patented design and true colorful wide screen, the C501 can easily and fast access the car computer system(ECU), diagnose the troubles from engine and erase them by one click. C501 would be the best solution for home users & professional technicians, save your time and money to service station!

Software Version: C501 V7.3


C501 BMW Software description

Supports BMW between 2001 to 2016

1 Series: 1'_E81/E81/E87/E88,1'_F20/F21
2 Series: 2'_F22/F23,2'_F45/F46,2'_F87
3 Series: 3'_Z3_E36,3'_E46,3'_E90/E91/E92/E93, 3'_F30/F31/F34/F35,3'_F80
4 Series: 4'_F32/F33/F36,4'_F82/F83
5 Series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 Series: 6'_E63/E64,6'_F06/F12/F13
7 Series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X Series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71, X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z Series: 3'/Z3_E36,Z4_E85/E86,Z4_E89
I Series: I'_I01/I02
MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56

Include : Drive , Chassis and Body all system

Creator C501 BMW Scanner Functions :

read trouble codes, clear trouble codes, displays live data stream and graph display and vehicle version information. Clear adaptation, Engine oil reset

C501 Scan Tool Specifications

A) Display: Color, 320 x 240 pixel display with contrast adjustment
B) Operation Temperature: - 20 ℃ -- 75 ℃
C) Storage Temperature: -40 ℃ -- 120 ℃
D) Power: 8V -- 24V

Product Troubleshooting
Vehicle Linking Error

A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit).
You need to do the following to check up:


A) Verify that the ignition is ON;
B) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
C) Verify that the vehicle is OBD2 compliant;
D) Turn the ignition off and wait for about 10 seconds. Turn the
E) Ignition back to on and continue the testing.
F) Verify the control module is not defective

Scan tool doesn’t power up

If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
A) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
B) Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
C) Check vehicle battery to make sure it is still good with at least 8.0 volts.

Package includes:

1pc x BMW Creator C501 machine
1pc x User's Manual
