AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420B

AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420B

UKOBD2 Provide top quality AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420B, if you need AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420B, or have any questions about AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420B, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

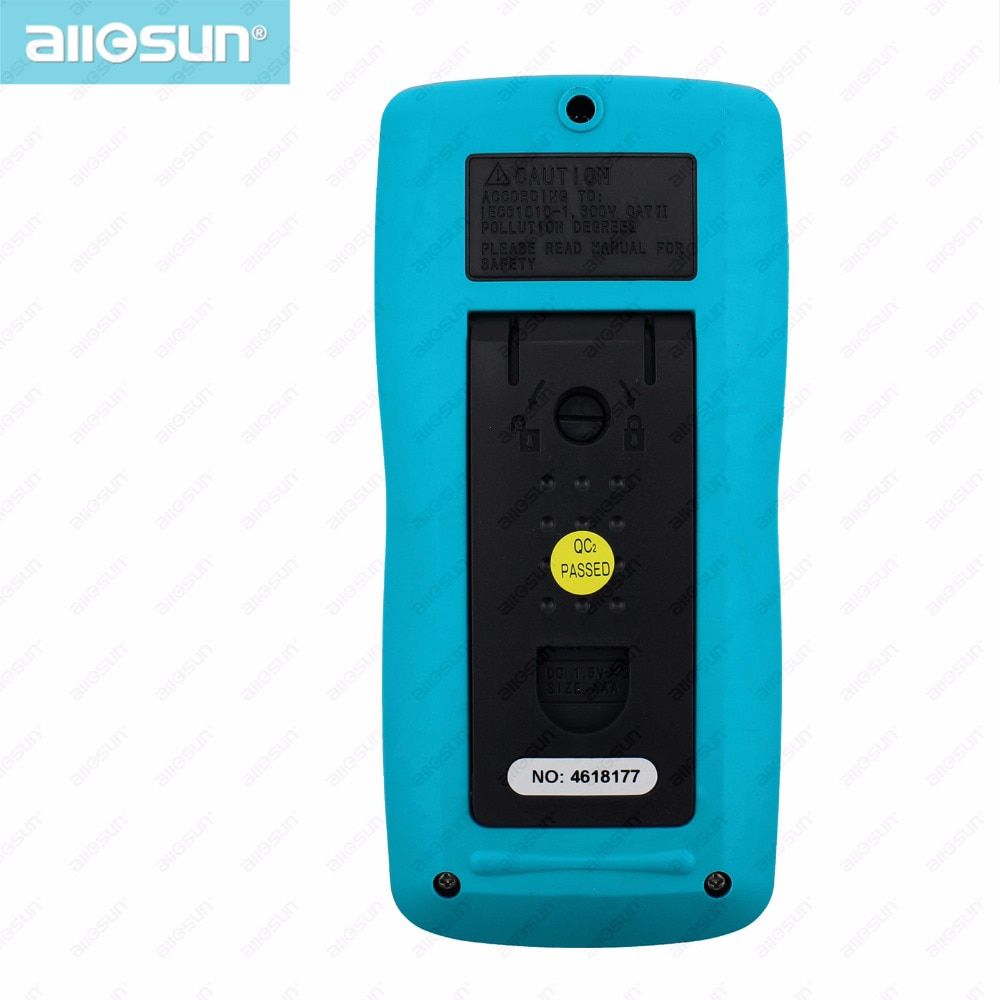

images of AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420B

EM420B Digital Multimeter Continuity Diode Transistor

Battery Tester Measuring Current with AC/DC Multimeter

Note :
This package does not include batteries.
Due to new rules of China Post Air, parcels must not include batteries,
otherwise it will not get through the custom.
> It is compact 3 1/2 digits digital multimeter for measuring DC and AC voltage,
DC and AC current, resistance, temperature, diode, transistor, continuity,
capacitance.
> It has polarity indication, data hold, MAX mode, overrange indication and auto
power off.
> It is easy to operate and is a ideal instrument tool.

Measuring AC/DC current >>>
Connect the negative(-) output lead of the selected clamp to the "COM" jack,
Connect the positive(+) output lead of the clamp to the "INPUT" jack.
Clamp the circuit to be measured with the clamp.
Read the reading on the display.

Features >>>
> Max.1000A AC/DC current measurement with current clamp 3 1/2-digit backlight
> LCD which has a max. reading 1999
> Manual/ auto range mode
> Maximum value hold mode
> Autoatic polarity indication
> Data-hold mode
> Overload protection
> Low battery indication
> Low power consumption

Specification>>>
Voltage DC: 200m/2/20/200/600V
Voltage AC: 2/20/200/600V
Current DC: 200u/2000u/20m/200m/2/10A
*Current DC: 200/1000A(with clamp)
Current AC: 200u/2000u/20m/200m/2/10A
*Current AC: 200/1000A(with clamp)
Resistance: 200/2k/20k/200k/2M/20MΩ
Temperature: -20~1000° /0~1800°
hFE: Vce approx.1.0V, Ib approx.2uA
Continuity: Less than 30Ω
Diode Check: approx.1.5V
Capacitance: 20n/200n/2u/20u/200u/1000uF
Display: LCD,1999 counts, updates 2-3 times/ sec
Overrange Indication: "OL" shown on the display
Negative Polarity Indication: "-"shown on the display
Battery:1.5V.AAA or equivalent,3 pieces (Not include in the package)
Operating Temperature:0-40°, <75% RH
Storage Temperature:-10-50°, <85% RH
Demensions:158X75X35mm
Weight: about 200g(include batteries)
1. Test leads
2. K type thermocouple
3. Transistor test socket

Go to Buy: AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420B
