EM5511 3in1 Auto Range Digital Multimeter Voltmeter Ammeter Ohmmeter DC AC EMF Multimeter Automotive Tester

EM420A EM5511 3in1 Auto Range Digital Multimeter Voltmeter Ammeter Ohmmeter DC AC EMF Multimeter Automotive Tester

UKOBD2 Provide top quality EM5511 3in1 Auto Range Digital Multimeter Voltmeter Ammeter Ohmmeter DC AC EMF Multimeter Automotive Tester, if you need EM5511 3in1 Auto Range Digital Multimeter Voltmeter Ammeter Ohmmeter DC AC EMF Multimeter Automotive Tester, or have any questions about EM5511 3in1 Auto Range Digital Multimeter Voltmeter Ammeter Ohmmeter DC AC EMF Multimeter Automotive Tester, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

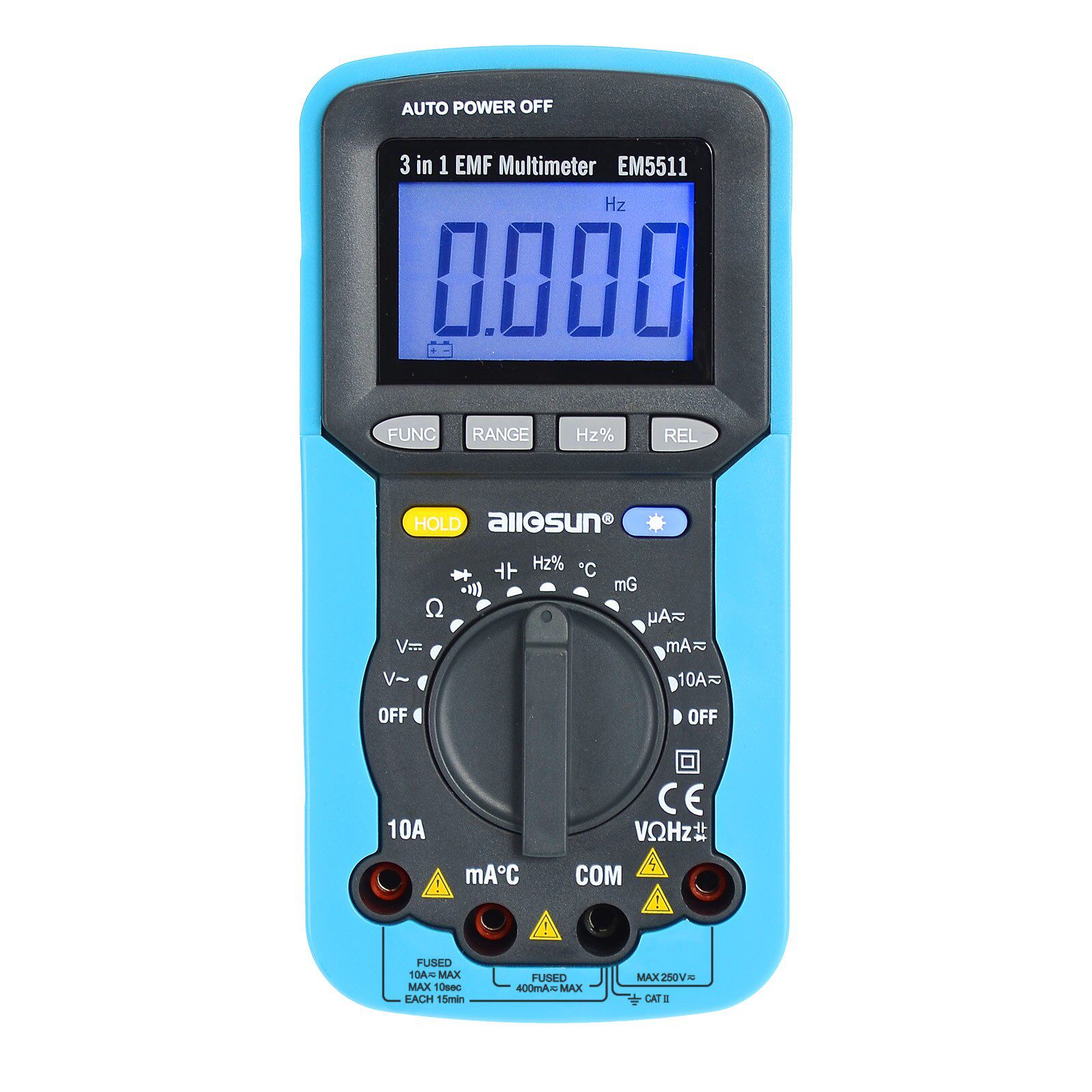

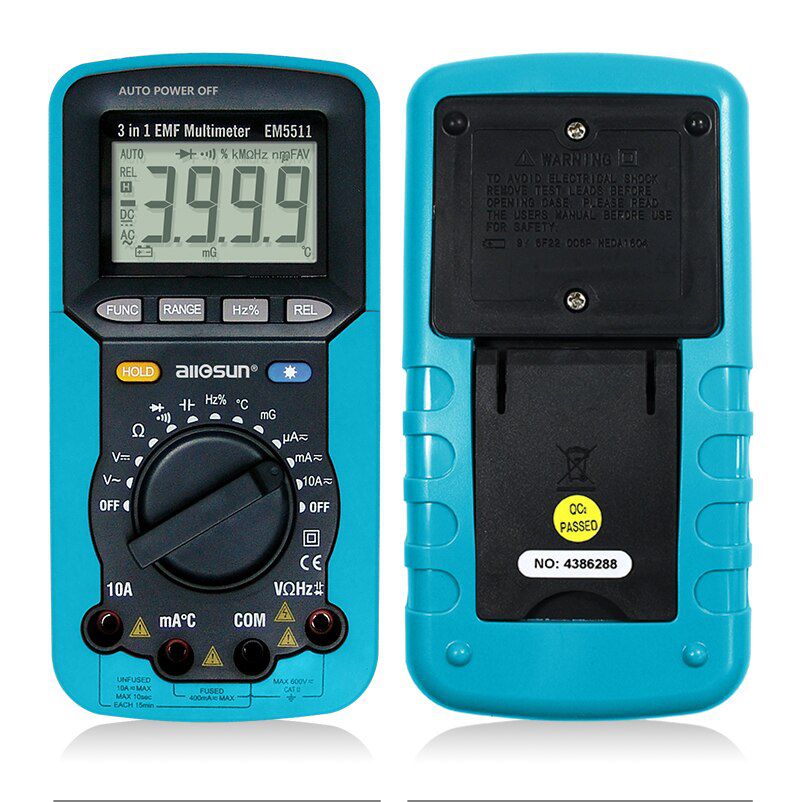

images of EM5511 3in1 Auto Range Digital Multimeter Voltmeter Ammeter Ohmmeter DC AC EMF Multimeter Automotive Tester

EM420A

Digital Multimete Continuity Diode Transistor Battery Te AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420A


NOTE


This package doesnot include batteries.


Due to new rules of China Post Air, parcels must not include batteries,


otherwise it will not get through the custom.


INTRODUCTION


This series multimeters are compact 3 1/2 digits digital multimeters designed to measure DC and AC voltage, DC and AC current, resistance, diode, transistor hFE, continuity, temperature, battery ( EM420A ) and capacitance ( EM420B ). They feature polarity indication, data hold, MAX recording mode, and etc. They are easy to operate and are ideal test tools.


1.Display


3 1/2 digit LCD, with a max.reading of 1999


2.”RANGE” Button


Used to switch between autorange mode and manual range mode as well as to select desired manual range.


3.”FUNC.” Button


Used to switch the meter between: 1.DC current and AC current measurement; 2.Celsius and Fahrenheit measurement;3.Diode and continuity test function.


4.Power Switch


Used to turn on/off the meter


5.Function/Range


Switch


Used to select desired function and/or range.


6.”10A” Terminal


Plug-in connector for the red test lead for current ( 200mA – 10A ) measurements.


7.”COM” Terminal


Plug-in connector for the black test lead for voltage, current, resistance, diode, continuity, capacitance and battery measurements, also for the adapter for transistor hFE measurements. For temperature measurements, it is a plug-in connector for the negative plug of the K type thermocouple.


8.”INPUT” Terminal


Plug-in connector for the red test lead for voltage, current ( < 200mA ), resistance, diode, continuity, capacitance and battery measurements, also for the adapter for transistor hFE measurements. For temperature measurements, it is a plug-in connector for the positive plug of the K type thermocouple.


9.Backlight Button


Turn on/off the backlight. The backlight will turn off automatically about 15 seconds later after it is turned on.


10.”DATAH” Button


Used to enter/exit Data hold mode


11.”MAXH” Button


Used to enter/exit MAX recording mode.


GENERAL SPECIFICATION



Display：3 1/2-digit LCD,with a max.reading of 1999

Negative Polarity Indication: Negative sign "—" shown on the display automatically

Sampling Rate: About 2 to 3 times/sec

Low Battery Indication

Battery: 1.5V battery, AAA or equivalent, 3 pieces

IP Degree: IP20

Operating Environment: Temperature: 0℃ to 40℃,Relative Humidity:<75%

Temperature Coefficient：0.2×(specified accuracy)/℃(<18℃ or >28℃）

Storage Environment:Temperature: -10℃ to 50℃,Relative Humidity:<85%

Dimensions:158×75×35mm

Weight:About 200g (including batteries)




















3in1 Digital Multimeter Voltmeter Ammeter Ohmmeter DC

AC EMF Multimeter Automotive Tester EM5511

Note:

This package doesnot include batteries.

Due to new rules of China Post Air, parcels must not include batteries,

otherwise it will not get through the custom.

FEATURE >>>

1) High-performance


2) Display: 3 3/4-backlight LCD display, max.reading of 3999

3) Data-hold mode

4) Auto polarity indication

5) Manual range and autorange mode

6) Auto/manual power-off

7) Relative mode

8) Overload protection: "OL" shown on the LCD

9) Low battery indication

SPECIFICATION >>>


> Negative Polarity Indiaction: "-" displayed automatically
> Sampling Rate: 2-3 times/sec
> Operating Temperature: 0-40 degree C,<75%RH
> Storage Temperature: -30-60 degree C,<85%RH
> Operating Altitude: 0 to 2000 meters
> Battery: 9V,6F22 or equivalent
> Dimensions: 162x83x47mm
> Weight: about 310g (including battery and the holster)

Technical Specifications >>>
Accuracy is specified for a period of one year after calibration
and at 18 ℃ to 28 ℃, with relative humidity <75%. Normally,
accuracy specifications take the form of: ±([% of Reading]+
[number of Least Significant Digits])

ACCESSORIES >>>

Test Lead; Temperature probe; Battery; Users Manual; Holster

DC Voltage:

Range

Resolution

Accuracy

400mV

0.1mV

±(1.0%+5)

4V

1mV

±(0.8%+3)

40V

10mV

400V

100mV

600V

1V

±(1.0%+5)

Input Impedance:the 400mV range:>1000MΩ

the other ranges:10MΩ

Max.Permitted Input:250V DC or AC

AC Voltage >>>

Range

Resolution

Accuracy

4V

1mV

±(1.0%+5)

40V

10mV

400V

100mV

600V

1V

±(1.2%+5)

Input Impedance: 10MΩ
Max.Permitted Input:250V DC or AC
Frequency Range:40Hz ~400Hz
Response:Average,calibrated in rms of sine wave.


DC Current >>>

Range

Resolution

Accuracy

400 uA

0.1 uA

±(1.2%+3)

4000 uA

1 uA

40 mA

10 uA

400 mA

100 uA

4 A

1 mA

±(1.8%+3)

10 A

10 mA

±(2.0%+5)

Overload Protection:
For”mA”jack inputs:Fuse,500Ma/250V,fast action,
For”10A”jack inputs:Fuse,10A/250V,fast action
Max.Input Current:10A(For inputs>5A:
measurement duration<10secs,interval>15minutes)
Max.Voltage Drop:400Mv

AC Current >>>

Range

Resolution

Accuracy

400uA

0.1uA

±(1.2%+3)

4000 uA

1 uA

40mA

10 uA

400mA

100 uA

4A

1mA

±(1.8%+3)

10A

10mA

±(2.0%+5)

Overload Protection:
For "mA degree C" jack inputs: Fuse, 500Ma/250V, fast action
For "10A" jack inputs: Fuse, 10A/250V, fast action
Max. Input Current: 10A(For inputs>5A: measurement duration <10secs, interval >15minutes)
Max. Voltage Drop: 400MV
Frequency Range: 40Hz~400Hz
Response: Average, calibrated in rms of sine wave.

RESISTANCE >>>

Range

Resolution

Accuracy

400 Ω

0.1 Ω

±(1.0%+5)

4 kΩ

1 Ω

±(1.0%+3)

40 kΩ

10 Ω

400 kΩ

100Ω

4 MΩ

1 kΩ

40 MΩ

10 kΩ

±(2.0%+5)

Overload Protection: 250V DC/AC
Open Circuit Voltage: about 0.25V

FREQUENCY

Range

Resolution

Accuracy

10Hz

0.01Hz

±(1.0%+3)

100Hz

0.1Hz

±(0.8%+3)

1kHz

1 Hz

10kHz

10 Hz

100kHz

100 Hz

±(1.0%+3)

200kHz

1kHz

>200kHz

Not specified

Input voltage:1 Vrms~20 Vrms
Overload Protection:250VDC/AC

CAPACITANCE(use Relative mode) >>>

Range

Resolution

Accuracy

4 nF

0.001nF

±(4.0%+5)

40 nF

0.01 nF

400 nF

0.1 nF

4 uF

1 nF

40 uF

10 nF

100 uF

100 nF

±(8.0%+5)

Overload Protection: 250V DC/AC

TMPERATURE >>>

Range

Resolution

Accuracy

-20℃~400℃

0.01℃

±1.5%

±3℃

400℃~1000℃

1℃

±2.0%

±3℃

Overload Protection: Fuse, 500Ma/250V, fast action

DUTY CYCLE >>>

Range

Resolution

Accuracy

5%~95%

0.1%

1Hz~10kHz:±(2.0%+5)

>10kHz: not specified

Input Voltage: 3Vp-p~10Vp-p
Overload Protection: 250V DC/AC

ELECTROMAGNETIC RADIATION >>>

Range

Resolution

Accuracy

400mG

0.1mG

1Hz~10kHz:±(2.0%+5)

4000mG

1mG

±(5%+3) at 50Hz/60Hz

Frequency Scope:40~400Hz(Single axis measurements only)
1 Tesla=1000Gauss; 1Gauss=1000 Milligauss
