KT4000/KT5000 Digital Reptile Dimming Aquarium Temperature Controller Outlet PID Heating Cool Day/night Chauffage Regulator Thermostat EU/UK Plug

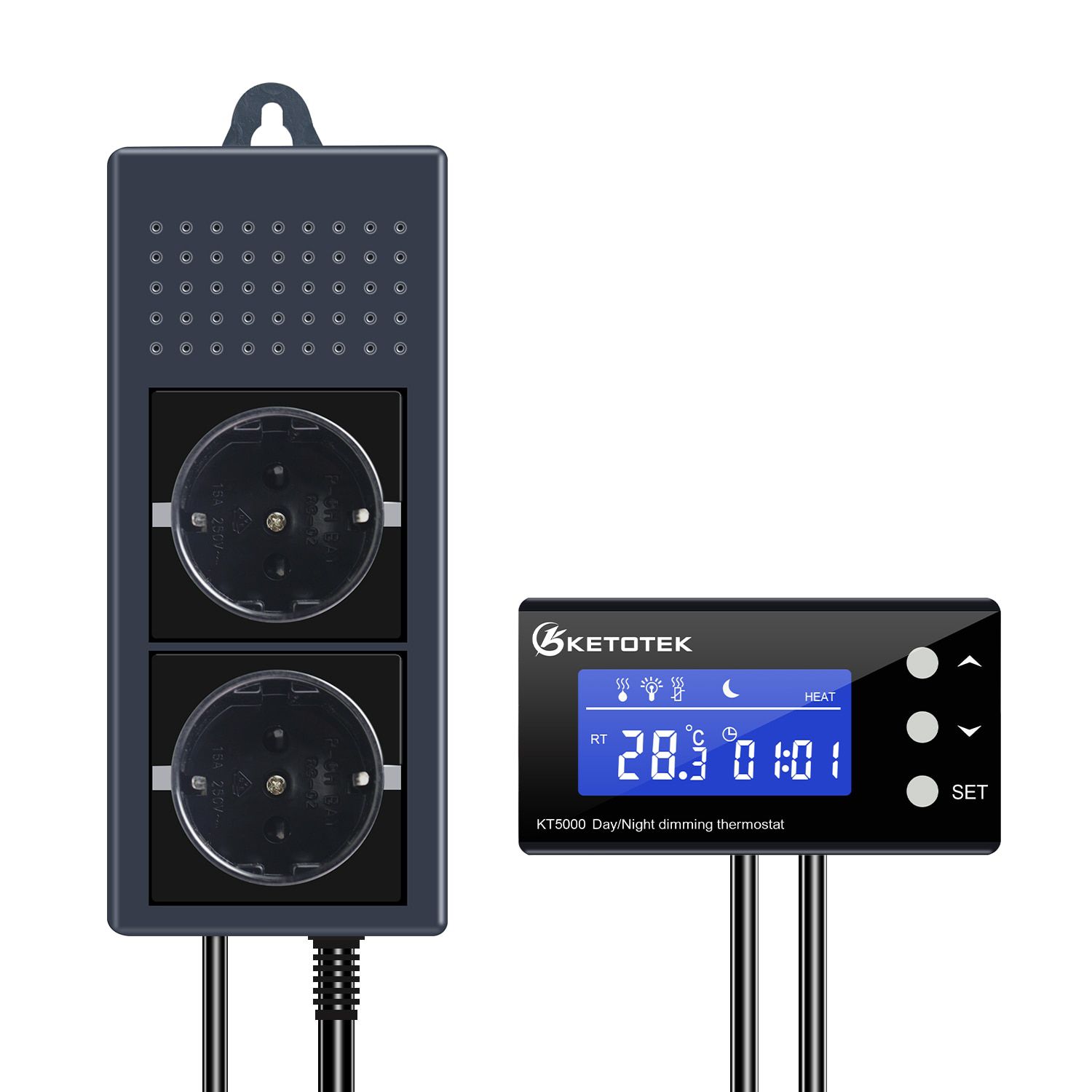

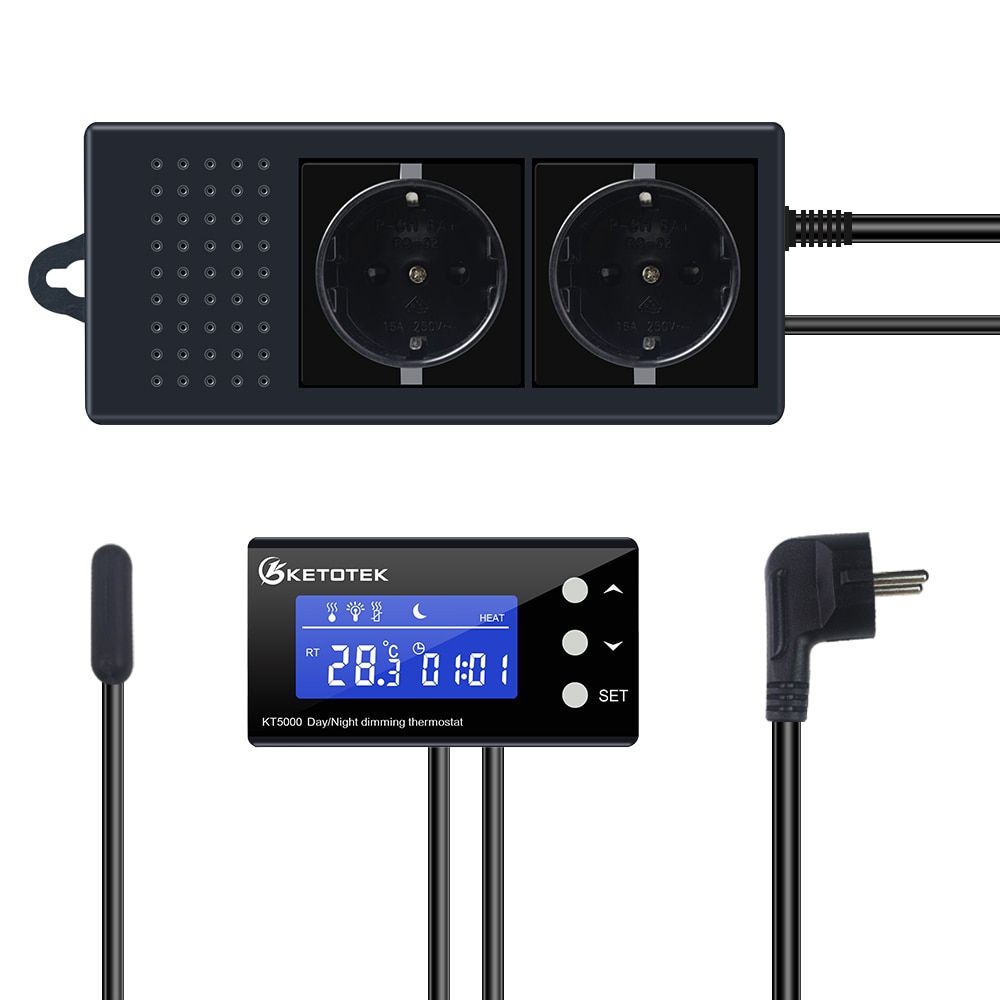

KT5000 Pid Day/Night dimming thermostat + timer
Features:
  • Blue tape LCD display, simple operation
  • Temperature adjusted per 0.1°C
  • Two timers can be set during 24 hours
  • Separate Day and Night Temperature can be set.
  • Real Time Clock - An inbuilt real-time clock to control the light so simulating the day and night as in the real environment. One Heating/Cooling socket plus one timer socket help to set timing output function
  • Can be used in both wet and dry environments
  • Small and elegant appearance, can adopt attached on the glass, or stand on the table, or install into the aquarium and terrarium, fit for different operating requirements of users.
Parameters:
Model Number
KT5000
Temperature Measuring Range
0°C~50°C
Temperature Controlling Range
0°C~50°C
Resolution
0.1°C
Measuring Accuracy
1.0°C
Power Supply
220V AC+/-15%
Input
1 NTC Sensor
Timer Output
Resistance load MAX 1100W, Inductive load MAX 275W, Incandescent bulb MAX 220W
Heating Output
Resistive load MAX 440W
Working Temperature
-10°C~60°C
Working Humidity
20%~85%
Power Consumption
<=3W
Key Sound
YES
Size of the display
92x50x6.5mm
PID Control
YES
Menu item
Set
Default value
Remark
HEAT（MODE）
HEAT
HEAT
Daytime Temperature（SET）
0.0~50.0°C
25°C
Set step 0.1°C
Nighttime Temperature（SET）
0.0~50.0°C
20°C
Daytime FROM
00:00—22:59
08:00
Daytime TO
01:00—23:59
18:00
If TO time is earlier than FROM
time, display error message "ERR".
Alarm over temperature
0.0~5.0°C
5.0°C
Set step 0.1°C
First Timing control L1:
ON: FROM, OFF: TO
00:00~23:59
00:00~06:00
Disabled if FROM and TO are same
Second Timing control L2:
ON: FROM, OFF: TO
00:00~23:59
12:00~18:00
Disabled if FROM and TO are same
Real Time
00:00~23:59
Real-time
Package Included:
1 x thermostat
KT4000 heat and cool thermostat
Features:
  • Heating and cooling relay output.
  • Two temperature setpoint. easy to use.
  • Plug and play design. Reading with Celsius(°C) unit.
  • Compressor Delay protection function ( 0-10min, default: 0 min)
  • Temperature calibration function (-10~10°C, default: 0°C)
  • Alarm when temp exceed temperature limit or sensor error
  • All parameters setting can be saved after short circuit.
  • Refrigerating control output delay protection
  • Can be used for aquarium, pet breeing, domestic freezer,incubator, BBQ, water tanks, refrigerator, industrial chiller,steamer, industrial equipment and other temperature controlled system.
Specifications
  • Power Supply: 220Vac±15% , 50
  • Temperature control range:-50~99°C, default: 20°C
  • Resolution: 0.1°C, adjustment step: 0.1°C
  • Accuracy: +/-1°C
  • Heating differential value:0.5~20 °C, default: 2°C
  • Cooling differential value:0.5~20°C, default: 2°C
  • Sensor input: NTC Waterproof sensor 3m/9.84ft
  • Relay contact capacity: Cool Heat 10A
  • Power consumption: ≤3W
  • Temperature control range :-50~99°C
    Heating differential value：0.5~20°C
    Cooling differential value:0.5~20°C
    Sensor input:NTC Waterproof sensor2m/9.84ft
    Relay contact capacity:Cool Heat(10A@220Vac each)
    Ambient temperature:-20-60°C
    humidity:20% -85%RH
    Heating and Cooling Relay output:yes
    Cooling Delay start:Yes
    Temperature calibration :yes
    Data saved when power off :yes
    Alarm：Alarm when temp exceed temperature limit or sensor error
    Code
    Function
    Set Range
    Default
    LS
    Temperature set value
    -50~99℃
    20°C
    Hd
    Heating differential value
    0.5~20°C
    2°C
    Ld
    Cooling differential value
    0.5~20°C
    2°C
    PL
    Set cooling delay output
    0~10 minutes
    1
    AH
    High temperature alarm
    -50~99°C
    99°C
    AL
    Low temperature alarm
    -50~LS1°C
    -50°C
    CA
    Temperature Calibration
    -10~10°C
    0°C
    Reset:long press UP and DOWN buttons for 3 seconds
Package Content :
  • 1 x temperature controller
  • 1 x waterproof sensor
UK Plug
EU Plug:
