New Arrive FOR Yamaha immo immobilizer Emulator for Yamaha bikes, Motorcycles, scooters Auto Key Programmer
Newest for Yamaha Immo Emulator Full Chips for Yamaha Immobilizer from 2006 to 2009, Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel, wholesale New Arrive FOR Yamaha immo immobilizer Emulator .
UKOBD2 Provide top quality New Arrive FOR Yamaha immo immobilizer Emulator for Yamaha bikes, Motorcycles, scooters Auto Key Programmer, if you need New Arrive FOR Yamaha immo immobilizer Emulator for Yamaha bikes, Motorcycles, scooters Auto Key Programmer, or have any questions about New Arrive FOR Yamaha immo immobilizer Emulator for Yamaha bikes, Motorcycles, scooters Auto Key Programmer, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of New Arrive FOR Yamaha immo immobilizer Emulator for Yamaha bikes, Motorcycles, scooters Auto Key Programmer
Newest for Yamaha Immo Emulator Full Chips for Yamaha Immobilizer from 2006 to 2009

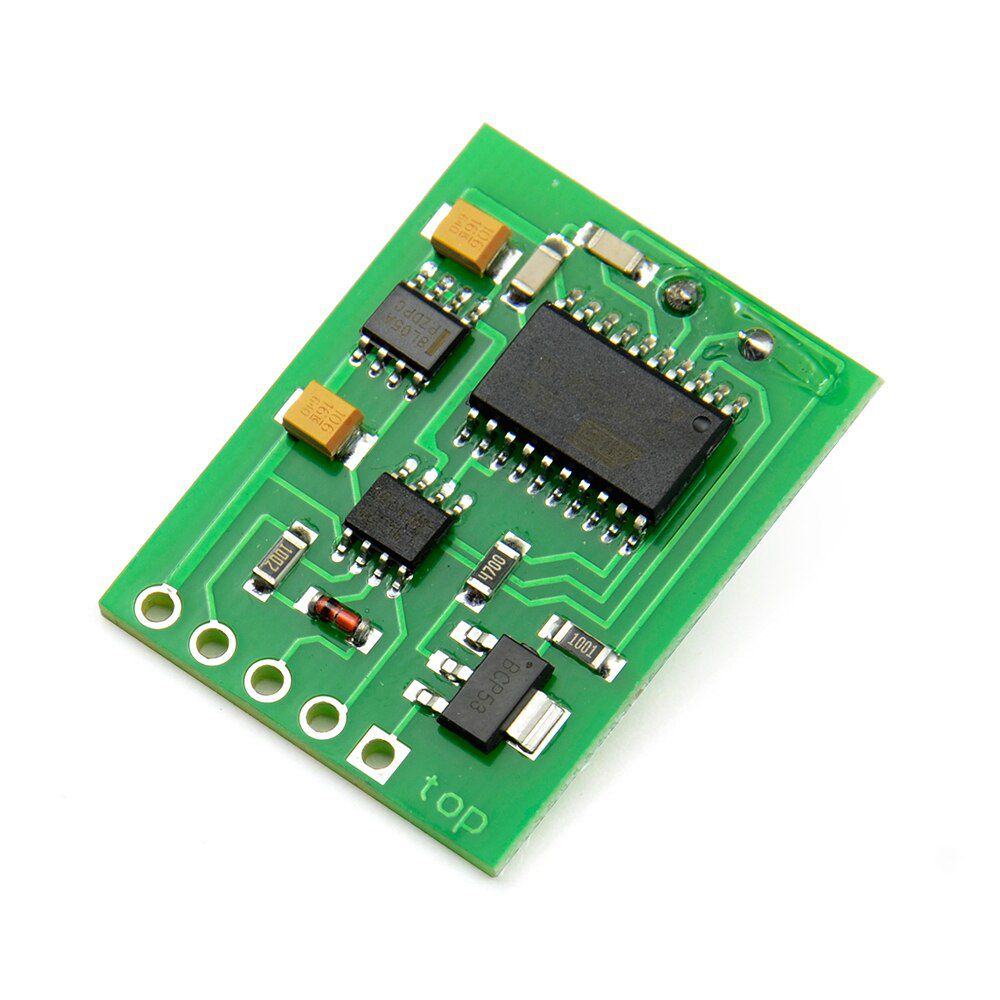

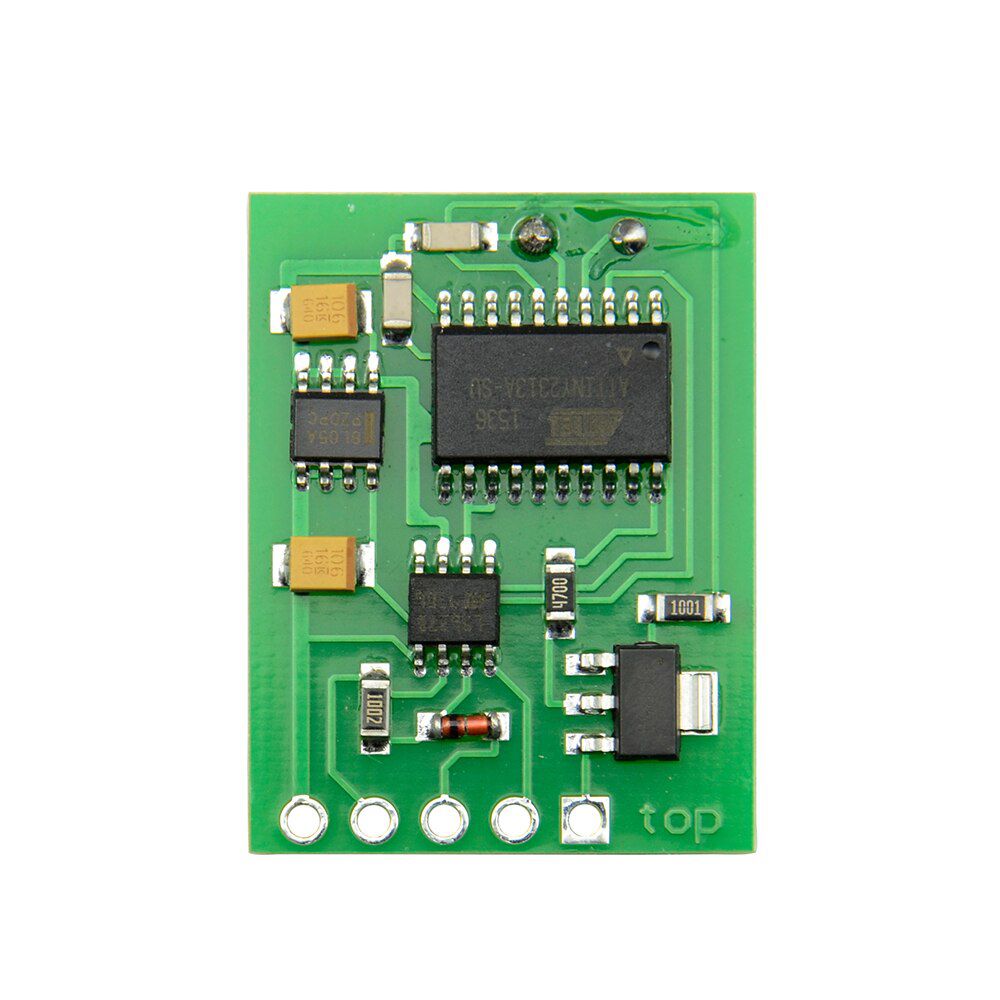

Immobilizer Emulator for Yamaha
The emulator of an immobilizer for motorcycles and scooters FOR Yamaha.
Works with all motorcycles and scooters Yamaha from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.
For emulator installation in the case of a regular immobilizer:
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.
Colouring of wires and their appointment:
Black (2 pcs.) GND
Red BATT (+12v)
Yellow IGN (+12v)
Gray LED (+5v)
Blue K-line Immo-ECU
