Ignition Coil Tester
Fast, simple and accurate way to determine the defects in the ignition coils. Automatic distinguishes different ignition coil type by auto switching control modes. Adjustable Frequency control ranging from 120Hz ~ 12 KHz. Safe and fallproof.
UKOBD2 Provide top quality Ignition Coil Tester, if you need Ignition Coil Tester, or have any questions about Ignition Coil Tester, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

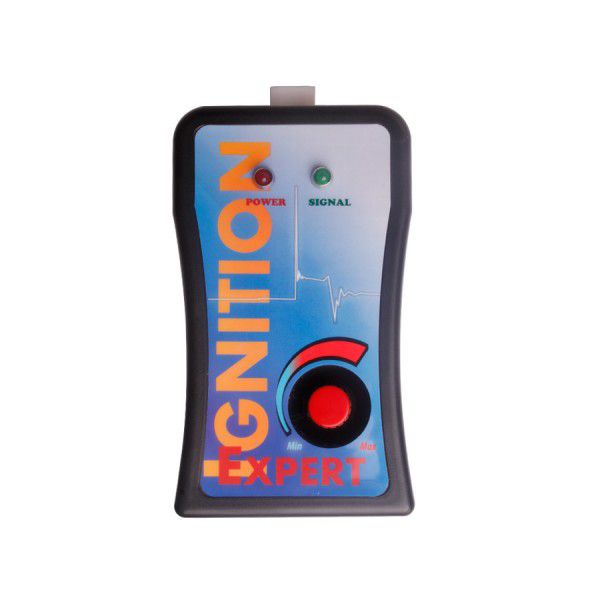

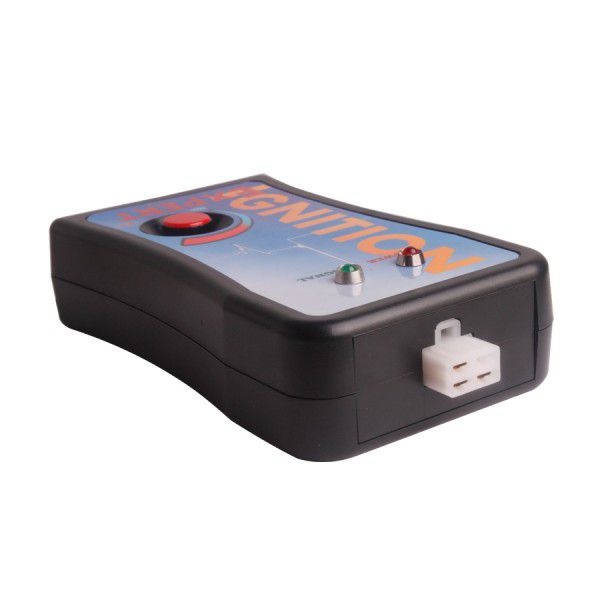

images of Ignition Coil Tester
Ignition Coil Tester
Applicable on coil-on-plug (COP), coil-near- plug (CNP), double ended coil-on-plug(DECOP) or wasted plug systems.
Simple operation:
Connect power from 12Volts car battery and the power LED will light up.
Insert the yellow banana plug to the yellow socket and connect the cable to the control terminal of the ignition coil.
Hook up the spark tester to the ignition coil.
Turn ON the frequency know and adjust the frequency from low to high (clockwise).
Turn back to low frequency and observe the spark color which should be bluish purple.
Increase the frequency gradually and observe the spark line.
It should be in a straight line when NORMAL. If the spark line is curved, it indicates that the coil is aging or there is an internal leakage.
Turn to maximum frequency until the coil is slightly warm, then turn down the frequency and observe the spark line
whether it is continuous or intermittent. If arcing sound is heard but no spark indicates that there is internal leakage.
Use Ignition Leak Checker to detect the source of the leak

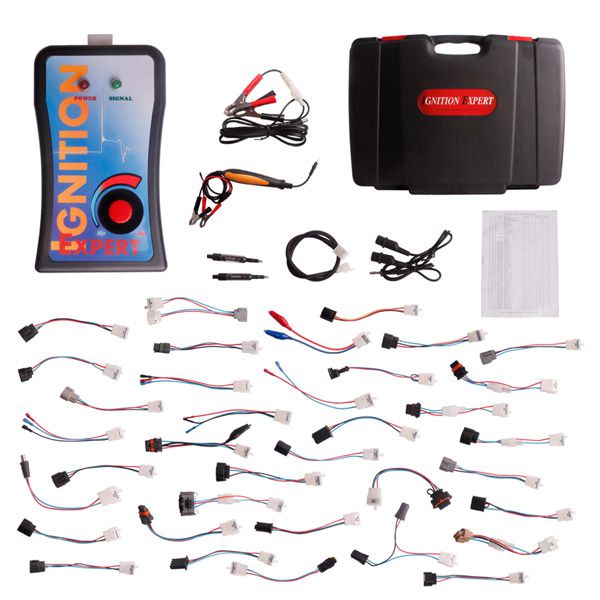

Package list:
1x Main Spark generator unit
2x Spark Tester
2x Extension probes (red & black each one unit)
1x Ignition Leak Checker
4x Extension cable (red, blue, green & black each one unit)
2x Crocodile Clip (red & black one each)
4x 3mm Female socket cable
2x 5mm Female socket cable
1x Carry case
Go to Buy: Ignition Coil Tester
