Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol

Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol

The CY300(VC300) Viecar OBDII Scan Tool is specially designed to work with all OBD II compliant vehicles, including those equipped with the next-generation protocol-Control Area Network (CAN).

UKOBD2 Provide top quality Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol, if you need Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol, or have any questions about Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

images of Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol

Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol

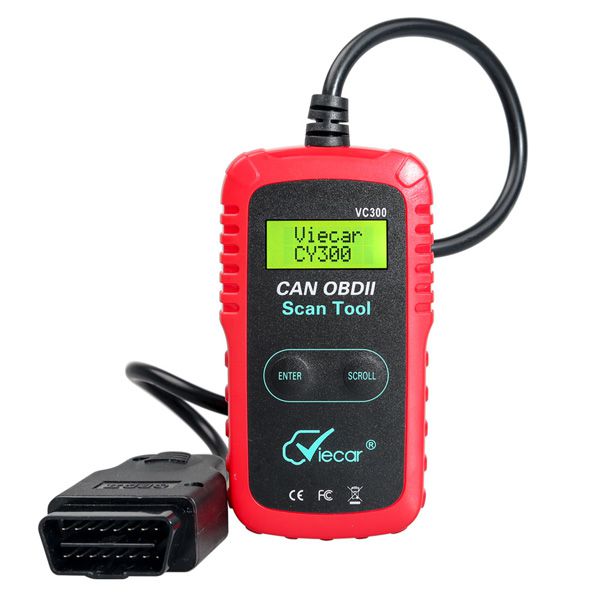

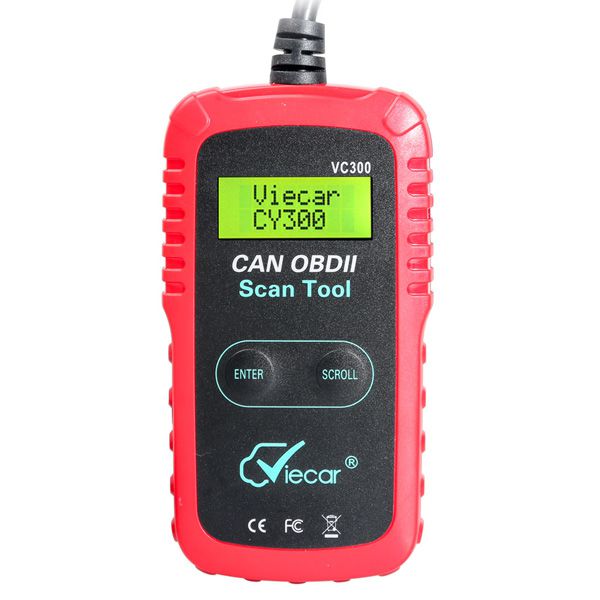

OBD2 Diagnostic Interface Tool VIECAR CY300 ELM327 OBD2 Scanner VC300 Supports SAE J1850 Protocol

The Viecar VC300 code reader supports all OBD II protocols, including the newly-released Controller Area Network (CAN) protocol.
Though it is small, it is able to retrieve same information as large expensive scanners!

A small number of gasoline vehicles (1994 and 1995 model year) are the OBD II compliant. To verify if a 1994 or 1995 vehicle with OBD II compliant or not, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles.
That is, if the vehicle is OBD II compliant, the label will designate "OBD II Certified". Additionally, Government regulations mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission
Control Information Label must state that the vehicle is OBD II compliant.

Viecar VC300 Supported OBD-II p rotocol

SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

Viecar VC300 Features :

Work with all vehicles after 1996 that are OBD II compliant (including CAN)
Read and clear generic and manufacturer specific Diagnostic Trouble Codes (DTCs) and turn off check engine light
Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
Review the emission readiness status of OBD monitors
Determine the malfunction indicator lamp (MIL) status
Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9
Easy to use with one plug-in
Free CD software with over 7000 DTC definitions
No batteries needed-powered via detachable OBD II cable

Viecar VC300 Specifications:

Display: Backlit LCD, 2-line, 8 characters
Operating Temperature: 0 to 50 C (32 to 122 F)
Storage Temperature: -20 to 70 C (-4 to 158 F)
Power: 10.0 to 15.5 Volts provided via vehicle battery
Dimensions: Length 4.4" (113 mm) Width 2.9" (74 mm) Height 0.83" (21mm)
Weight: 281g

Package Includes:

1pc x CY300 (VC300)Automobile diagnostic

Go to Buy: Latest VIECAR CY300(VC300) ELM327 OBD2 Diagnostic Scanner Supports SAE J1850 Protocol

Tags: VIECAR CY300, VIECAR VC300 , VIECAR ELM327 , VC300 OBD2
