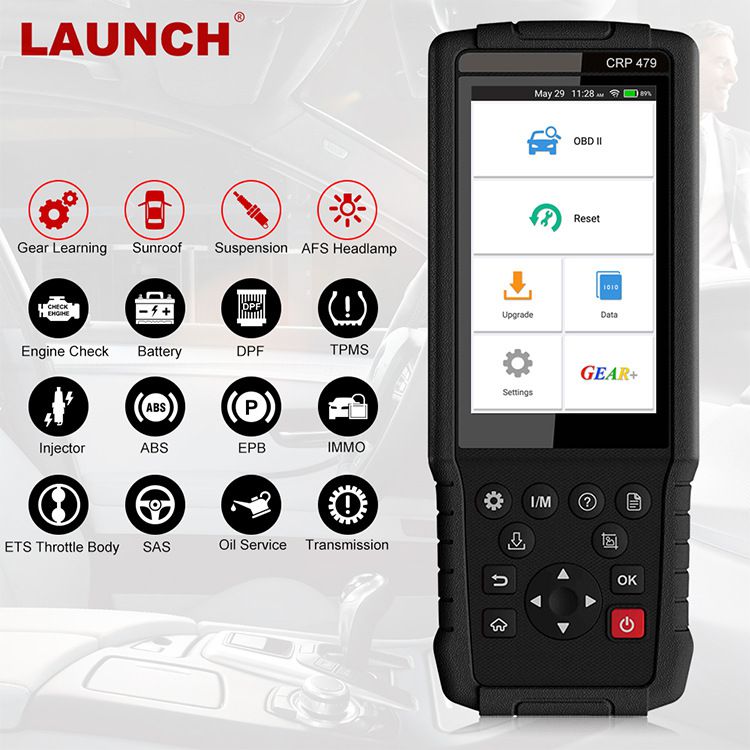

LAUNCH X431 CRP479 OBD2 Scanner

LAUNCH CRP479 is an evolutionary professional solution for 12V car OBDII/EOBD/JOBD diagnosis and 15 kinds of full reset maintenance service. It inherits from LAUNCH's advanced diagnosing technology and is characterized by covering 50 brands of vehicles, featuring powerful functions, and providing precise test result.

Why You Need LAUNCH CRP479 OBD2 Scanner

1.Powerful Diagnose Function can solve 98% problem for your car.
All OBD2/EOBD/JOBD Model+Engine Diagnosis+ 15 Reset Function,
covering over 50 prevailing models from Asia, America and Europe.

2.Specification :5.0’IPS touch screen,One-Click Wifi update, Android 7.0 System, 16GB storage

3.Diagnose Report Print Share Via email

4.Warranty: 5-year Quality warranty , one year free update

LAUNCH CRP479 OBD2 Scanner Supported Language:

English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korea

The device default language is English , you can switch the supported language freely by choose setting menu.

4 Live Data Stream Combine in 1 Graph

Help you find out the problem more easily.

15 Kinds Reset Functions Of LAUNCH CRP479

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
If your new sensor is not original, please contact us.

7.IMMO Key Programming

The unique car Key Programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset:

Try reset electronic Suspension air ride with the massage system close all doors koeo flip through systematize go to suspension reset iron off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount o fair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning:

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

LAUNCH CRP479 ALL 10 Mode OBDII/EOBD Diagnostic Functions for Engine:

1.Reading Codes:
Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset:
Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream:
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status:
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream:
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data:
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test:
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8.On-Board Monitor Test:
Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information:
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test:
Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Function Display

How To Use LAUNCH CRP479

1.Register an new account, Download the vehicle brands
2.Connect device with your car
3.Start Diagnose

LAUNCH CRP479 Feedback Step

You can upload Feedback when the device work improperly. Our engineer will online help.

LAUNCH CRP479 Share Report Step

Diagnostic data via email share , you can print car diagnostic report via printer.

One-Click Update LAUNCH CRP479:

Choose the software you want, click update, Once download is finished, the software packages will be installed automatically.

LAUNCH CRP479 OBD2 Scanner Supported Brands:

For Engine Scan:
Support Standard OBD-II, EOBD/JOBD Protocols Vehicle

For Reset Function :
For Demo, for ACURA, for Alfa Romeo, for Audi，for BMW, for BUGATTI, for Chrysler，
For Citroen,for DACIA, for Daewoo, for Euroford, for Fiat, for Ford, for Mitsubishi, for Nissan, for Opel，for Peugeot, for Porsche , for Renault, for SAAB, for SAMSUNG, for Seat, For Skoda, for Smart, for Sprinter, for Subaru, for Suzuki, for Tlisuzu, for SAAB, for SAMSUNG for Toyota, for Vauxhall, for Volvo, for VW, for USA GM, for GMsa, for Honda, for Hyundai, for Infiniti, for Isuzu, for Jaguar, for Kia, for Lancia, for Landrover, for Lexus, for Lincoln, for Mazda, for Mercedes , for Mini...

These special function NOT for all car models.please send your car brand, model and release year , I will check for you.

Package List:

1 * Main Unit
1 * OBDII Diagnostic Cable
1 * DC 5V Charging Cable
1 * User Manual
1 * Padded Carry Case
