Mini Bullet 1080P HD AHD Camera 2MP StarLight 0.0001 Lux Security CCTV Video Security Camera 3.7mm Lens
Mini Bullet 1080P HD AHD Camera 2MP StarLight 0.0001 Lux Security CCTV Video Security Camera 3.7mm Lens, Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable. Wholesale Mini Bullet 1080P HD AHD Camera
UKOBD2 Provide top quality Mini Bullet 1080P HD AHD Camera 2MP StarLight 0.0001 Lux Security CCTV Video Security Camera 3.7mm Lens, if you need Mini Bullet 1080P HD AHD Camera 2MP StarLight 0.0001 Lux Security CCTV Video Security Camera 3.7mm Lens, or have any questions about Mini Bullet 1080P HD AHD Camera 2MP StarLight 0.0001 Lux Security CCTV Video Security Camera 3.7mm Lens, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

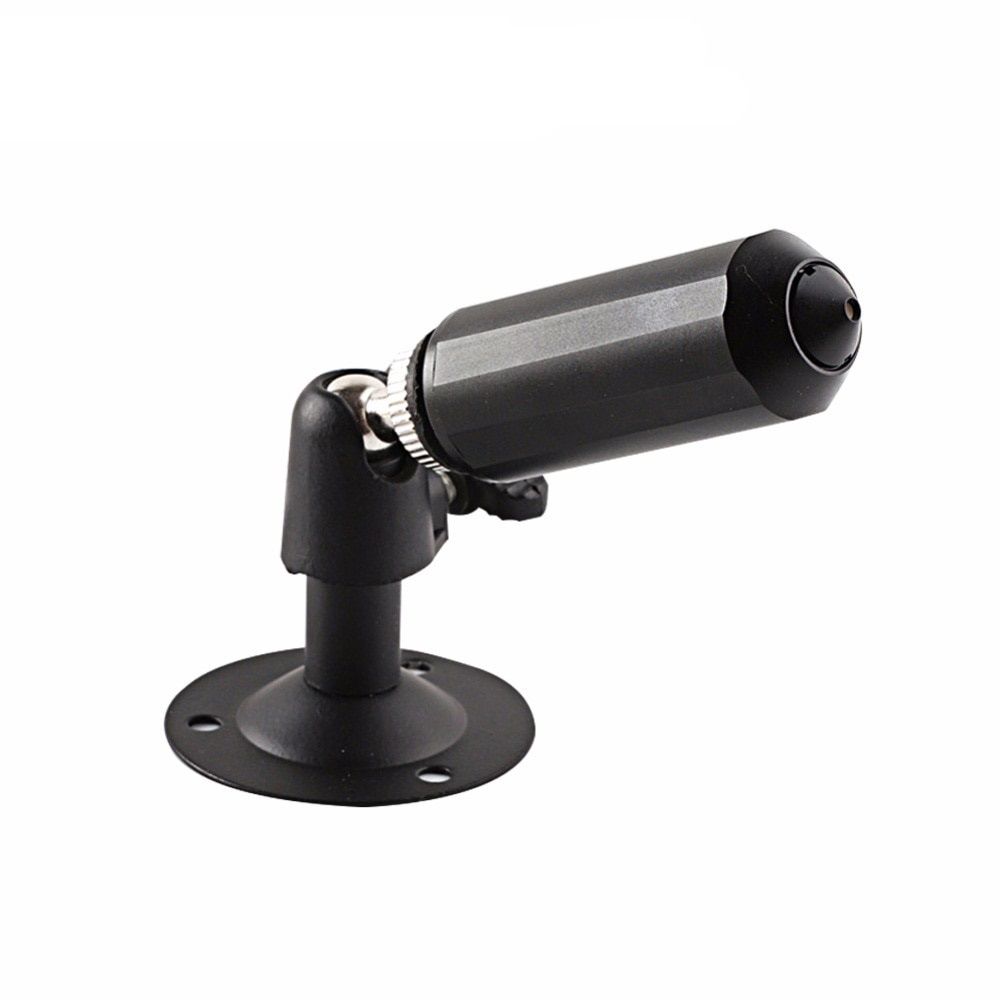

images of Mini Bullet 1080P HD AHD Camera 2MP StarLight 0.0001 Lux Security CCTV Video Security Camera 3.7mm Lens
Why AHD(Analog High Definition)?
1.Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable.
2.HD video transmission without video quality loss & delay
3.Extremely long transmission distance(500m)
4.The same connection structure as original analogue system without cable (Coax / UTP) changing
5.High video quality on AHD 1080P
AHD is short for Analog High Definition
Coaxial transmission, super long range, more than 500 meters by 75-3(HD-SDI can only reach less than 100 meters)
Advantages of Our HD AHD camera
1. Good compatibility
Support AHD output and CVBS output, can work with 1080P AHD DVR (Real 1080P output)
2. Convenience
Transmission via Coaxial cable, no need to change wires if changed from Analog cameras
3. Clear vision but Good prices
1080P, resolutoin up to 1920(H) x 1080(V), more than 2000TVL
Prices lower than HD-SDI and CVI
Features Of the Camera:
AHD-MS3071080
Horizontal Resolution :2.0 Mega Pixel 1080P
Effective Pixel:PAL : 1920*1080@25fps; NTSC : 1920*1080@30fps
Main Features
Min. Illumination :StarLight 0.0001 Lux (F1.2)
Signal System: NTSC/PAL
Lens: Standard 3.7mm
Camera Type: Indoor Use
Power Supply: DC12V/75MA
Specification Of the Camera:
| Model | AHD-MS3071080 |
| Horizontal Resolution | 2.0/1.3 Mega Pixel |
| Effective Pixel | PAL : 1920*1080@25fps OR 1280*960@25fps |
| NTSC : 1920*1080@30fps OR 1280*960@25fps | |
| Min. Illumination | StarLight 0.0001 Lux (F1.2) |
| Signal System | NTSC/PAL |
| Electronic Shutter | PAL:1/50~1/100000s;NTSC:1/60~1/100000s |
| Max Transmission Distance | Common 75-3 lines can be up to 500m |
| Lens size | 3.7mm |
| S/N Ratio | More than 46dB |
| Gamma | 0.45/1.0 |
| Exposure | Auto |
| OSD | N/A |
| White Balance | Auto White Balance |
| Backlight | OFF/ON/BLC/ HLC |
| Pic Adjust | Mirror/Brightness/Contrast/Sharpness/Hue/Gain |
| ATR | ON/OFF |
| Motion Det | OFF/ON(Detect sense/ Area Sel) |
| Privacy Masking | OFF/ON (4 Zone) |
| Day/Nigh | True Day and Night (Auto/ Day / Night / Ext. D&N) |
| 2D-NR | OFF/ON (0-15/16 level) |
| Camera ID | OFF/ON |
| Sync. System | Internal |
| Audio Output | Optional |
| Video Output | 1 Vp-p / 75 Ohms |
| Working Conditions | -20~50Degree/0-95% Humidity |
| Power Supply | DC12V/75MA |

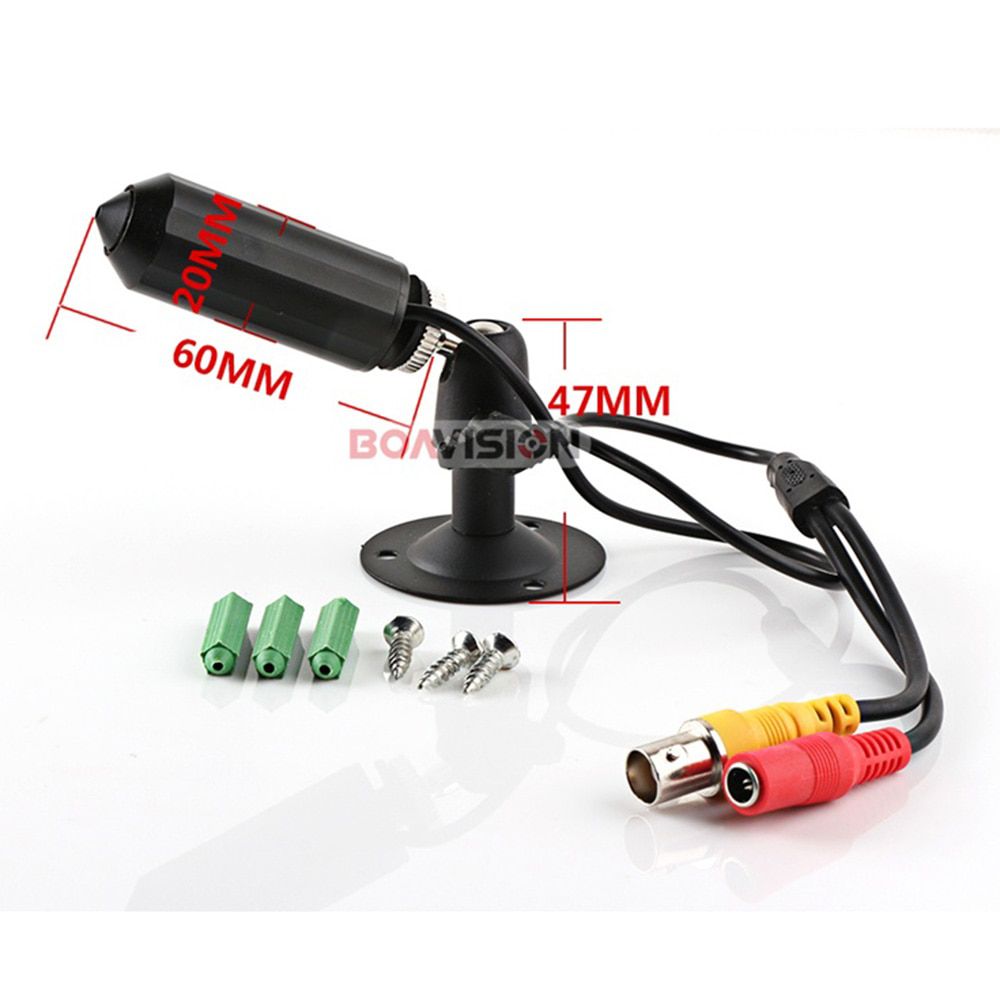

| Size | 60*20mm |

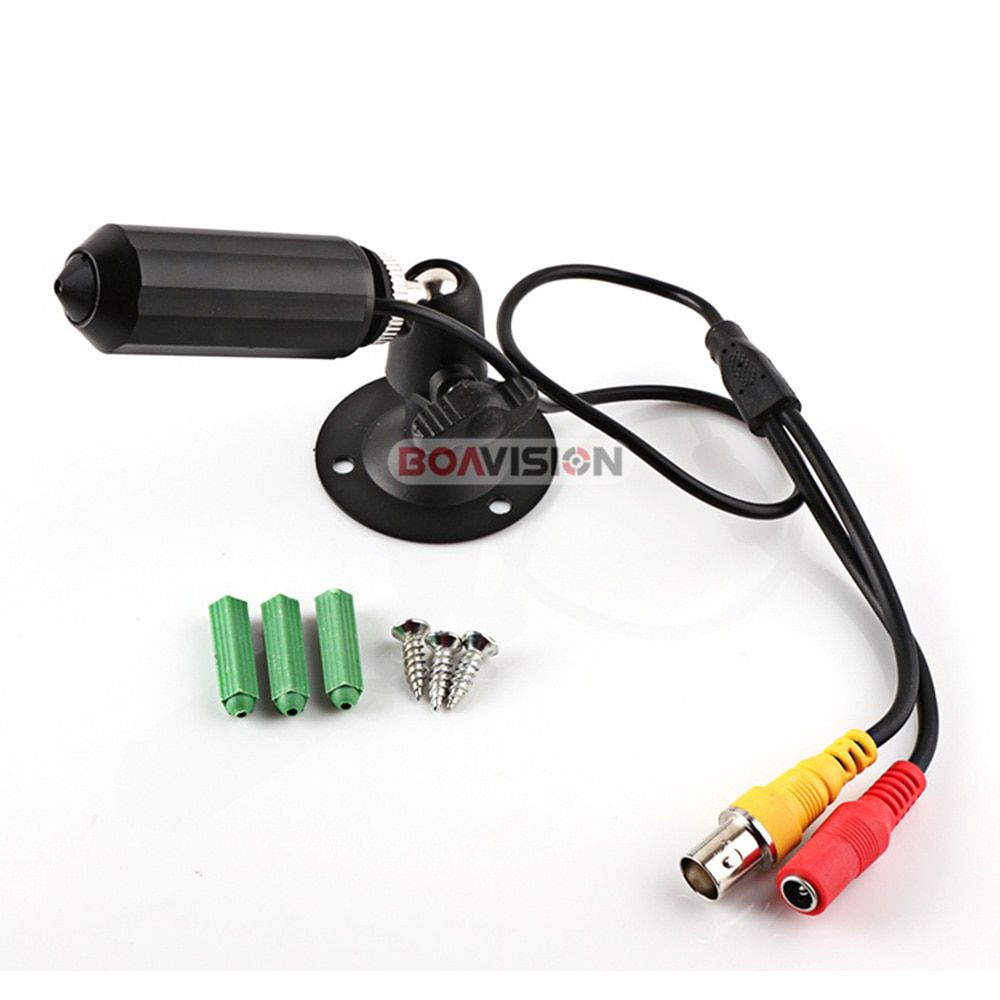

1x AHD 1080P mini Camera
1x Bracket&Screws
This one is AHD Camera, if you use it with DVR, the DVR must support the AHD-H(1080P)
