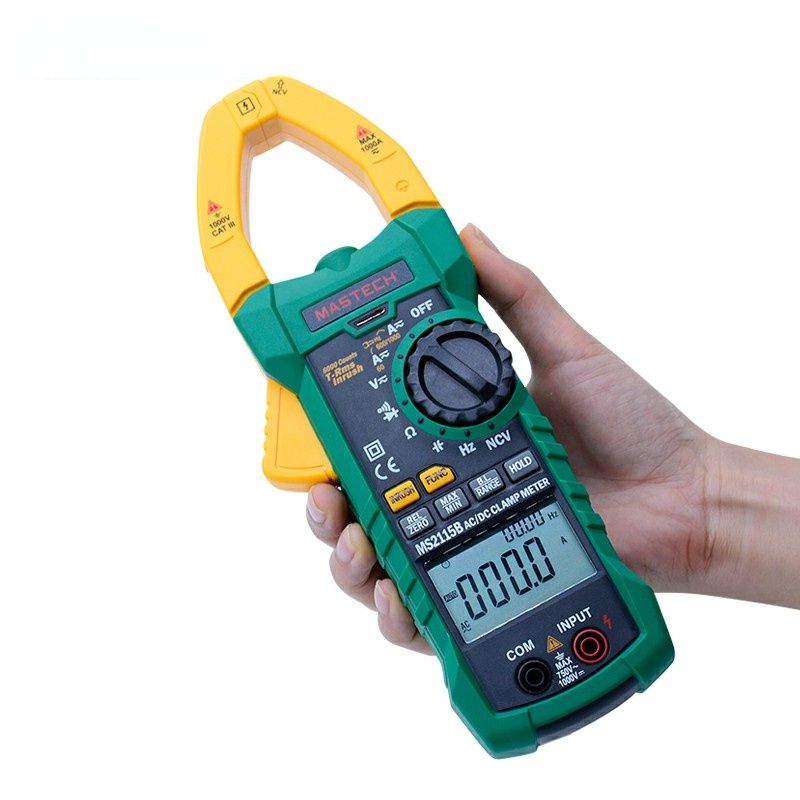

MS2115B Digital current clamp meter AC/DC current voltage 6000 Counts NCV trms USB clamp meter mulitimeter tester 1000A
Please note:send without battery!!!
Features:

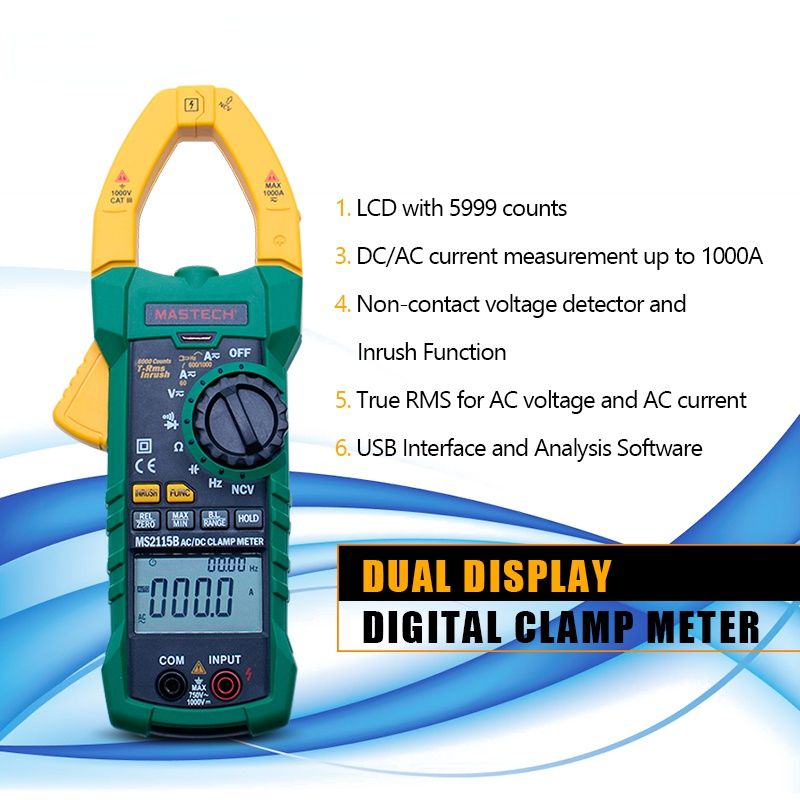

Dual Display with 6000 counts
Jaw size up to Φ40mm/1.6 inch
Auto Ranging and Manual Ranging
DC/AC current measurement up to 1000A
Tests AC/DC voltage and current, resistance, capacitance, frequency and duty cycle
Relative Measurement
Diode 2.7V
Continuity Buzzer <50 ohm
MAX/MIN Value Measurement
Data Hold
Display Backlight and Work Light
Low Battery Display
Auto Power Off
True RMS (True Root mean Square Measurement)
NCV (Non-Contact Voltage Detector)
Inrush (Inrush Current Measurement)
USB interface (Windows OS)
Specifications:
| Specifications | Range | Accuracy |
| DC Voltage | 600mV/6V/60V/600V | ±(0.5% + 5) |
| 1000V | ±(0.8% + 4) | |
| AC Voltage | 600mV/6V/60V/600V | ±(0.8% + 5) |
| 750V | ±(0.8% + 4) | |
| DC Current | 60A/600A/1000A | ±(2.5% + 8) |
| AC Current | 60A/600A/1000A | ±(2.5% + 8) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ | ±(0.8% + 3) |
| 6MΩ/60MΩ | ±(1.2% + 3) | |
| Capacitance | 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF | ±(3.0% + 5) |
| Frequency(From Clamp) | 60Hz/600Hz/6KHz | ±(1.5% + 5) |
| Frequency(AC Voltage) | 60Hz/600Hz/6KHz/60KHz | ±(1.5% + 5) |
| Logic Frequency | 60Hz/600Hz/6KHz/60KHz/600KHz/6MHz/60MHz | ±(0.3% + 5) |
| Duty Cycle | 10%~90% | ±3.0% |
Package List:
1*MS2115B DC/AC Clamp Meter (with test leads)
1*USB cable
1*Software CD
1*User manual
1*Pouch bag
