New CDP DS150 2016R1 OBD2 Vehicle Auto Check Scan Tool Without Bluetooth

The DS150 diagnostic tool used with a PC or Pocket PC and DS150 powerful CARS Diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.

UKOBD2 Provide top quality New CDP DS150 2016R1 OBD2 Vehicle Auto Check Scan Tool Without Bluetooth, if you need New CDP DS150 2016R1 OBD2 Vehicle Auto Check Scan Tool Without Bluetooth, or have any questions about New CDP DS150 2016R1 OBD2 Vehicle Auto Check Scan Tool Without Bluetooth, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

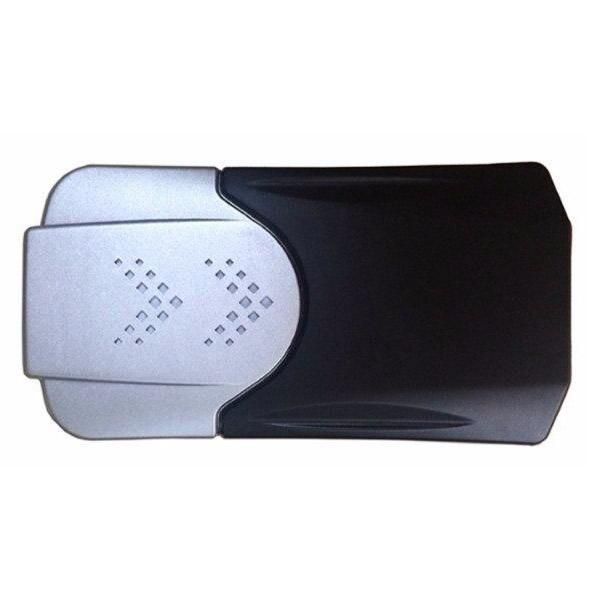

images of New CDP DS150 2016R1 OBD2 Vehicle Auto Check Scan Tool Without Bluetooth

New CDP DS150 2016R1 OBD Vehicle Bluetooth Auto Check Scan Tool Without Bluetooth

The software version of this CDP DS150 is 2016R1, this is the latest version, support both cars and Trucks diagnostic, and support multi-languages.

CDP DS150 is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.

With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TruckS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.

A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TruckS packages.

Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).

Functions of CDP DS150:

• Manufacture specific serial diagnose
• Scan function
• EOBD/OBDII communication
• Serial Systems
• Engine
• Ignition
• Climate
• ABS
• Service reset
• SRS
• Immobilizer
• Instrument
• Comfort system
• Gear-box etc

FLIGHT RECORDER

With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. TCS TCS is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .

MULTI COLOUR INDICATOR

With the multi colour indicator on TCS TCS, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the TCS TCS is in communication with the vehicle control unit.

VOLTAGE CHECK

When TCS TCS is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, TCS TCS will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

CHASSIS NUMBER VIN

In our CARS software, we have a smart function that allows you to read out the chassis nuMBer from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

ISS

Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.

ISI

Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.

REPORT FUNCTION

Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.

OBD-FUNCTIONS

CDP DS150 is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.

UNIVERSAL

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform

HELP FUNCTION

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.

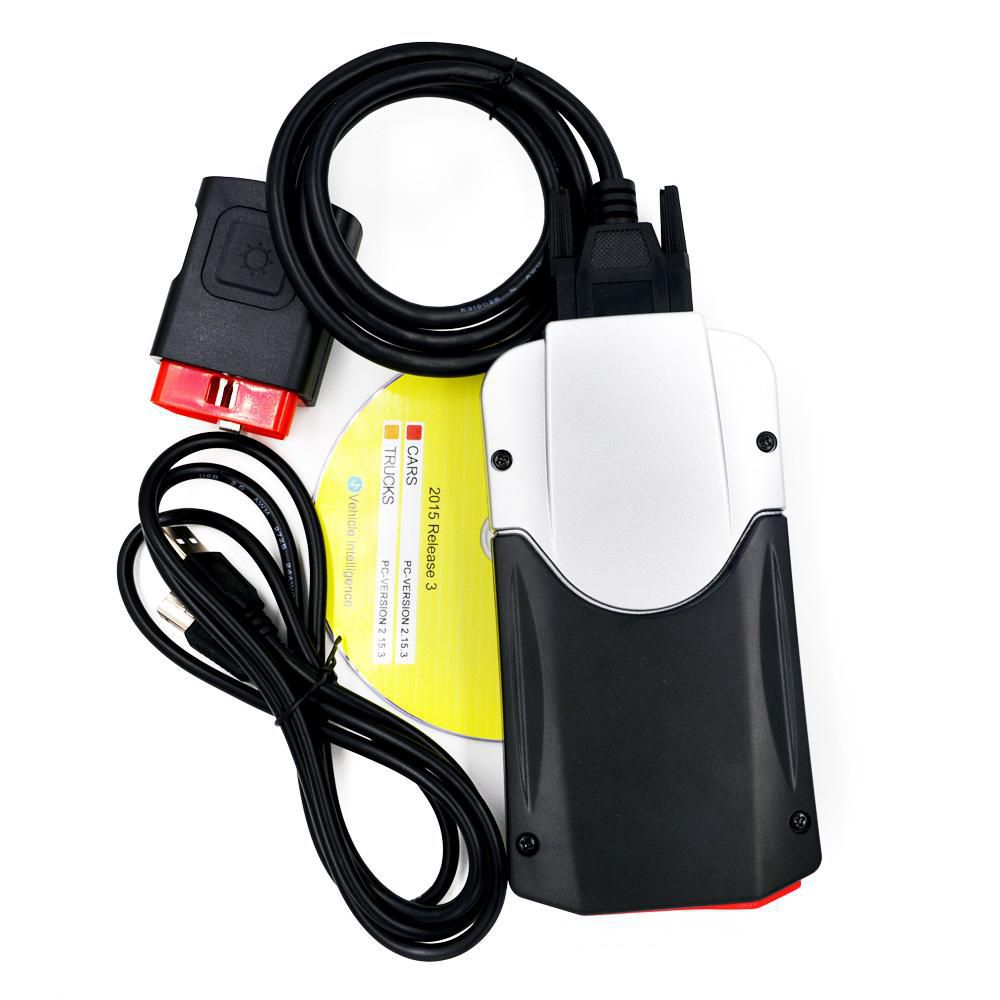

Package including:

• 1pc X TCS + with OBD2 cable
• 1pc x USB Cable
• 1pc x CD

Supported car models of CDP DS150:

for AlfaRomeo, for Audi, for BMW, for Cadifor llac,for Chevrolet,for Chrysler,for Citroen, for Dacia, for Daewoo,for Dodge,for Ferrari,for Fiat,for Ford, for Honda,for Hyundai,for Isuzu,for Iveco,for Jaguar,for Jeep,for Kia,for LaMBorfor ghini,for Lancia,for LandRover,for Lexus,for Lotus,for Mahundra/for Renault,for Maserati,for Mazda,for Mercedes,for M.G,for Mini,for Mitsu.bishi,for Nissa.n,for Opel/for Vauxhall,for Peugeot,for Porscher,for Renault,for Rolls-royce,for Rover,for Saab, for Samsung, for Seat, for Skoda, for Smart, for Ssang Yong, for Sub-aru, for Suzuki, for Toyota. for VW etc... ( And more car models will be released )

Supported truck models of CDP DS150:

for Allison, for Chevrolet, for Citroen, for Dacia, for DAF, for Fiat, for Ford, for Hyundai, for Isuzu, for Iveco, for Ive.coTrucks, for Kia, for Man, for Manbus for chassis, for Mazda, for Mercedes,

for Mitsu.bishi, for Niss.an, for Opel/ for Vauhall, for Peugeot, for Renault,

for Scania, for Scan.ia for BusChassis, for Seat, for Sko.da, for Toy.ota, for Trail.ers, for Vol.ksw.agen, for Volvo Bus Chassis, for Volo.v trucks etc...(And more truck model will be released)

​

Go to Buy: New CDP DS150 2016R1 OBD2 Vehicle Auto Check Scan Tool Without Bluetooth
