New Original YH-718 Loop Volt and mA Signal Source Process Calibrator Meter Tester
YHS718 voltage and current calibrator (Volt / mA Calibrator) can be used for calibration, repair and maintenance the calibrated instrument which has 0-100mV/10V voltage signal or 0-20mA loop current, such as electric actuators, hydraulic actuators, pneumatic actuators, electric actuator mechanism, electricity - gas valve positioners and valve positioners, etc.
UKOBD2 Provide top quality New Original YH-718 Loop Volt and mA Signal Source Process Calibrator Meter Tester, if you need New Original YH-718 Loop Volt and mA Signal Source Process Calibrator Meter Tester, or have any questions about New Original YH-718 Loop Volt and mA Signal Source Process Calibrator Meter Tester, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

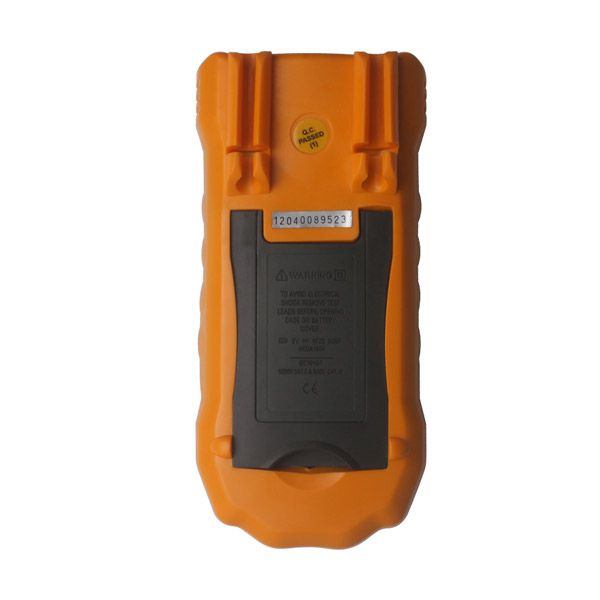

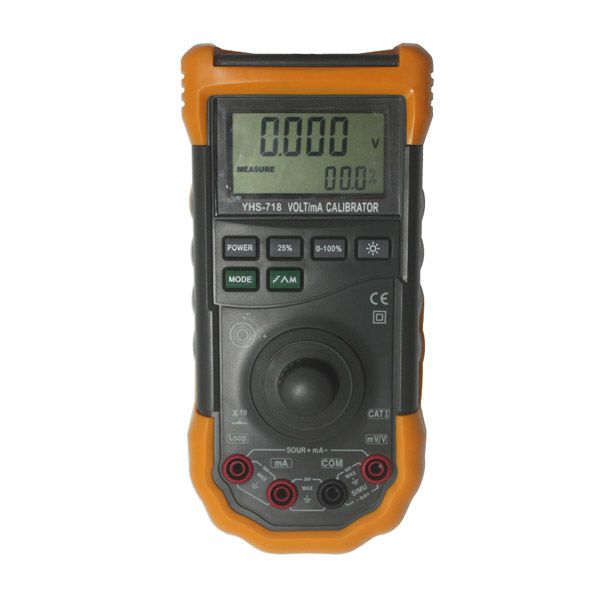

images of New Original YH-718 Loop Volt and mA Signal Source Process Calibrator Meter Tester
Feature:
1. Rapid induction knob, Single-handed operation possible
2. 0.02% accuracy and 1μA/10μV resolution
3. Steps and ramp output optional
4. 24V loop Power and processing mA measurement
5. mV/V voltage output, measurement functions; showing the percentage of mV/V and range
6. mA current source output, simulation and measurement functions; showing the percentage of mA and range
7. Rechargeable management module built-in, able to charge while working1. Rapid induction knob, Single-handed operation possible
Current output mode:
SOURCE mA mode: Calibrator outputs current
SIMULATE mA mode: Calibrator simulates an external power supply with a two-wire transmitter
Voltage output mode:
Instrument outputs a high - precision voltage signal 0-100mV/0-10V; Voltage signal output resolution up to 10μV
Automatic ramp current output:
The calibrator can periodically output a changing current / voltage signal applying to the external load or loop device continuously according to the time interval automatically.
Technical specifications:
Loop Power :24V—26V
DC mA (source output / simulation / measurement):
Range: 0 - +24 mA;
Resolution: 1μA;
Accuracy: ± (0.02% +4 words)
DC voltage (output / measurement):
Range: 0 - +10 V;
resolution: 1mV;
Accuracy: ± (0.02% +4 words)
Range: 0 - +100 mV;
Resolution: 10μV;
Accuracy: ± (0.02% +4 words)
Go to Buy: New Original YH-718 Loop Volt and mA Signal Source Process Calibrator Meter Tester
