Super Scanner ET601 OBD II/EOBD Color Code Reader

Super Scanner ET601 OBD II/EOBD Color Scanner is a color screen code scanner for all OBDII/EOBD car model from USA, European and Asia.

UKOBD2 Provide top quality Super Scanner ET601 OBD II/EOBD Color Code Reader, if you need Super Scanner ET601 OBD II/EOBD Color Code Reader, or have any questions about Super Scanner ET601 OBD II/EOBD Color Code Reader, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

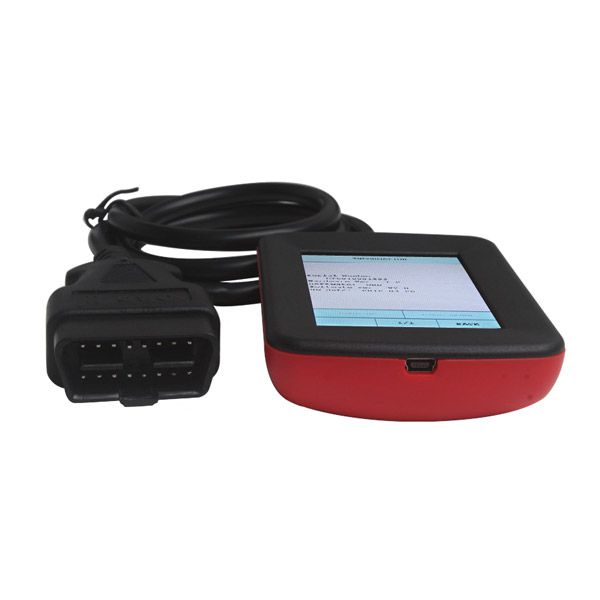

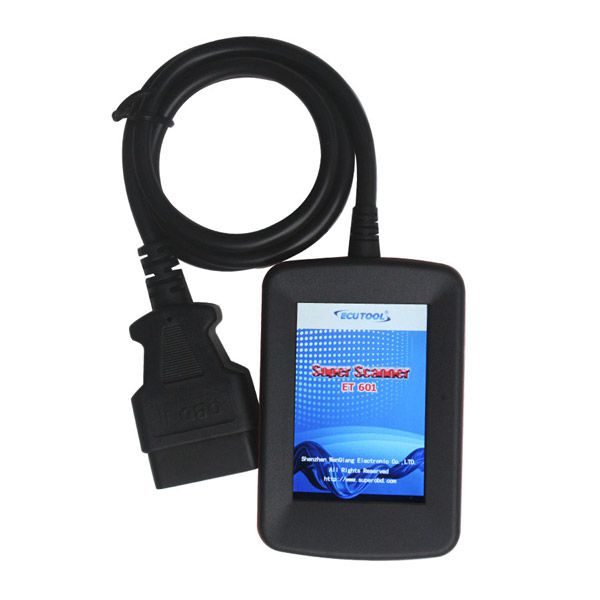

images of Super Scanner ET601 OBD II/EOBD Color Code Reader


Super Scanner ET601 OBD II/EOBD Color Scanner


ET601 Specifications:

A) Display: Color , 240 x 320 pixel display with contrast adjustment
B) Operation Temperature: 20-75 degree
C) Stroge Temperature: 40-120 degree
D) Power: 8V 18V

ET601 Features & Functions:

Works on all 2001 and later OBDII compliant PETROL European vehicles
Works on all 2004 and later OBDII compliant DIESEL European vehicles
Works on all 1996 and later OBDII compliant US and Asian vehicles
Easily determines the cause of the "Check Engine Light ( MIL)"
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Displays live O2 sensor test data
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBDII protocols

Protocols covered:

SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 91412 (5 baud init, 10.4 kbaud)
ISO 142304 KWP 2000 (5 baud init, 10.4 kbaud)
ISO 142304 KWP 2000 (fast init, 10.4 kbaud)
ISO 157654 CAN (11 bit ID, 500 kbaud)
ISO 157654 CAN (29 bit ID, 500 kbaud)
ISO 157654 CAN (11 bit ID, 250 kbaud)
ISO 157654 CAN (29 bit ID, 250 kbaud)

Package including:

1pc x ET601 main unit
1pc x USB Cable
1pc x User's Manual
1pc x CD

Go to Buy: Super Scanner ET601 OBD II/EOBD Color Code Reader
