2024 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski
Support Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform are available.Supports Car, HD, E-Car, MOTO, Marine (jet-ski) ImmobilizerBuilt-in Can FD, Doip, Get Free MP001, P004 Adapters, Renault Adapter, and Choose one for free from Key Sim or Motorcycle Adapter Set2 Years Free Update
UKOBD2 Provide top quality 2024 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski, if you need 2024 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski, or have any questions about 2024 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

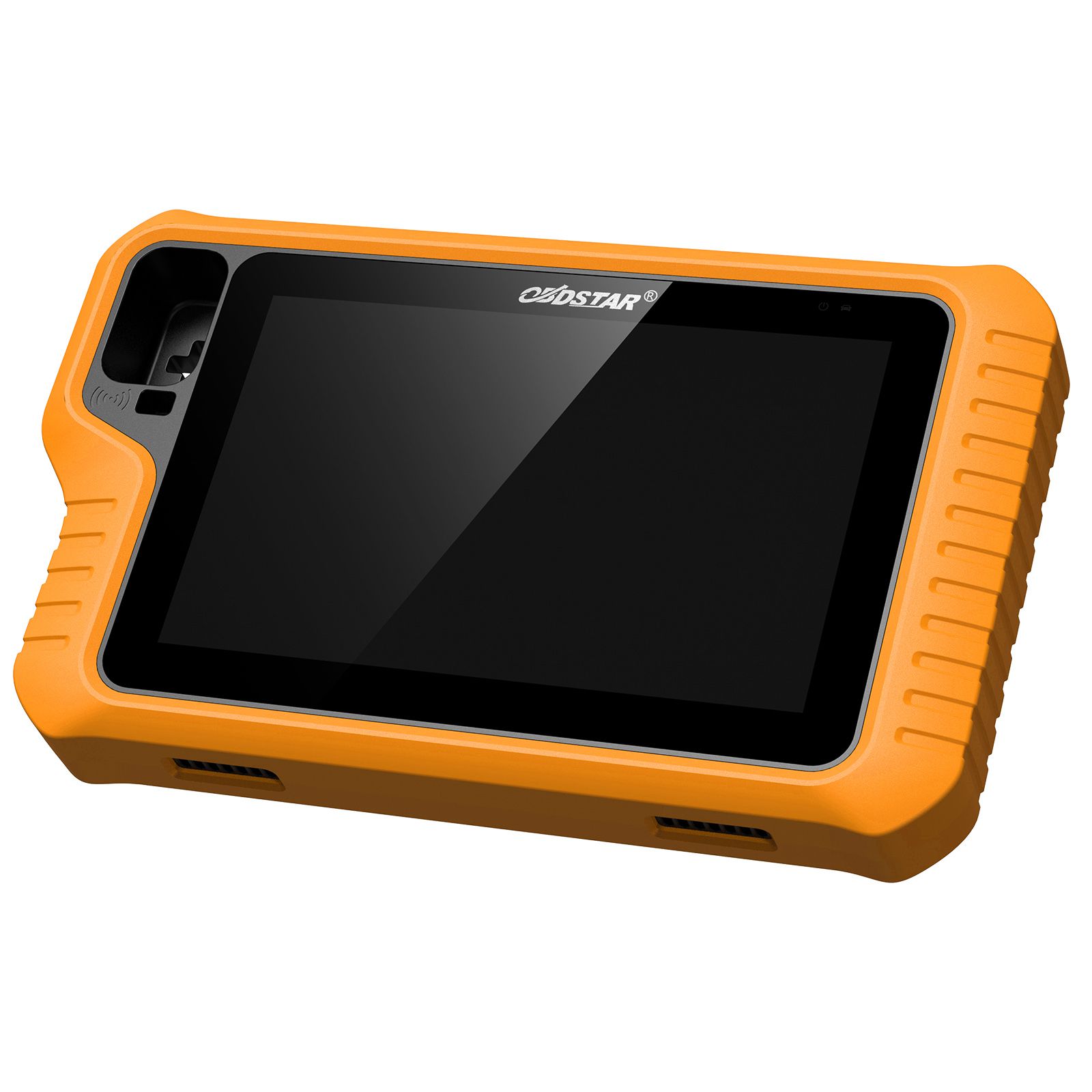

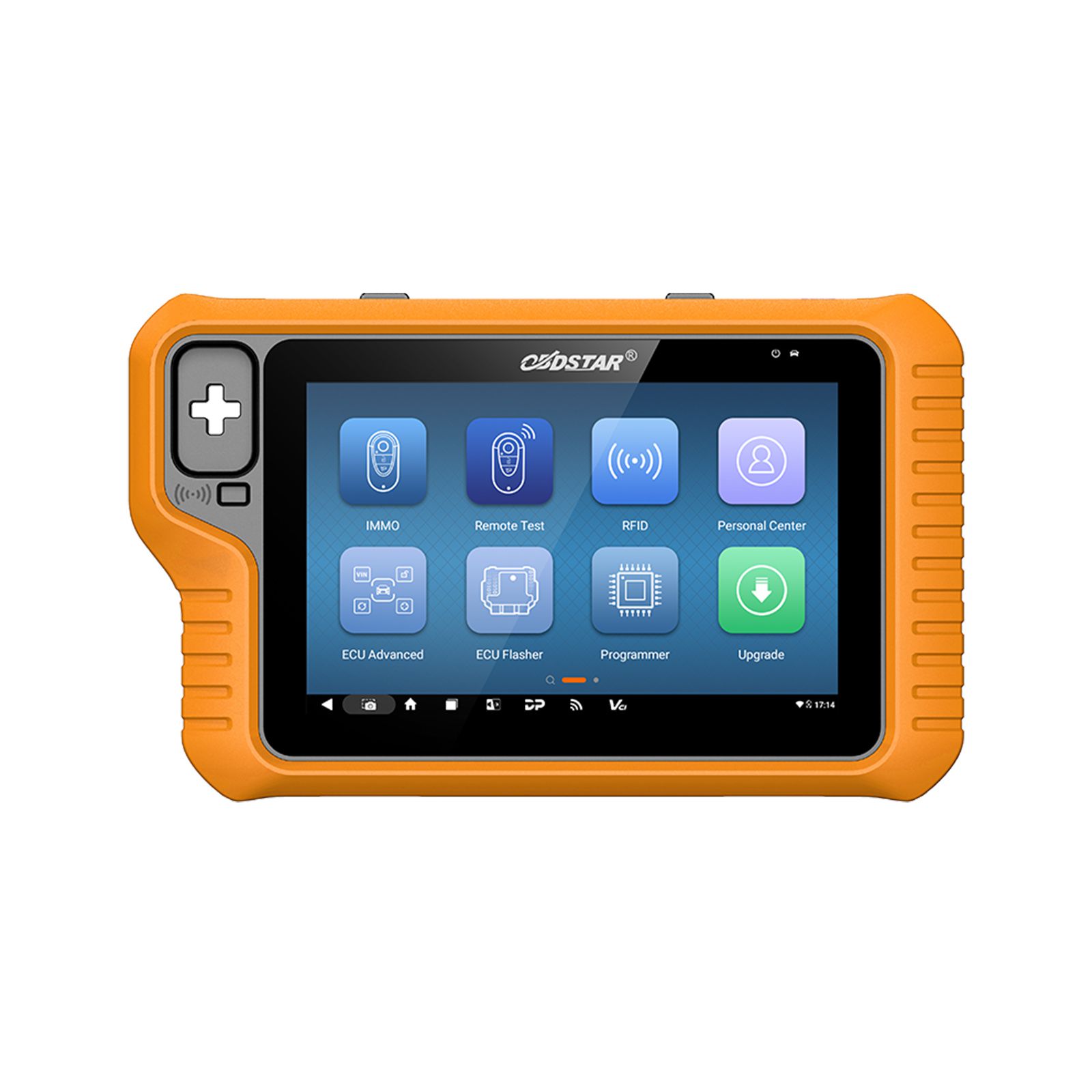

images of 2024 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski
OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, Jet Ski, etc. A good helper for an automotive locksmith master.
Highlights:
1. Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
2. Supported vehicles: Car, HD, E-Car, MOTO, Jet Ski
3 Two Years Free Update Online, Update Version of X300 DP Plus
4. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5. With MP001 (replace P003/P003+ Adapter), P004 Adapter and Renault Adapter in Default Package
6. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
7. Paid Software Service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn your G3 to a powerful all in one tool. With ECU Cloning license, G3 will work as same as DC706.
8. Please Check
OBDSTAR X300 Classic G3 User Manual
OBDSTAR X300 Classic G3 Vehicle List
Notice:
1. Language: English Only
2. Optional Gift: Key SIM emulator or Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) Please select the gift you prefer when place order
Advanced Functions
1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for Renault CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.
OBDSTAR X300 Classic G3 Vs. X300 DP Plus:
Product | KEY Classic G3 | X300 DP PLUS | ||
Specifications | Operation system | Android 11 | Android 5.1.1 | |
OTA | V | × | ||
Screen recording | V | |||
Wireless screen casting | V | × | ||
CPU | Dual-core Cortex-A72 +Quad-core Cortex-A53 | Exynos4418 qual core ARM cortex A9 | ||
Battery | 9000mA | 3700mA | ||
Storage capacity | 4+64GB | 1+32GB | ||
LCD | 8.0 inch fully laminated sunlight readable screen | 8.0 inch | ||
LCD resolution | 1280*800 | 1280*800 | ||
Camera | Rear camera 800W pixels,auto-focus | Rear camera 500W pixels | ||
Bluetooth | Bluetooth 5.0 | |||
External interfaces | RJ-45v | × | ||
HDMIV | X | |||
TYPE-A.TYPF-C | TYPE-A,TYPE-C | |||
WiFi | Dual-band 2.4G/5GHZ | 2.4G | ||
VCl | STM32H723 | STM32F407 | ||
CANFD built inv | CANFD Adapter Required | |||
DOIP built inv | × | |||
Fault Tolerant CAN built inv | × | |||
All other common protocol types | All other common protocol types | |||
RFID | Built inv | P001 Required | ||
Remote Test | Built inv | RT100 Required | ||
Renault Converter | Built inv | Renault Converter Required |
OBDSTAR X300 Classic G3 FAQ:
Q1: Can the X300 Classic G3 be equipped with Airbag Reset, Cluster Recalibration, ECU Flasher and other functions?
A1: Yes, please contact us or our our dealers for details.
Q2: I would like to have the list of supported models & features of this tool, where can I get it?
A2: You can download the coverage of the tool from the "Function Manual" on the product page of our official website, and we usually synchronize the update at the end of each month.
Q3: Is X300 Classic G3 compatible with all the functions of KEY MASTER DP PLUS?
A3: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of KEY MASTER DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.
Q4: Can I use the accessories of an old product I have previously purchased?
A4: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:
1. P002 adapter, P003 adapter, Key Sim adapter;
2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;
3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;
4. FCA 12+8 CABLE;
5. TOYOTA 8A cable, FORD all key lost cable.
Q5: What is ECU Unlock function of X300 Classic G3?
A5: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.
