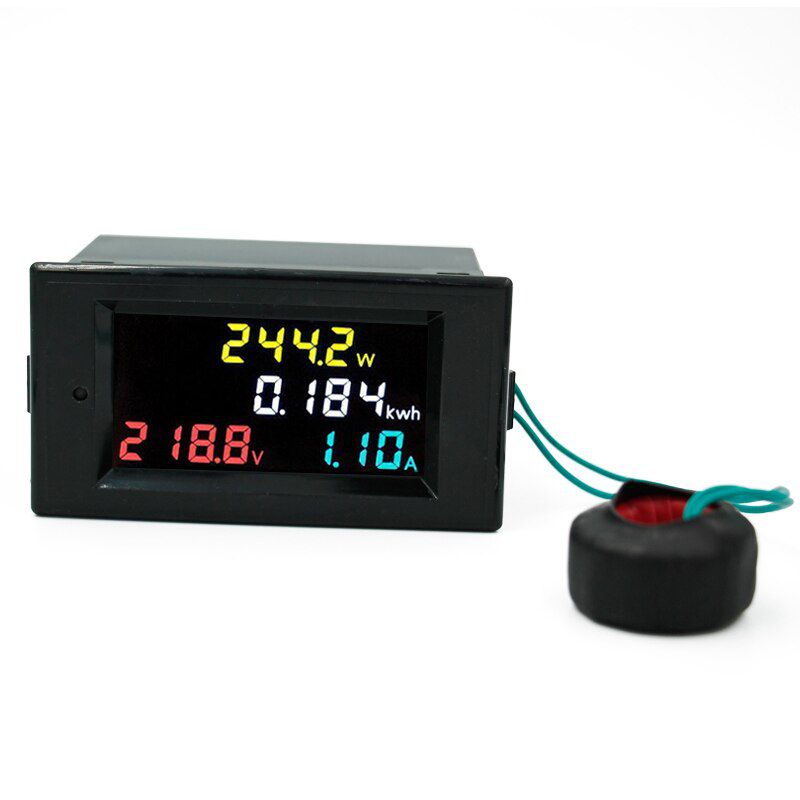

multi-funciton digital meter can measure and display AC voltage, AC current, active power and electric energy at the same time. The display part of meter use high-definition color LCD screen.

UKOBD2 Provide top quality 5pcs/lot Digital HD Color Screen 180 Degrees Flawless LED display AC Voltmeter Ammeter Power Energy Meter Current Monitor, if you need 5pcs/lot Digital HD Color Screen 180 Degrees Flawless LED display AC Voltmeter Ammeter Power Energy Meter Current Monitor, or have any questions about 5pcs/lot Digital HD Color Screen 180 Degrees Flawless LED display AC Voltmeter Ammeter Power Energy Meter Current Monitor, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

images of 5pcs/lot Digital HD Color Screen 180 Degrees Flawless LED display AC Voltmeter Ammeter Power Energy Meter Current Monitor

5pcs/lot Digital HD Color Screen 180 Degrees Flawless LED display AC Voltmeter Ammeter Power Energy Meter Current Monitor
multi-funciton digital meter can measure and display AC voltage, AC current, active power and electric energy at the same time. The display part of meter use high-definition color LCD screen.
Technical Indicators
1. Accuracy: 1% 2words
2. Range:
·AC voltage: AC 80.0-300.0V
· AC current: AC 0-99.99A, minimum resolution is 0.01A.
·Active power: 0-45000W. 0-9999.9W minimum display resolution is 0.1W, otherwise Minimum resolution is 1W.
·Electric energy: 0-9999999Kwh
0-9999.999kwh minimum resolution is 0.001kwh
10000.00-99999.99kwh minimum resolution is 0.01kwh
100000.0-999999.9kwh minimum resolution is 0.1kwh
Otherwise minimum resolution is 1Kwh.
3. Speed: 2 times per second
4. Size: 79*43*48
5. Installation Size:76*39
6. Auto-saving: when power off, the electric energy will be saved. The saved electric energy will be accumulated continue when the meter power-on next time.

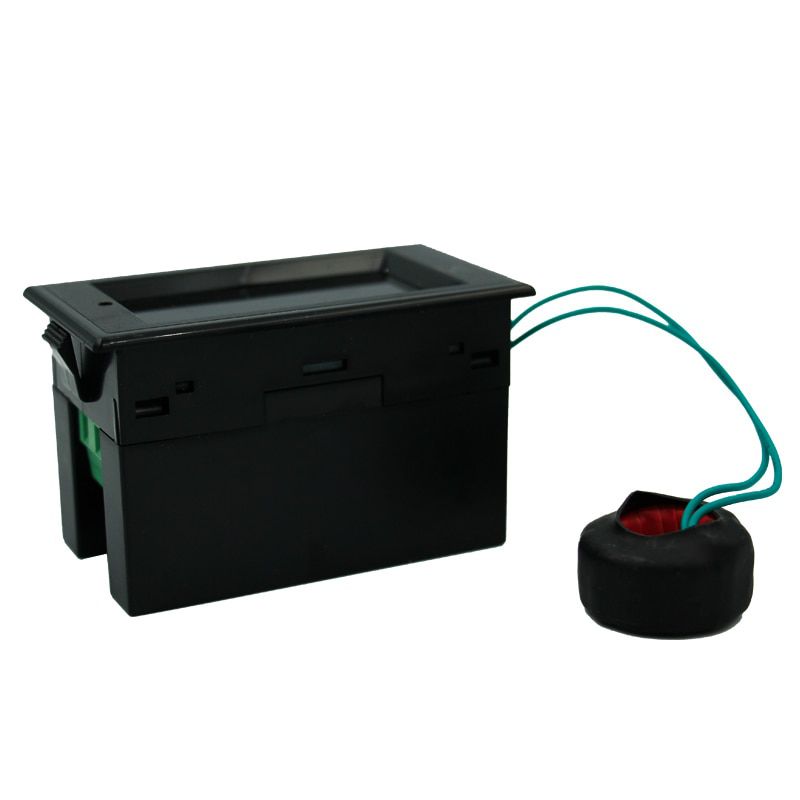

1. According to connection graph, connect the green wire of secondary current transformer to the blue terminal of meter and make the wire of measurement circuit through the hole in the current transformer.
2. Supply power and start to measure and display the result.
3. Press down the button last for 5 second, the electriv energy will to be zero.
Attention
1.The meter will be destroyed when you make wrong connection method with voltage input(green terminal) and secondary current transformer(blue terminal).
2.The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to measure square wave, output of inverter and correction sine wave.
