TempU 04 USB Temp Data Logger Temperature data Logger Recorder Recording Meter with 32,000 Capacity PDF Report Record Instrument
TempU 04 USB Temp Data Logger Temperature data Logger Recorder Recording Meter with 32,000 Capacity PDF Report Record Instrument
The device is mainly used to moniter the temperature of food,medicine,and other products during storange and tramsportation.After recording,insert it into the USB port of PC,it will automatically generate reports without any driver.
UKOBD2 Provide top quality TempU 04 USB Temp Data Logger Temperature data Logger Recorder Recording Meter with 32,000 Capacity PDF Report Record Instrument, if you need TempU 04 USB Temp Data Logger Temperature data Logger Recorder Recording Meter with 32,000 Capacity PDF Report Record Instrument, or have any questions about TempU 04 USB Temp Data Logger Temperature data Logger Recorder Recording Meter with 32,000 Capacity PDF Report Record Instrument, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools
images of TempU 04 USB Temp Data Logger Temperature data Logger Recorder Recording Meter with 32,000 Capacity PDF Report Record Instrument
TempU 04 USB Temp Data Logger Temperature data Logger Recorder Recording Meter with 32,000 Capacity PDF Report Record Instrument

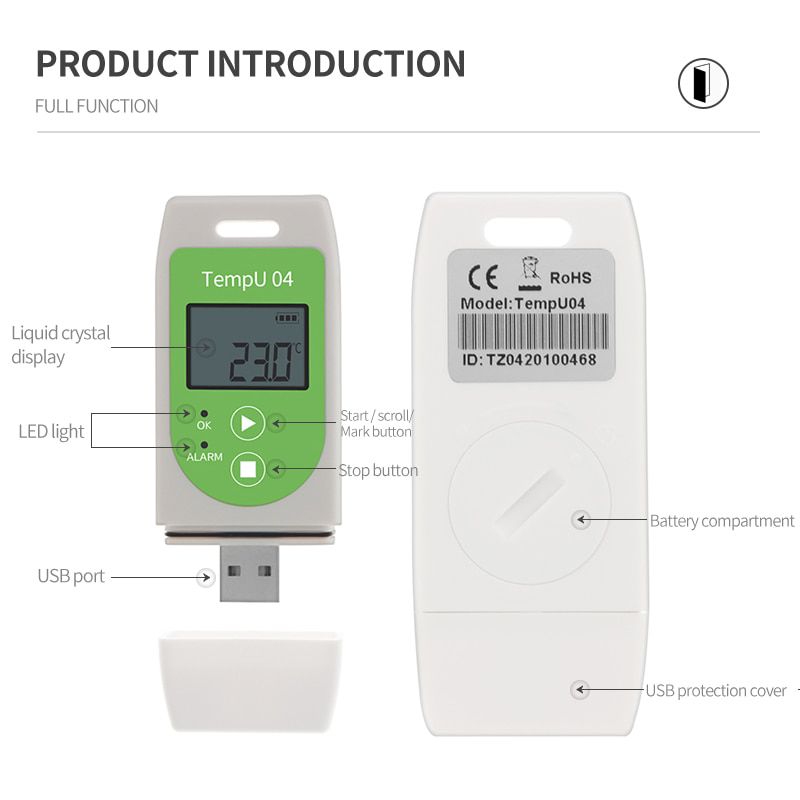

Product Introduction:
The device is mainly used to moniter the temperature of food,medicine,and other products during storange and tramsportation.After recording,insert it into the USB port of PC,it will automatically generate reports without any driver.
Features:
1. Multi-use temperature measuring and recording.
2. Widely measuring range,high accuracy and large data memory .
3. Statistics available on LCD screen.
4. No software needed to generate PDF and CSV temperature report.
5. Parameter programmable by configure software.
Specifications:
-
Color: White + Black
-
Material: ABS
-
Temperature Unit: ℃ / ℉ (set through computer)
-
Temperature Range: -30~+60℃ / -22~+140℉
-
Temperature Resolution: 0.1℃
-
Temperature Accuracy: -20~+40℃, ±0.5℃, others, ±1.0℃
-
Export Format: CSV / PDF
-
Memory Capacity: 32,000
-
Protection Grade: IP65
-
Recording Options: Delayed or Push-To-Start Logging
-
Interval: 10 seconds to 18 hours adjustable [Default: 10 mins]
-
Start Delay: Programmable (0~254 mins) [Default: 30 mins]
-
Alarm Delay: Programmable (0~960mins) [Default: 10 mins]
-
Report Generation: Simultaneously generate PDF report and CSV file
-
Connect Interface: USB 2.0
-
Power Supply: 1 * 3.0V CR2032 Lithium Battery (Not Included)
-
Operation Temperature: -30~60℃ (-22~140℉)
-
Item Size: Approx. 89 * 36 * 16m / 3.5 * 1.4 * 0.6in
-
Item Weight: Approx. 30g / 1.1oz (Without Battery)
-
Package Size: Approx. 15.2 * 10.3 * 3cm / 6.0 * 4.1 * 1.2in
-
Package Weight: Approx. 60g / 3.5oz
Package List:
1 * Temperature Data Logger
1 * User Manual(English)
AB-10T Temperature Recorder USB Temperature Data Logger Waterproof 20℃-/+40℃ Food Medicine Vaccine Refrigerated Transportation
AB-10Tis a high-precision waterproof mini USB temperature data logger, connected to a computer, data can be automatically uploaded and exported to TXT format reports, with 48000 data storage, can clear all data, repeated use, adjustable recording interval, can measure -20 ℃-/+40℃, suitable for food, medicine, pharmaceutical cold chain refrigerated transportation, vaccine temperature monitoring, chemical supplies and other products in the storage and transportation of multiple temperature measurements and records.
Specifications :
Temperature Unit: ℃ / ℉ (set through our software)
Temperature Range: -30~+70℃
Temperature Resolution: 0.1℃
Temperature Accuracy: -20~+40℃, ±0.5℃; others, ±1.0℃
Record capacity:48000 points
Recording interval: 10s-24h adjustable
File type:TXT
USB Interface: USB 2.0
Use battery: CR2450 button battery（not include )
Protection class: IP65
AB-10C is a high-precision waterproof mini USB temperature data logger, connected to a computer, data can be automatically uploaded and exported to TXT format reports, with 48000 data storage, can clear all data, repeated use, adjustable recording interval, can measure -20 ℃-/+40℃, suitable for food, medicine, pharmaceutical cold chain refrigerated transportation, vaccine temperature monitoring, chemical supplies and other products in the storage and transportation of multiple temperature measurements and records.
Specifications :
1. Wide range of measurement application, high precision, 48000 data storage.
2. Display on the large LCD screen.
3. USB data reading: USB connected to the computer, the data can be automatically uploaded and the report in TXT format can be exported (TXT: direct export without software; PDF CSV: software required)
4. Parameters can be programmed through configuration software.
5. Temperature unit: ℃/℉
6. Temperature range: -30~+70℃
7. Temperature resolution: 0.1℃
8. Temperature accuracy: -20~+40℃, ±0.5℃; others, ±1.0℃
9. High-precision NTC sensor: within the temperature measurement range of -20°C-+40°C, the accuracy is ±0.5°C; for the remaining temperature measurement range, the accuracy is 1°C.
10. Recording interval: 10s-24h adjustable
11. USB interface: USB 2.0
12. Use battery: CR2450 button battery (not included)
13. Waterproof rating: IP65
14. Clear all data in one step, can be used repeatedly, and long press the left and right keys to clear the data at the same time
15. Product size: 11.5mm * 40mm * 101mm
AB-10TH Temperature & Humidity logger USB Temp Data Logger ReusableTemperature Humidity Recorder Recording Meter 48,000 Capacity
Product overview:
The logger is mainly used to monitor and record the temperature data of food ,medicine ,chemical supplies and other products during storage and transportation .It is widely used in various links of the cold chain of storage and logistics,such as refrigerated containers,refrigerted truckd,refrigerated packages,cold storage,laboratory,etc.
Specifications:
Material: ABS
Temperature Unit: ℃ / ℉ (set through our software)
Temperature Range: -30~+70℃ / -22~+150℉
Temperature Resolution: 0.1℃
Humidity range: 1.0%-99% RH
Humidity Resolution: ±3% RH
Temperature Accuracy: -20~+40℃, ±0.5℃, others, ±1.0℃
Sensor type:NTC
Memory Capacity: 48,000 point
Record interval:10s-24h adjustable
USB interface:USB 2.0
File type:TXT PDF CSV
Protection grade:IP65
logger size:101mm*40mm*11.5mm
packing size:127mm*74mm*26mm
