VIDENT iEasy320 OBDII/EOBD+CAN Code Reader
iEasy320 CAN OBDII/EOBD Code Reader = iEasy300 abilities + oxygen monitor test + on-board monitor test + component test
UKOBD2 Provide top quality VIDENT iEasy320 OBDII/EOBD+CAN Code Reader, if you need VIDENT iEasy320 OBDII/EOBD+CAN Code Reader, or have any questions about VIDENT iEasy320 OBDII/EOBD+CAN Code Reader, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

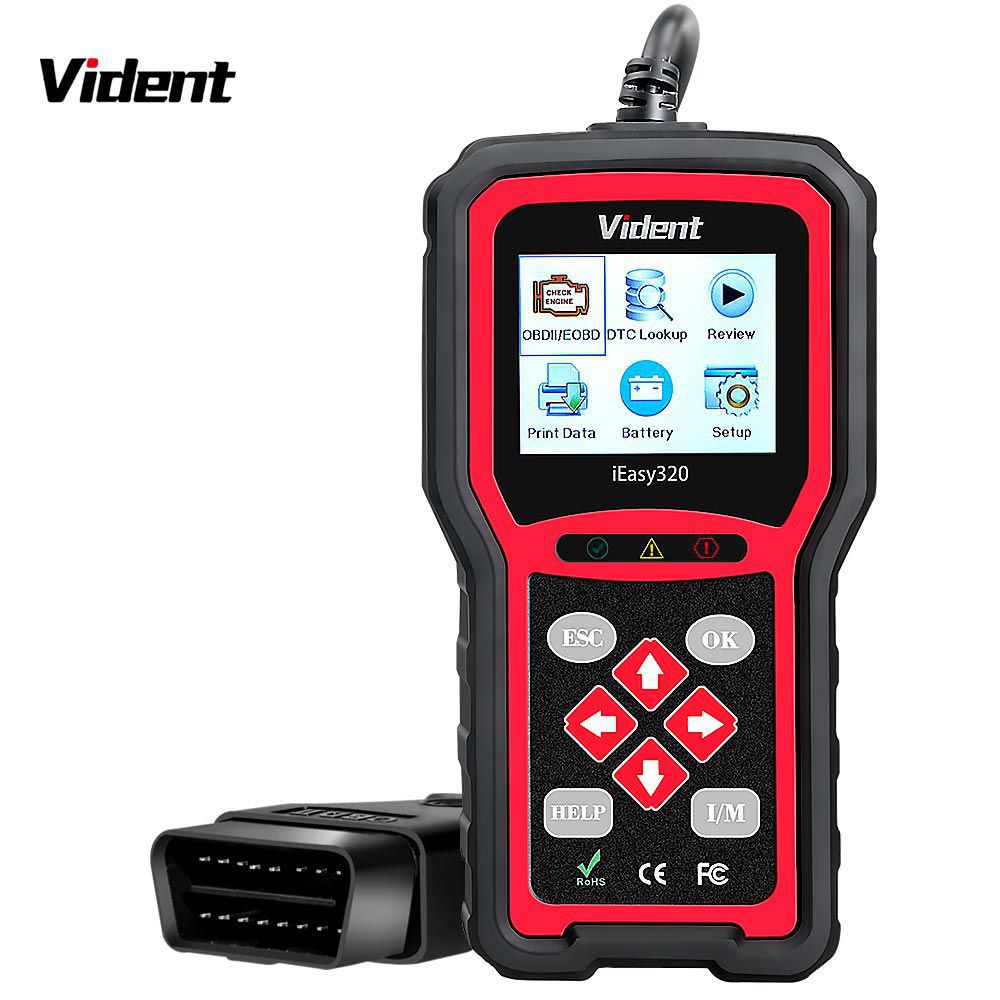

images of VIDENT iEasy320 OBDII/EOBD+CAN Code Reader
VIDENT iEasy320 is a portable CAN OBDII/EOBD code reader for professionals and DIYers.
iEasy320 not only cover iEasy300 functionalities, but also is able to oxygen monitor test, on-board monitor test, and component test.
Works with most 2004 and newer OBDII& CAN compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide
Highlight of Vident iEasy320
1.Protocols supports:J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN
2.Life time FREE software and firmware updates, Unique shortcut menu to enter update mode easily
3.English, French, German, Russian, Spanish, Italian, Portuguese, Hungarian, Sweden
Note: There is no Polish and Netherland language
When you receive, there is only 5 default languages（ English, German, French, Spanish , Italian）, get others languages by update tool or contact us to open for you.
Vident iEasy320 Scanner Features:
1.iEasy320 supports all the 10 OBDII test modes
2.Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status.
3.They can also help catch intermittent problems or confirm repairs during a drive cycle.
4.I/M readiness hot keys make it easy to use this tool right out of the package.
5.Quick display of status of all tests on a single screen
6.Read/ clear stored & pending codes, switch off Check Engine Light (MIL) and resets monitorsView on-screen fault code definitions (Generic, manufacturer specific, pending and permanent, where available) - thousands of definitions stored within the tool software
7.Look up fault code definitions from the tool's on-board database
8.Read freeze-frame data engine conditions such as fuel trim, engine coolant temp, etc., at the time the Malfunction Indicator Lamp (MIL) was set(a snapshot of sensor values
when a DTC occurred)
9.Read, records, graphs & playbacks real-time live data streams from the engine sensors- ideal for monitoring intermittent faults
10.Graph live engine data on-screen
11.View Oxygen Sensor test results (dependent on vehicle support)
12.View on board monitor test and component test
13Retrieve protocol, VIN, Cal ID and CVN identifiers from ECU (dependent on vehicle support)
14.Enhanced Mode 6 functions—Non-continuously Monitored Systems test results.
15.Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode 6 data
16.Test and display the voltage of battery.
17.Support max. 4 graphic comparisons of data stream
2.Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status.
3.They can also help catch intermittent problems or confirm repairs during a drive cycle.
4.I/M readiness hot keys make it easy to use this tool right out of the package.
5.Quick display of status of all tests on a single screen
6.Read/ clear stored & pending codes, switch off Check Engine Light (MIL) and resets monitorsView on-screen fault code definitions (Generic, manufacturer specific, pending and permanent, where available) - thousands of definitions stored within the tool software
7.Look up fault code definitions from the tool's on-board database
8.Read freeze-frame data engine conditions such as fuel trim, engine coolant temp, etc., at the time the Malfunction Indicator Lamp (MIL) was set(a snapshot of sensor values
when a DTC occurred)
9.Read, records, graphs & playbacks real-time live data streams from the engine sensors- ideal for monitoring intermittent faults
10.Graph live engine data on-screen
11.View Oxygen Sensor test results (dependent on vehicle support)
12.View on board monitor test and component test
13Retrieve protocol, VIN, Cal ID and CVN identifiers from ECU (dependent on vehicle support)
14.Enhanced Mode 6 functions—Non-continuously Monitored Systems test results.
15.Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode 6 data
16.Test and display the voltage of battery.
17.Support max. 4 graphic comparisons of data stream
iEasy320 Update :
1. Download the update tool Ieasy and update files from Official Website and save the applications and files in computer disk.
2. Unzip the update tool file. Follow instructions on the computer screen to install the tool and driver.
3. Double click the Ieasy desk Top icon to launch the application.
4. Click Setting and select the language you want to update.
5. Press and hold HELP key. Hold and do not release the HELP key, then connect the USB cable.
6. When the tool enters the Update Mode, the application would detect the tool automatically.
7. Tick the file to update.
VIDENT iEasy320 Vehicles Coverage:
Car is compliant with standard OBDII protocols, with OBDII 16pins Diagnostic Port.
American (USA) cars
Standard OBD2 Cars from 1996 to Now:
for Chrysler, for Ford, for GM, for Jeep
European cars
Standard OBD2 Cars from 2003 to Now:
for Alfa Romeo , for SAAB , for Acura , for Opel, for Audi , for Seat , for Peugeot , for Bentley , for Skoda , for Daewoo, for Benz , for Daihatsu , for Land Rover, for BMW , for Vauxhall , for Citroen, for Volvo , for Fiat , for VW , for Ford , for Jaguar
Japanese cars
Standard OBD2 Cars from 2007 to Now:
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota.
Chinese cars:
Standard OBD2 Cars from 2011 to Now:
NOTICE:
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.
Warning:
Not Support Russian Cars before 2012, VAZ,UAZ,LADA ; Not works with trucks . for Renault/SsangYong, please contact us before purchasing.
Please leave us message in format : xx, 2005, 2.0cc, Diesel

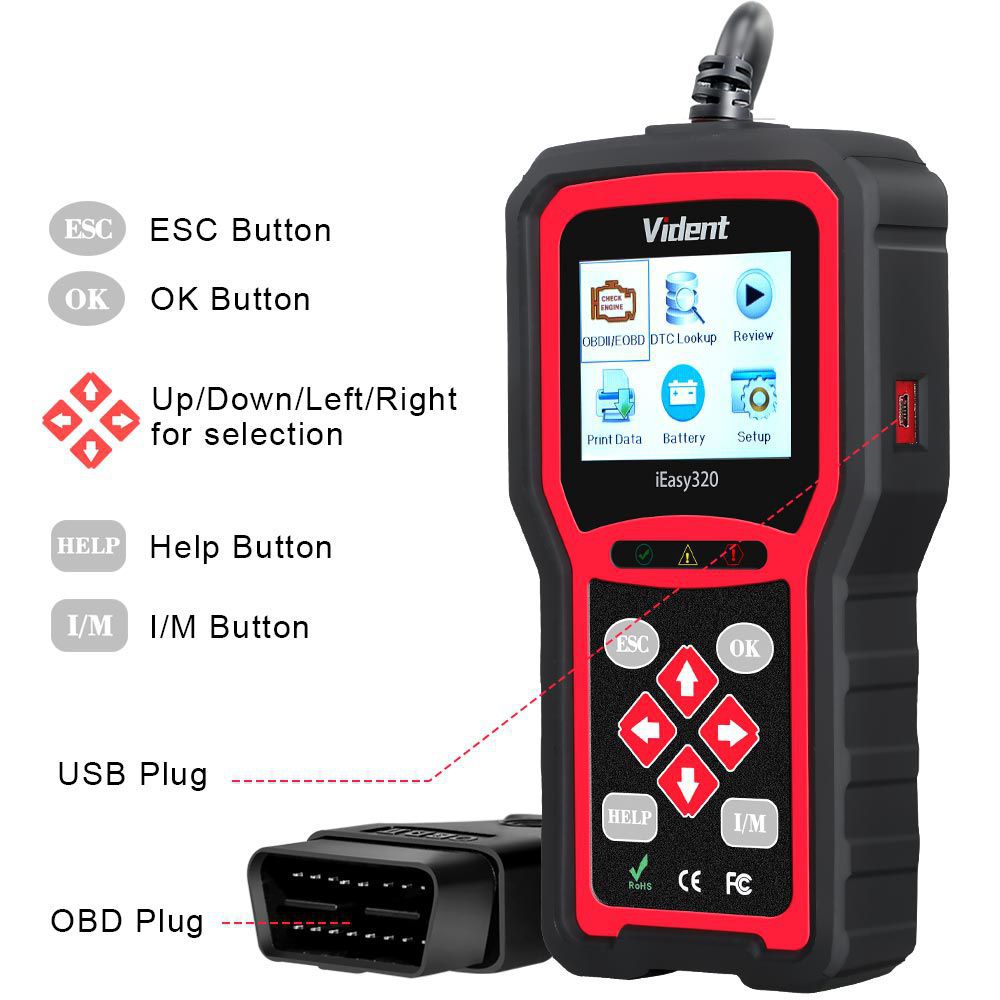

VIDENT iEasy320 Display:
VIDENT iEasy320 Display:
- A. OBD II Cable- provides communication for vehicle DLC.
- B. LCD Display - shows menus, test results and operation tips.
- C. Green LED Display- indicates the engine system is working normally (all monitors on the vehicles are active and performing their diagnostic testing), and no DTCs are found.
- D. Yellow LED Display- shows the tool finds a possible problem. Pending DTCs exist or/and some of the vehicle’s emission monitors have not run their diagnostic testing.
- E. Red LED Display - indicates there are some problems in one or more of thevehicle’s systems. In this case, the MIL lamp on the instrument panel is on.
- F. UP Key - quick access to the Read Codes function before going to diagnostic menu and moves selection up. When looking up DTC, it is used to change value of selected character.
- G. DOWN Key - Quick access to the Clear Codes function before going to diagnostic menu and moves selection down. When looking up DTC, it is used to change value of selected character.
- H. LEFT SCROLL Key - goes to previous character when looking up DTCs. Scrolls back and forth through codes found and through different screens of data. Also it is used to make selection of PIDs when viewing custom PID list, and to view PID graphs.
- I. RIGHT SCROLL Key - goes to next character when looking up DTCs.Scrollsback and forth through codes found and through different screens of data. Also it is used to cancel all selections of PIDs when viewing custom PID list.
- J. One Click l/M Readiness Key - quick checks state emissions readiness and drive cycle verification.
- K. ESC Key - cancels an action and returns to previous screen or level.
- L. OK Key - confirms an action or movement and moves to next level.
- M. HELP Key - accesses to the Help function and it is also used to update the codereader when long pressed.
- N. USB Port — provides a USB connection between the Code Reader and PC or laptop
Specification:
Display: 2.8” LCD color screen
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle
1pc x VIDENT iEasy320 OBDII/EOBD Code Reader
1pc x User Manual
1pc x USB PC cable for updating software
1pc x User Manual
1pc x USB PC cable for updating software
