Autel MaxiIM IM508S Key Programmer & Immobilizer Tool with XP200 — 34+ Services, No IP Limit, Free G-Box3

Autel MaxiIM IM508S IMMO and Key Programming Tool with XP200 — 34+ Services, No IP Limitation, Free G-Box3

Core Features

Professional automotive key programmer and immobilizer combining full-system diagnostics, advanced service functions, and comprehensive IMMO programming. Includes XP200 Key Programmer for immobilizer system service functions. Reads and clears DTCs across all vehicle modules for 80+ US, Asian, and European makes. Diagnostic capability equivalent to MK808/MX808BT.

Key Functions

• All Keys Lost, Add Key, Key Learning, Remote Learning
• Read PIN/CS, Key Generation, EEPROM/MCU Read & Write, IMMO ECU Reset/Adaptation/Refresh/Coding
• BMW FEM/BDC Key Learning & ECU Adaptation
• VW/Audi MQB Key Learning, 48-bit Transponder Add Key, All Keys Lost (A6, A4/A5/Q5 2015+)
• Fiat Argo/Cronos/Toro/Mobi/New Fiorino (Bypass PIN), Avventura/500x/Eaea/Tipo Blade Key Learning
• Smart Mode & Expert Mode for guided and advanced IMMO operations
• Bi-Directional Control & Active Tests (ABS, windows, doors, wipers, headlamps, solenoids, valves)
• AutoVIN Scan, Shop & Data Manager Applications, Cloud Management, AUTOAUTH for FCA SGW

Advanced Maintenance Services (40+)

Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), TPMS Sensor ID Relearn, Brake Bleed, Injector Service, Throttle Adaptation, ABS/SRS Reset, Odometer Adjustment, Clutch/Transmission Adaptation, A/C & ACC Calibration, EGR, HV Battery, Rain/Light Sensor, and more.

Hardware & Software Specifications

• Operating System: Android 11
• Processor: Rockchip RK3566 Quad Core (4×1.8 GHz A55)
• RAM: 4 GB | ROM: 64 GB
• Display: 7-inch capacitive touchscreen (1024×600)
• Connectivity: Wi-Fi, USB 2.0 (1 Host Type-A + 1 Mini Device), Micro SD slot (up to 64 GB)
• Battery: 3.7 V / 5000 mAh lithium-polymer (~4.5 hrs continuous use)
• Operating Temp: 0–50°C | Storage Temp: −20–60°C | Humidity: 5–95% non-condensing
• Weight: 885 g (tablet only); Package weight: 6.0 kg (13.23 lb)
• Package Dimensions: 51 × 39.5 × 15 cm (20.08 × 15.55 × 5.91 in)

Supported Protocols

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW/PWM, ISO11898 (High/Middle/Low/Single-wire & fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP2.0, TP1.6

EEPROM/MCU Read & Write Support

ATMEL, CATALYST, FAIRCHILD, MICROCHIP, NXP, NATIONAL, OKI, SONY, Seiko, ST, TOSHIBA, TMC, XICOR, FREESCALE (MC9S12DG128) — full list includes AT24Cxx, 93Cxx, 25xx, M95xx, M93xx, PCF85xx, NM93Cxx, and more.

Compatibility & Requirements

• Vehicle coverage: 80+ US, Asian, and European makes/models — function availability varies by VIN. Confirm compatibility via VIN before purchase.
• XP400 or XP400Pro required for Benz 3rd-gen IMMO, BMW CAS4, VW/Audi MQB (VDD/JCI), IMMO V A4/A5/Q5 2015+, Mercedes infrared key read/write, MC9S12 encryption chip, IC card, remote frequency detection, and PC connection.
• G-Box3 adapter included — compatible with IM508S, IM608, IM608Pro, and IM508 (with XP400). Enables faster, secure Bosch EDC17/MEx17/MD1/MG1 CU read/write and Fast Mode for Mercedes-Benz All Keys Lost (on-vehicle & on-bench).
• Sensors (e.g., TPMS, SAS) not included — must be purchased separately.
• SDRM validation compliance planned per NASTF timeline: IM508 Series rollout after KM100 (Q3 2026).

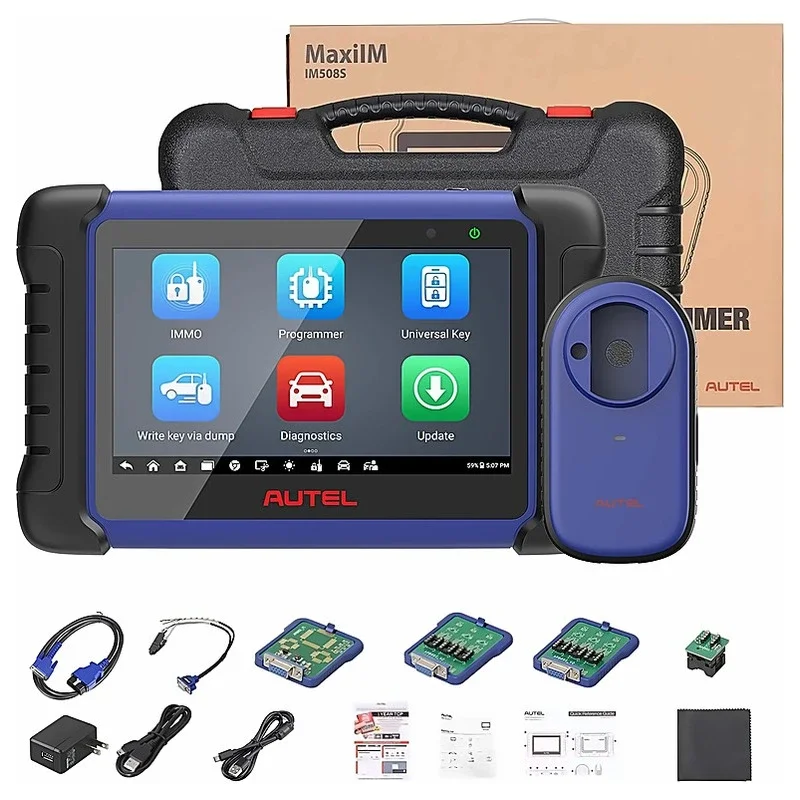

Package Contents

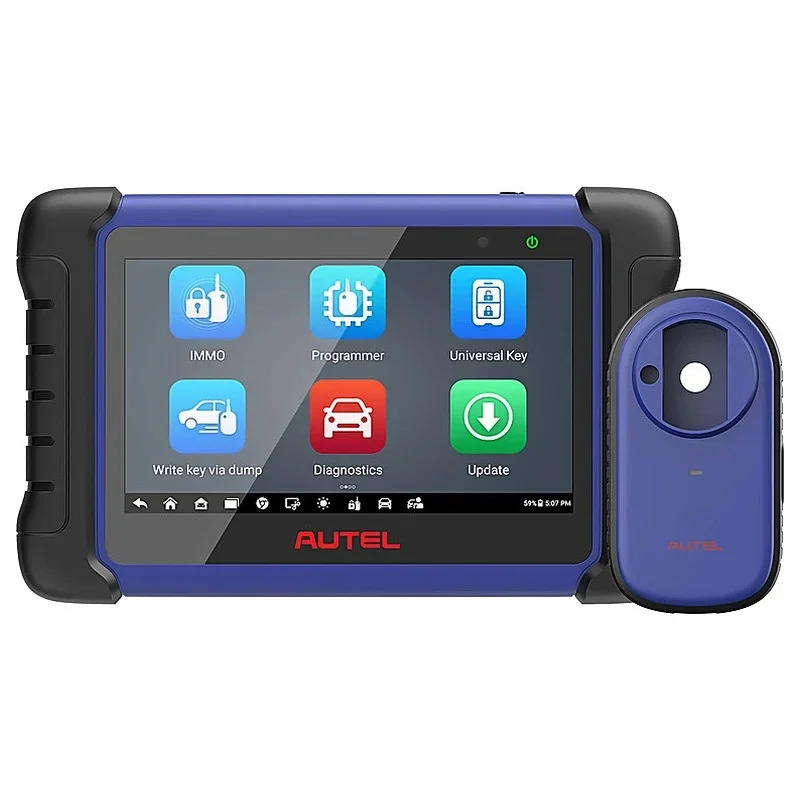

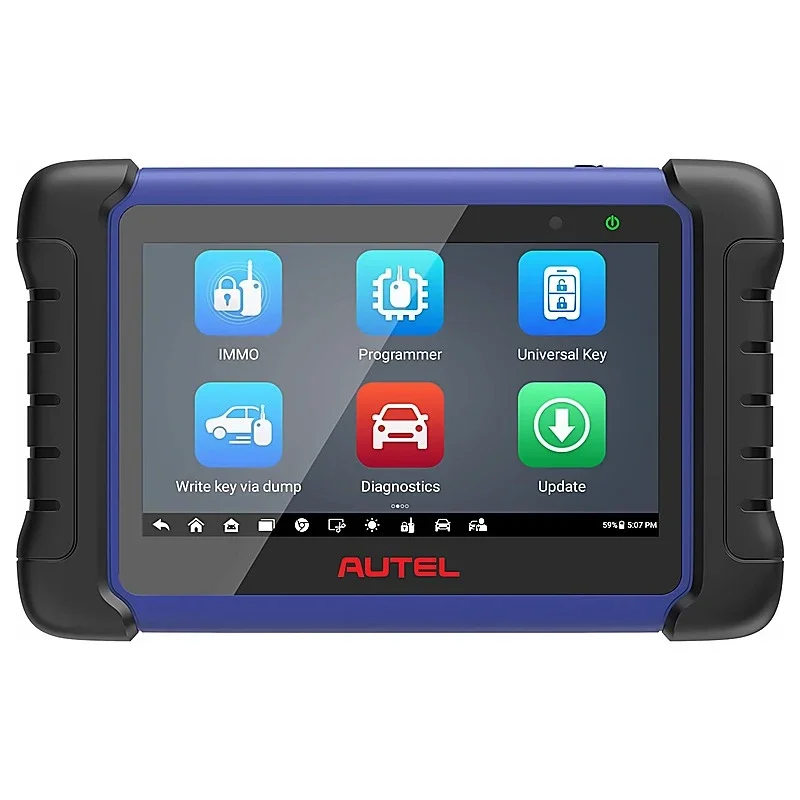

• 1 × MaxiIM IM508S Tablet

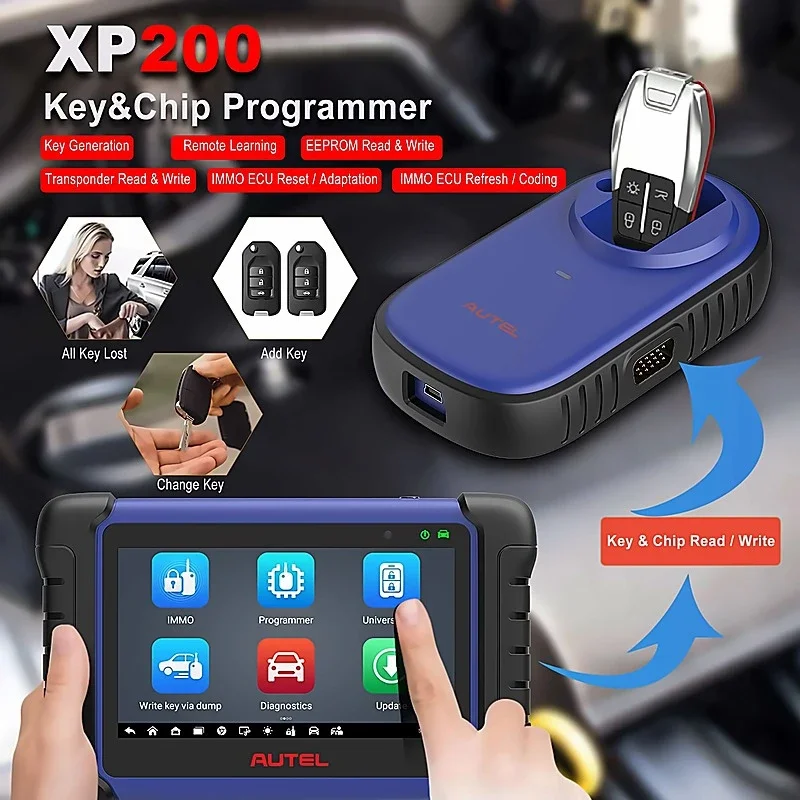

• 1 × XP200 Key Programmer
• 1 × Main Cable
• 1 × Mini USB Cable
• 1 × Type-C USB Cable
• 1 × Power Adapter
• 1 × APB001 (EEPROM Adapter)
• 1 × APB002 (68HC908 Adapter)
• 1 × APA002 (EEPROM Socket)
• 1 × APA001 (EEPROM Clamp + MC9S12 Cable)
• 1 × Soft Cloth
• 1 × Carrying Case
• 1 × Quick Reference Guide
• 1 × Packing List
• 1 × G-Box3 Adapter

Legal & Usage Disclaimer

This device is intended solely for professional automotive service, diagnostics, and Key Programming by qualified technicians operating in full compliance with applicable national, regional, and local laws — including but not limited to copyright, intellectual property, vehicle security, data privacy, and anti-theft regulations. Autel does not authorize, endorse, or assume liability for unauthorized access, cloning, bypassing, or tampering with vehicle security systems. Buyers are solely responsible for verifying legal authorization, obtaining necessary permissions, and adhering to OEM technical specifications and safety protocols. Use at your own risk. Autel disclaims all liability for misuse, illegal application, or failure to comply with manufacturer guidelines or jurisdictional requirements.
