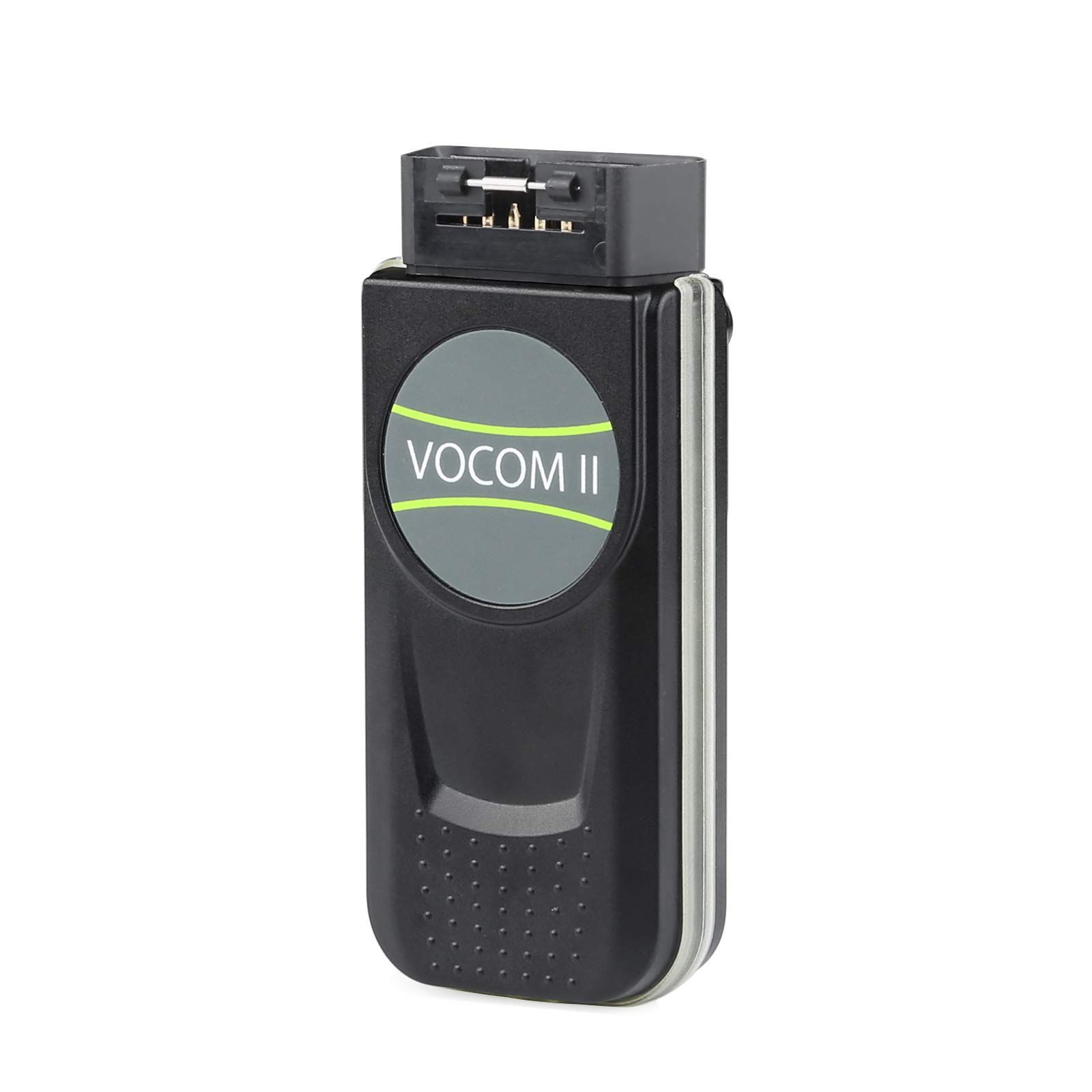

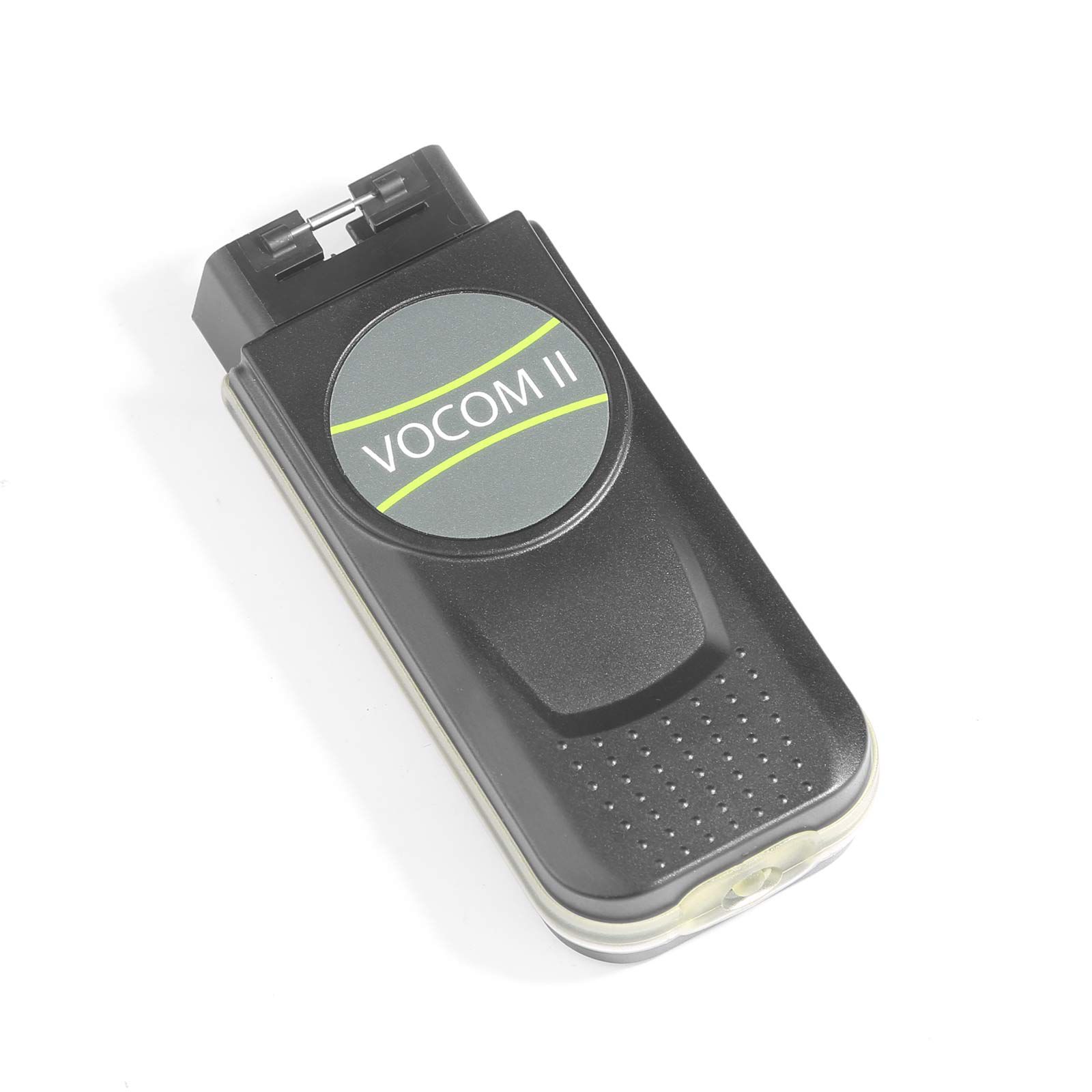

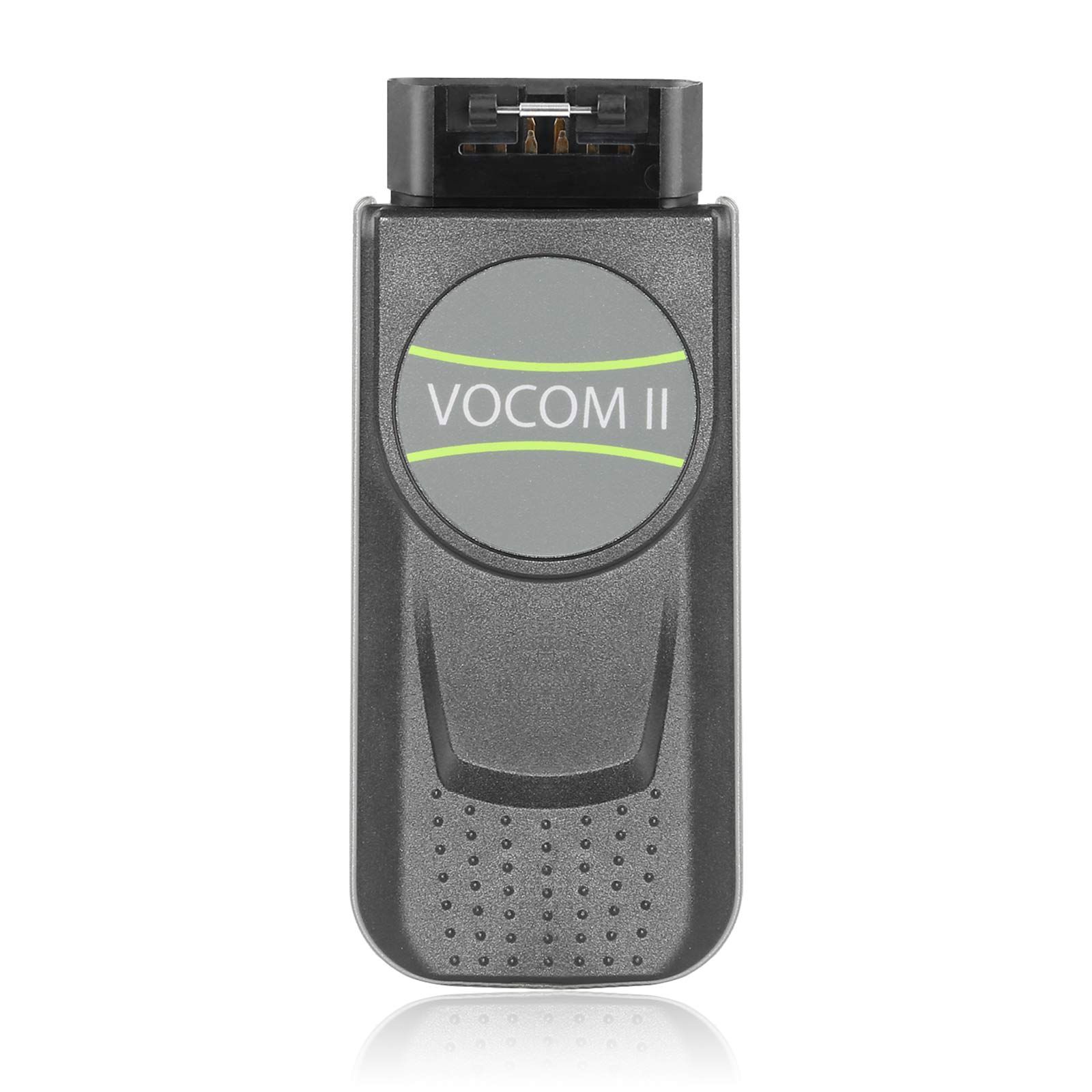

Original Mini Volvo Vocom II Adapter (88894200) - Truck Diagnostic Tool Supporting Wi-Fi

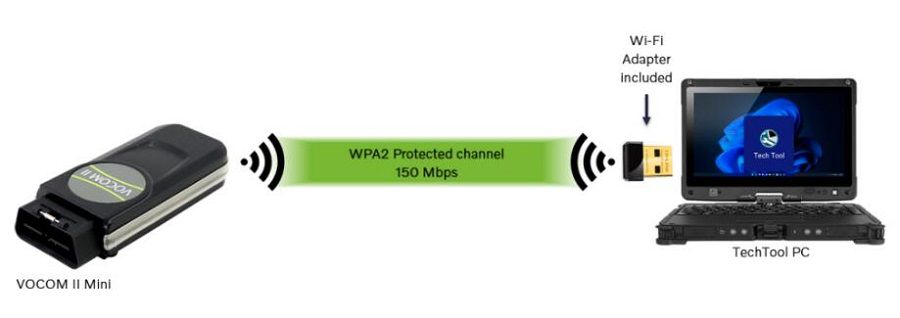

VOCOMII dongle, produced by ACTIA in Germany, supports diagnostics for Volvo/Renault/UD/Mack Trucks. It connects wirelessly to a laptop via Wi-Fi.
Product Overview
The VOCOMII is small, light-weight and powerful, fitting easily in your pocket. It offers secure and fast Wi-Fi communication over 2.4 GHz and 5 GHz networks up to 300 Mbit/s.
Product Features
- Small, Light Weight: Fits in your pocket.
- Secure and Fast Wi-Fi Communication: Communicates over 2.4 GHz and 5 GHz Wi-Fi networks up to 300 Mbit/s.
- Vehicle Diagnosis and Programming Support:

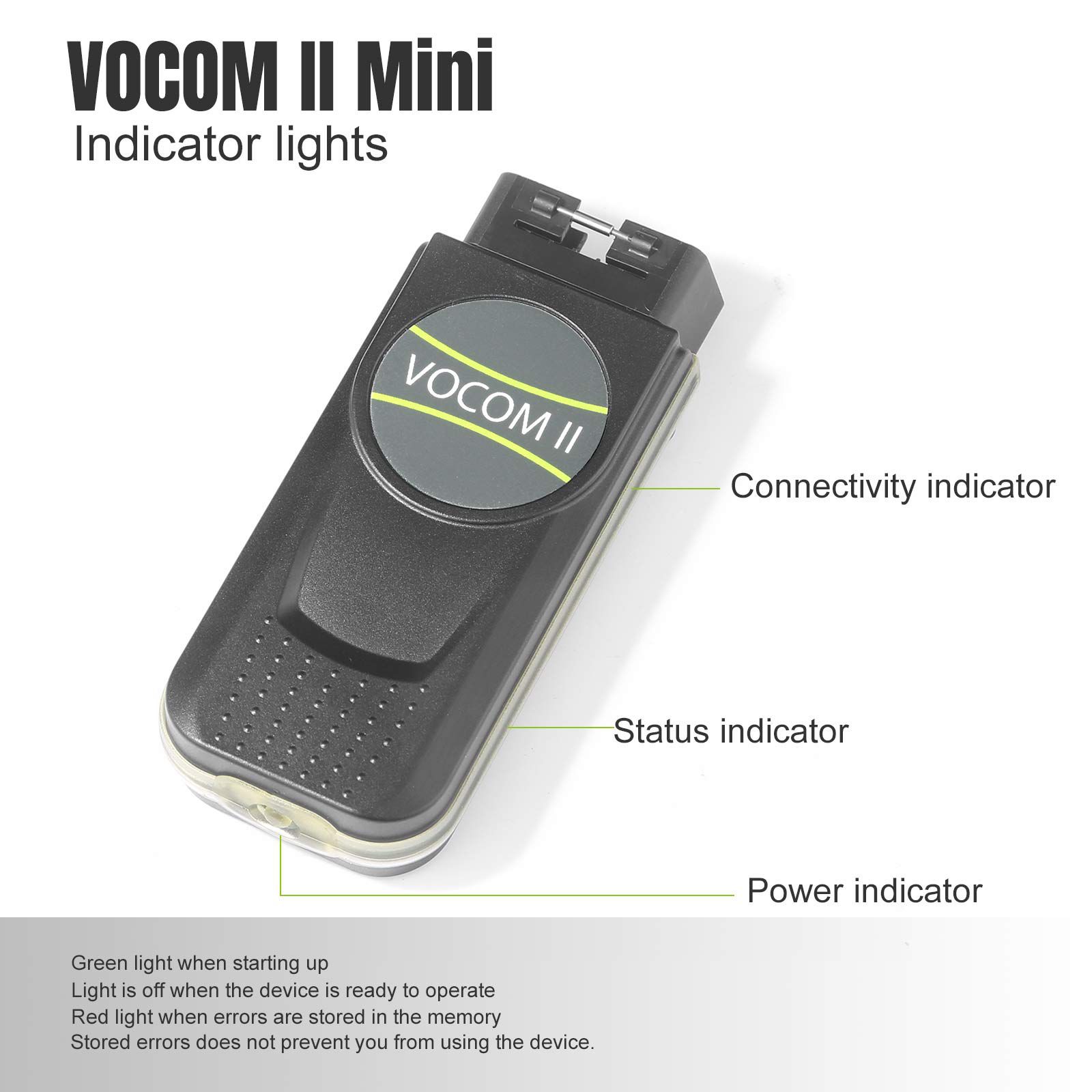

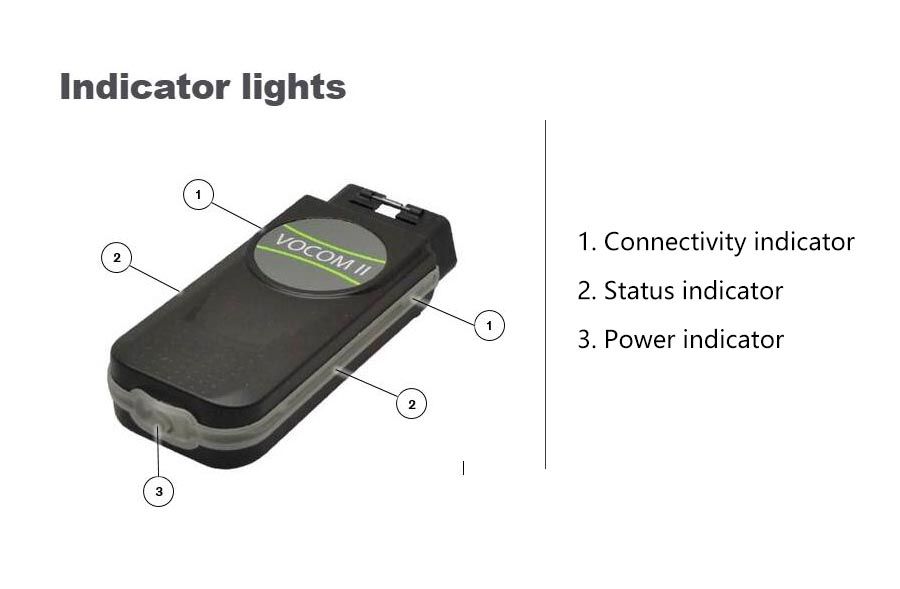

Device Indicator Meaning:
- Connectivity Indicator:
- Blue light. Blinks when connecting. Stable light when connected.
- Status Indicator:
- Green light when starting up. Light is off when the device is ready to operate. Red light when errors are stored in memory (stored errors do not prevent you from using the device).
- Power Indicator:
- Blinks when starting up. Stable light when ready to operate. Note: The color of the light indicates the battery condition of the connected vehicle, which has no internal battery.
Battery Condition:
| Battery Voltage | Condition | Power Indicator Color |
|---|---|---|
| > 24.3 V | Good | Green |
| 23.2 V - 24.3 V | Bad | Orange |
| < 23.2 V | Critical | Red |
Supported Vehicles Models:
- Volvo Trucks - Older electrical system, VERSION2, VERSION3; VERSION4 - FH4/FM4;
- Volvo Buses - Conventional, Multiplexed, Multiplexed v2, Multiplexed v3;
- Volvo Construction Equipment;
- Volvo Marine engines - VERSION2, VERSION3;
- Volvo OEM Component Customer - VERSION2, VERSION3;
- Mack Trucks - V-MACI/II/III, ITC, IV, IV+, I, DTI;
- UD Trucks - VERSION2, VERSION3;
- Renault Trucks - VERSION2, VERSION3, VERSION4; (EURO6, DXI, DTI).

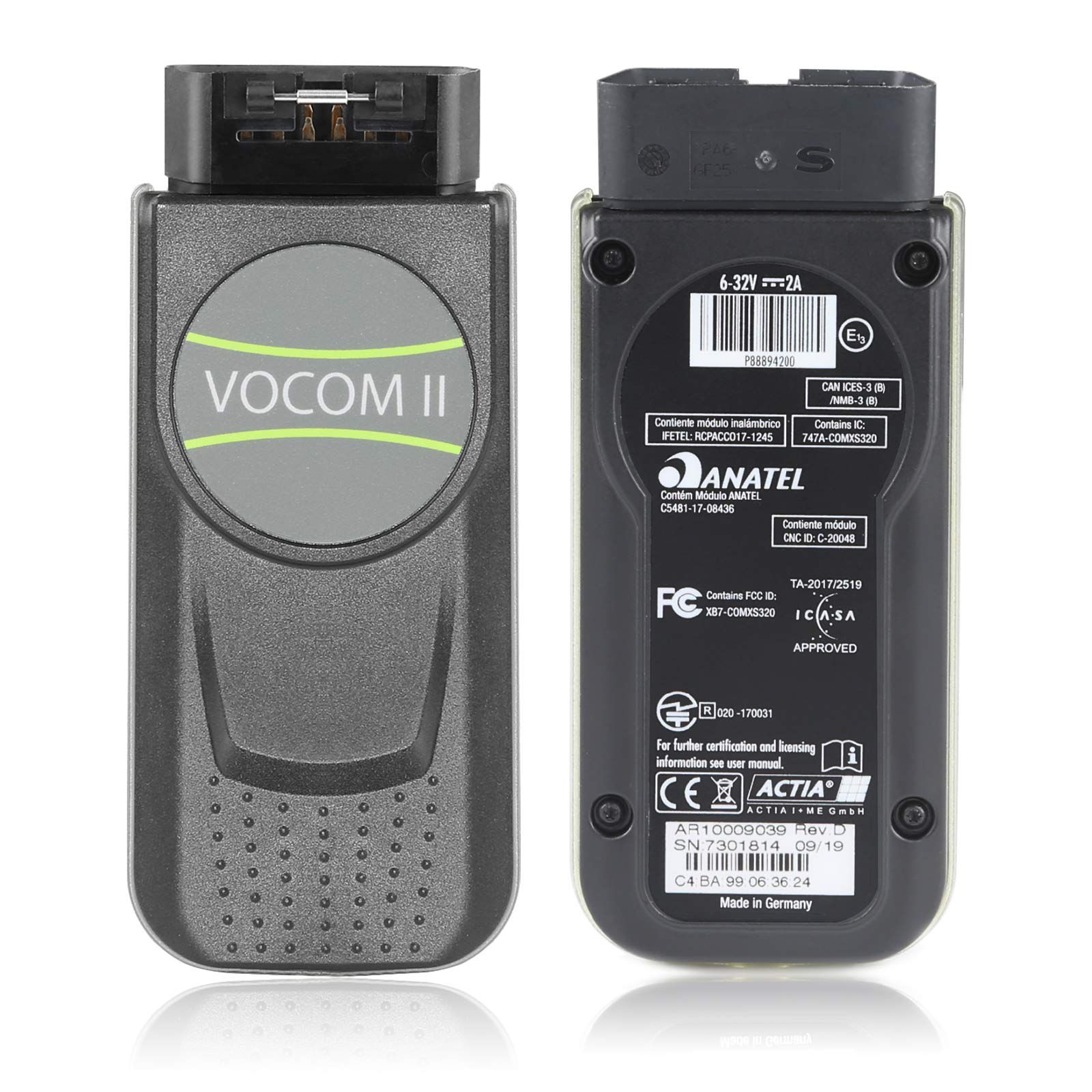

Product Specifications:
| Specification | Description |
|---|---|
| Computer Operating System | Windows 10 (32/64 bit) |
| Computer Connection | Wi-Fi |
| Wi-Fi Support | IEEE 802.11 a/b/g/n 2.4 GHz and 5 GHz |
| Wi-Fi Security | PSK, EAP-PEAP, EAP-TLS, WPA or WPA2 |
| Diagnostics Application Interfaces | RP1210C, J2534, J2534-1 |
| Vehicle Battery | 12V or 24V |
| Vehicle Electronic Architecture | Version 2, Version 3, Version 4 T1 |
| Vehicle Connection (using OBD2 Adapter) | OBD2, 9-Pin* |
| Vehicle Interfaces | 2xCAN (max. 1 Mbps) 1xJ1708 (max. 38 Kbps) |
| Vehicle Communication Protocols | ISO 11898, ISO 15765-2, SAE J1939, SAE J1708, SAE J1708 |
| Operating Voltage | 6V to 32V (max. 36V) |
| Operating Temperature | -40°C to +70°C / -40°F to +158°F |
| IP Protection Rating | IP44 |
| Weight | 85 grams/3 ounces |

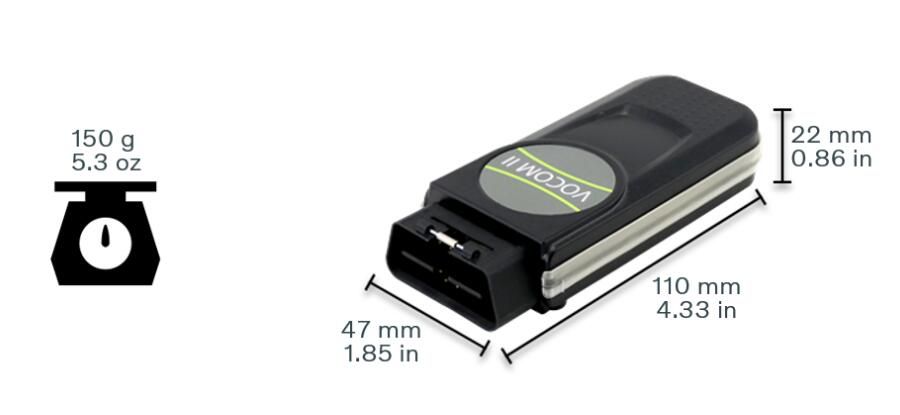

| Dimensions (WxDxH) | 110mm x 47mm x 22mm / 4.33in x 1.85in x 0.86in |

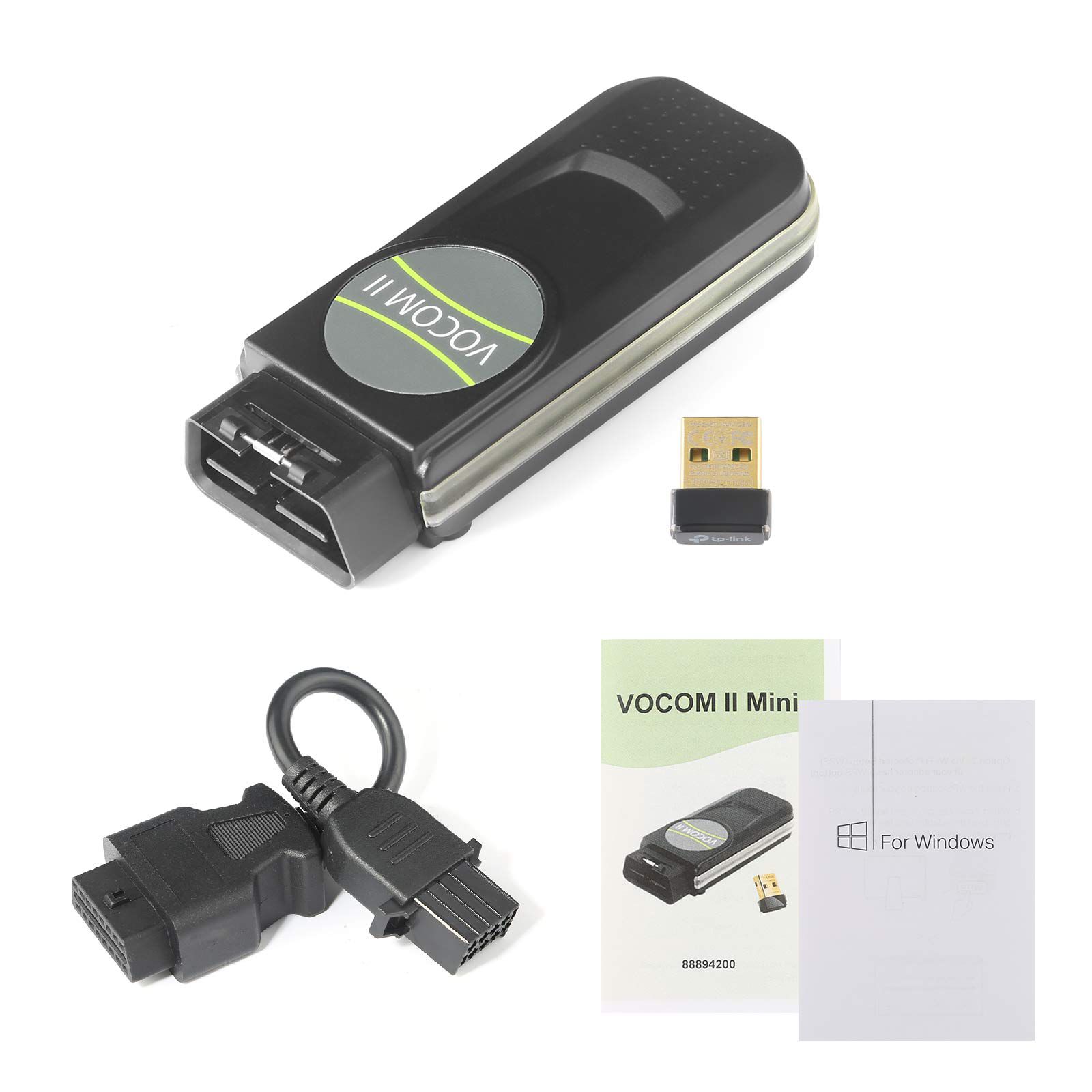

Package Includes:
- 1pc x VOCOM II Mini Dongle
- 1pc x 8pin OBD2 Cable
FAQ
- Recommended Software Version:
- It is recommended to use software version 2.7.116, which is relatively stable in testing.
- USB Connection Support:
- No, it only supports Wi-Fi communication (use the laptop’s Wi-Fi network card or a matching USB Wi-Fi adapter). The Wi-Fi password is v2d + device serial number (lowercase letters).
- Supported Vehicle Model Range:
- It can support vehicles from 1996 to 2021.
- Included Cables:
- The mini vocom ii comes with an 8pin cable. Separate 14pin and Renault 12pin cables are needed.
