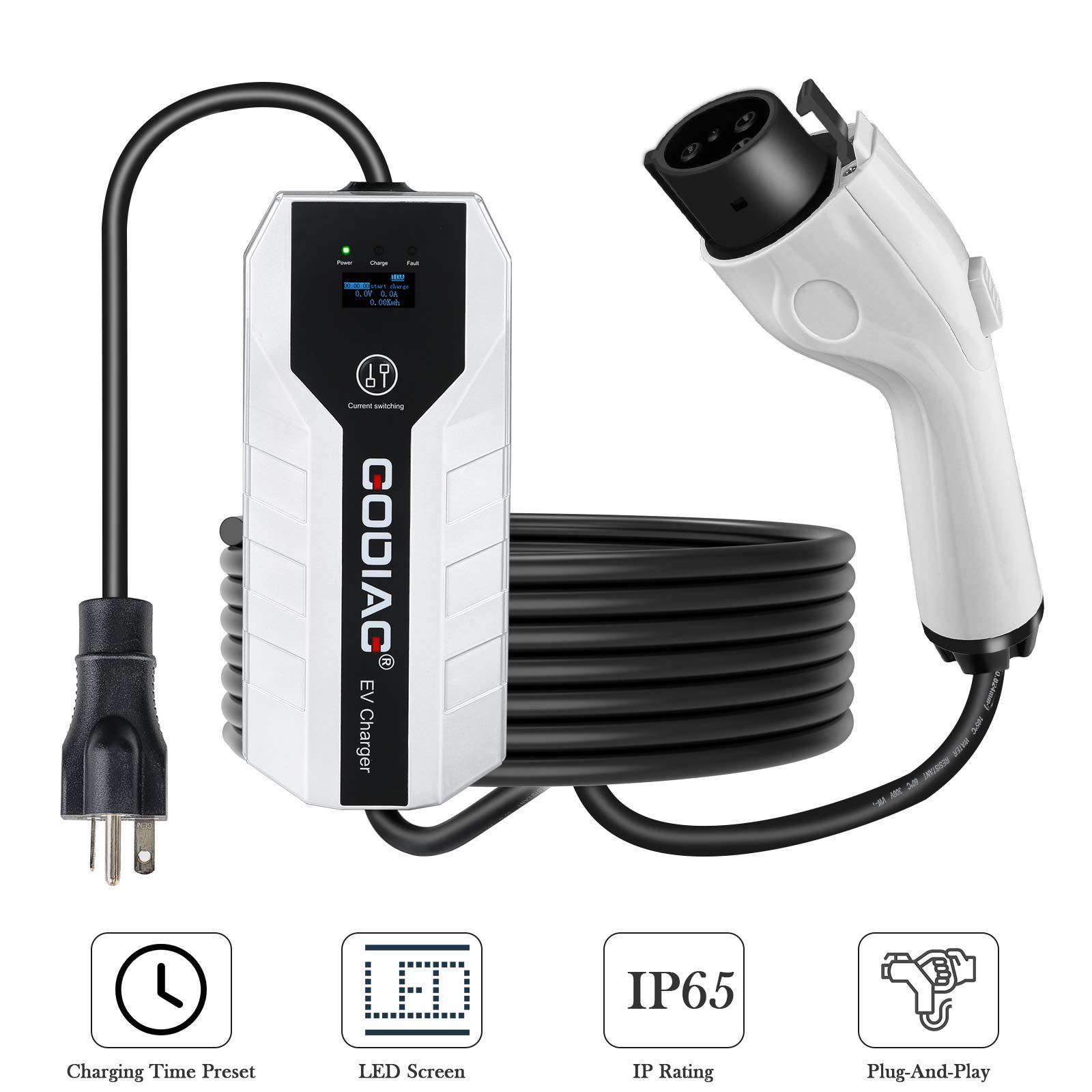

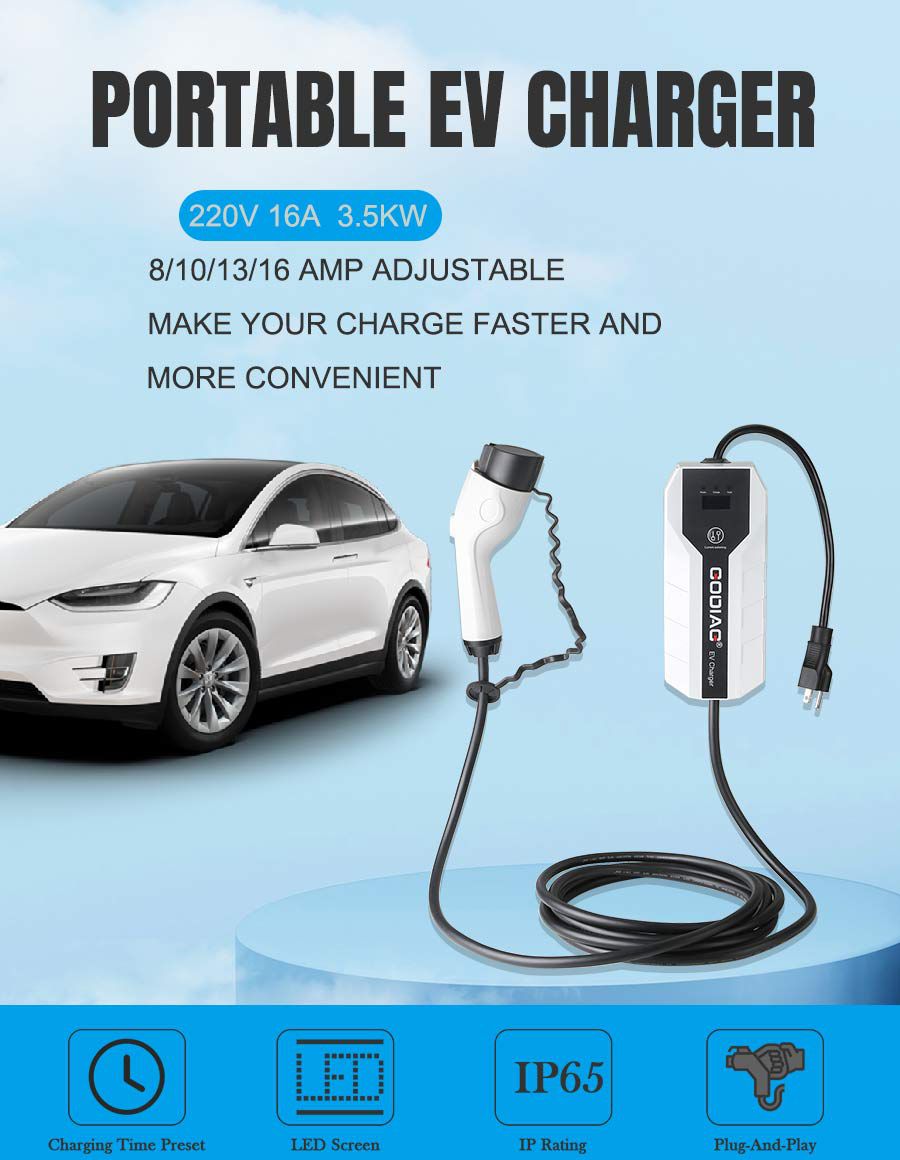

The GODIAG EV charger is a versatile and intelligent device suitable for over 99% of electric vehicles (EV) and plug-in hybrid electric vehicles (PEV) in the United States, featuring the standard J1772 charging port. This portable and lightweight charger supports both Level 1 and Level 2 sockets, offering dual voltage modes: 110-120V and 220-240V. The automatic recognition and conversion of voltages enhance its adaptability to different charging environments.

With four levels of current adjustment—8A, 10A, 13A, and 16A—the charger can accommodate various vehicle models, ensuring optimal battery maintenance for both new and older vehicles. Its compact size and robust features make it perfect for home use or outdoor travel.

Product Features

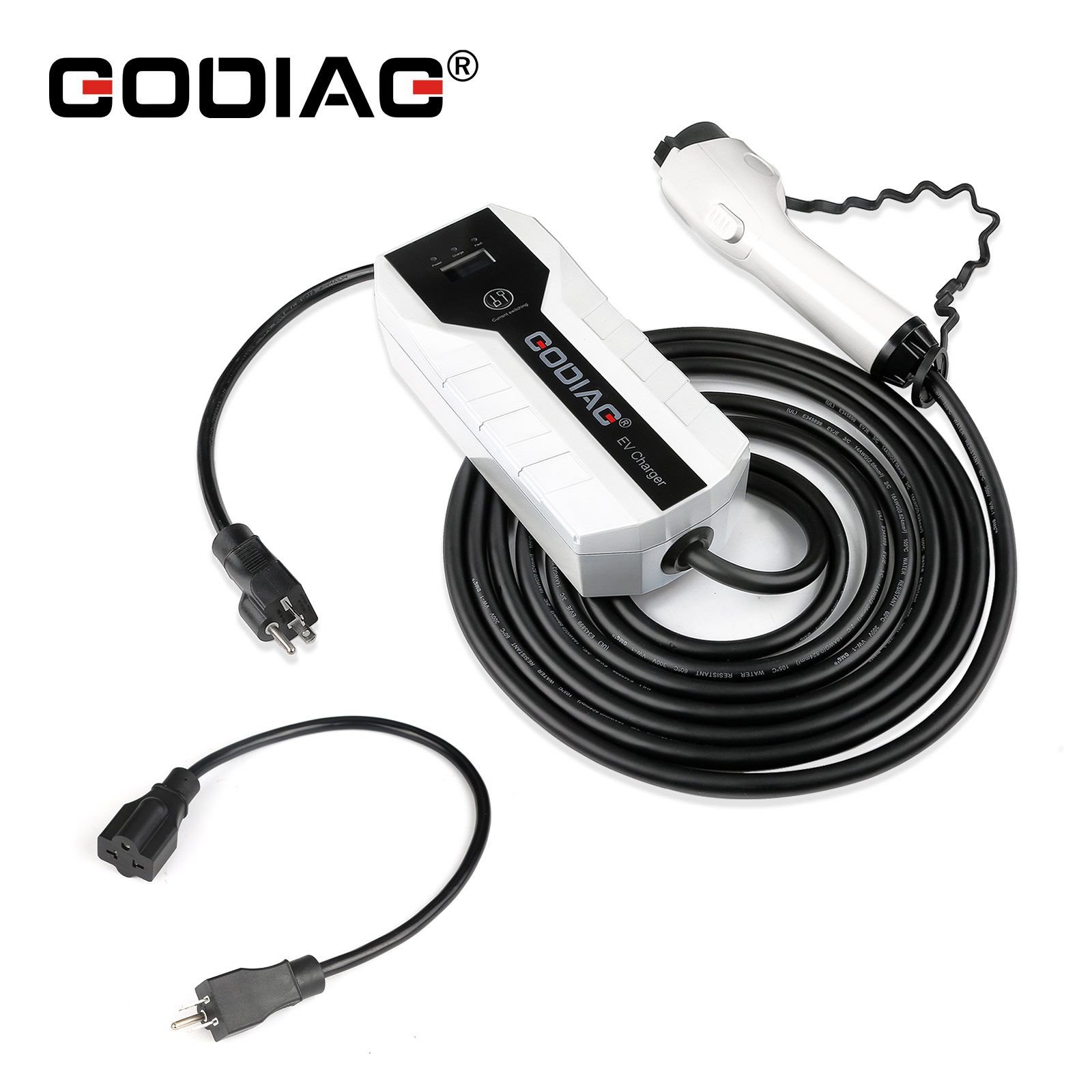

The GODIAG EV charger includes a NEMA 6-20 plug and NEMA 5-15P adapter cable, suitable for both Level 1 and Level 2 sockets. It features four current adjustment settings to match different charging needs of new and old vehicle models.

Compatible with over 99% of electric vehicles, including Tesla (requiring an adapter), it offers comprehensive protection such as leakage, overheating, voltage, current, lightning, surge, static, waterproofing, dustproofing, pressure resistance, and flame retardancy. The charger is portable and comes with a handbag for easy carrying.

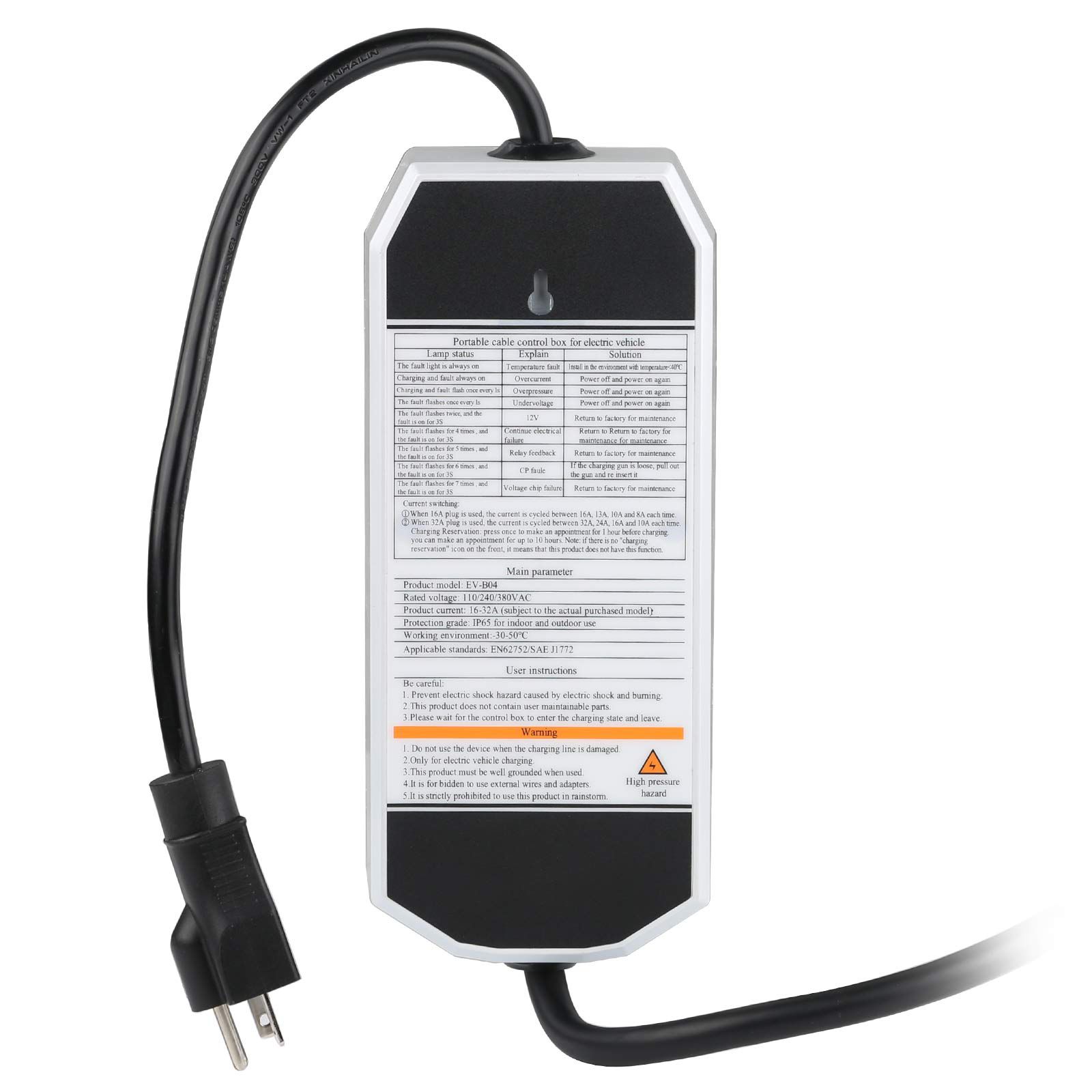

Intelligent charging ensures automatic detection of the connection status and protocol, providing timely notifications via an indicator light in case of unsolvable issues.

The product operates well in all weather conditions (64°F to 122°F) and has passed FCC certification along with UL test reports for safety and quality assurance. The cable is UL-certified, ensuring durability and reliability.

Product Highlights

NEMA 5-15P Charger: Boosts 110V (Level 1 only) up to 16A, enabling access to level 1 charging.

NEMA 6-20 Charger: Boosts 240V (Level 2) up to 16A, providing a rapid charging rate of 3.86 kW/hour, which translates to approximately 11 miles per hour of charge. The level 2 charger offers three times the charging speed compared to the vehicle’s original charger.

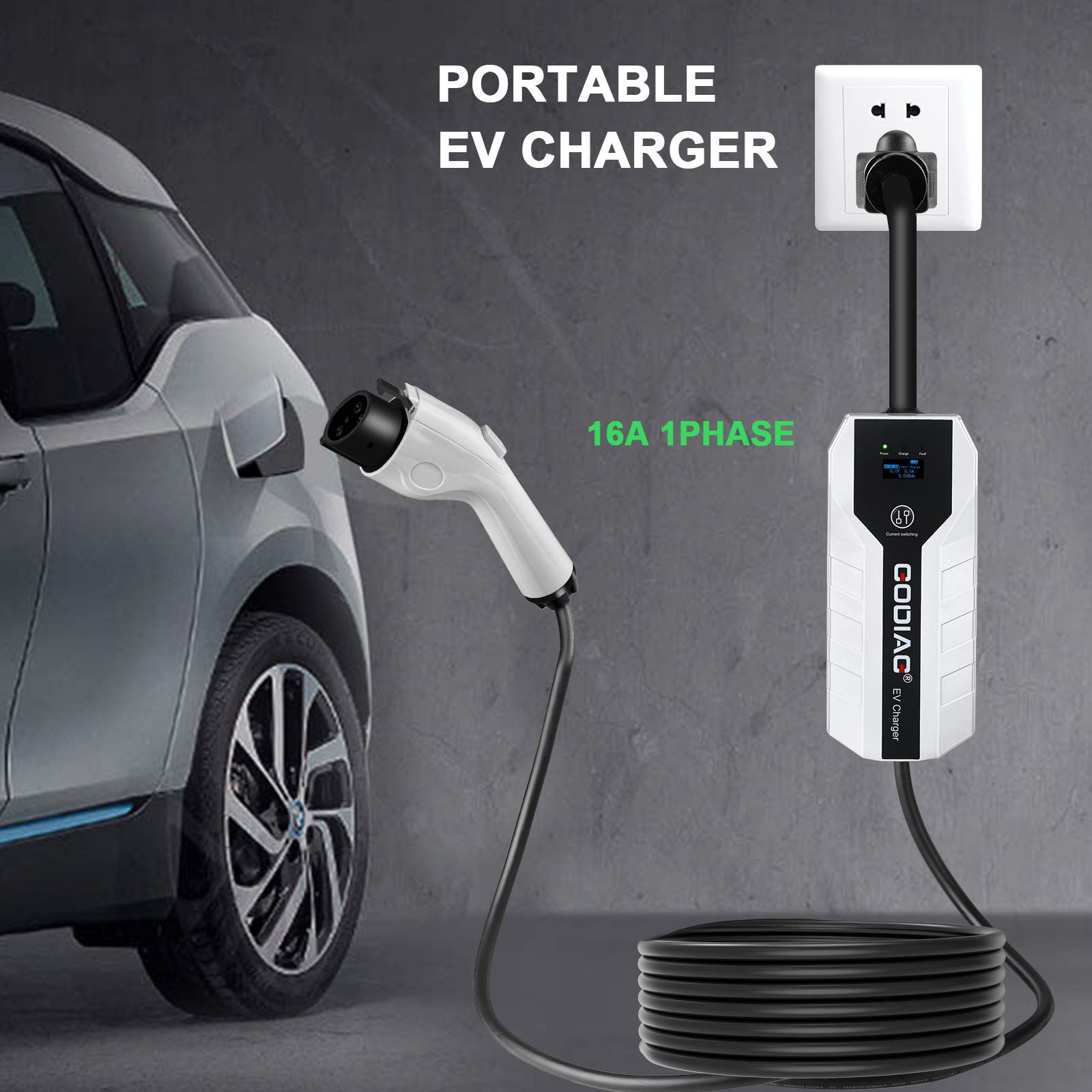

Fast Charging: Designed for efficient and effortless electric vehicle charging using the standard J1772 protocol, compatible with all EVs and plug-in hybrids. The compact and durable design makes it ideal for home use, with a 16.4ft cable suitable for most driveways or garages.

High Quality: The charger is rugged and robust, equipped with overvoltage, overheat, and overcurrent protection. An indicator light displays the charging stages and warns of possible errors.

Product Specifications

• Length: 5M (16.4ft)
• Color: Adapter: Pearl White, Charger host: White, Cable: Black
• Material: Shell: Plastic, Wire: Copper core wire
• Executive Standard: SAE J1772-2010
• Rated Current: 16A
• 4-Level Current Adjustment: 8/10/13/16 A
• Rated Power: 1.76KW/3.8KW

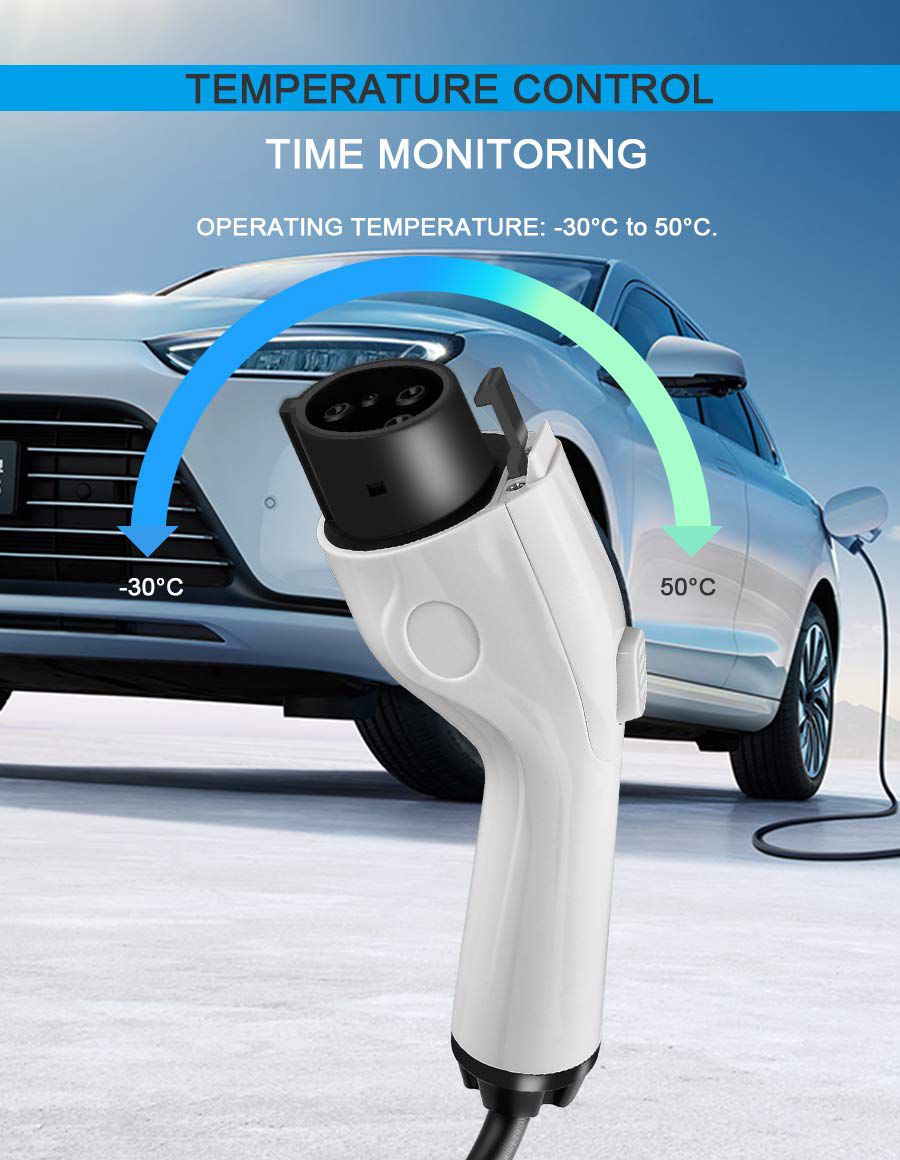

• Working Environment: -30°C to 50°C

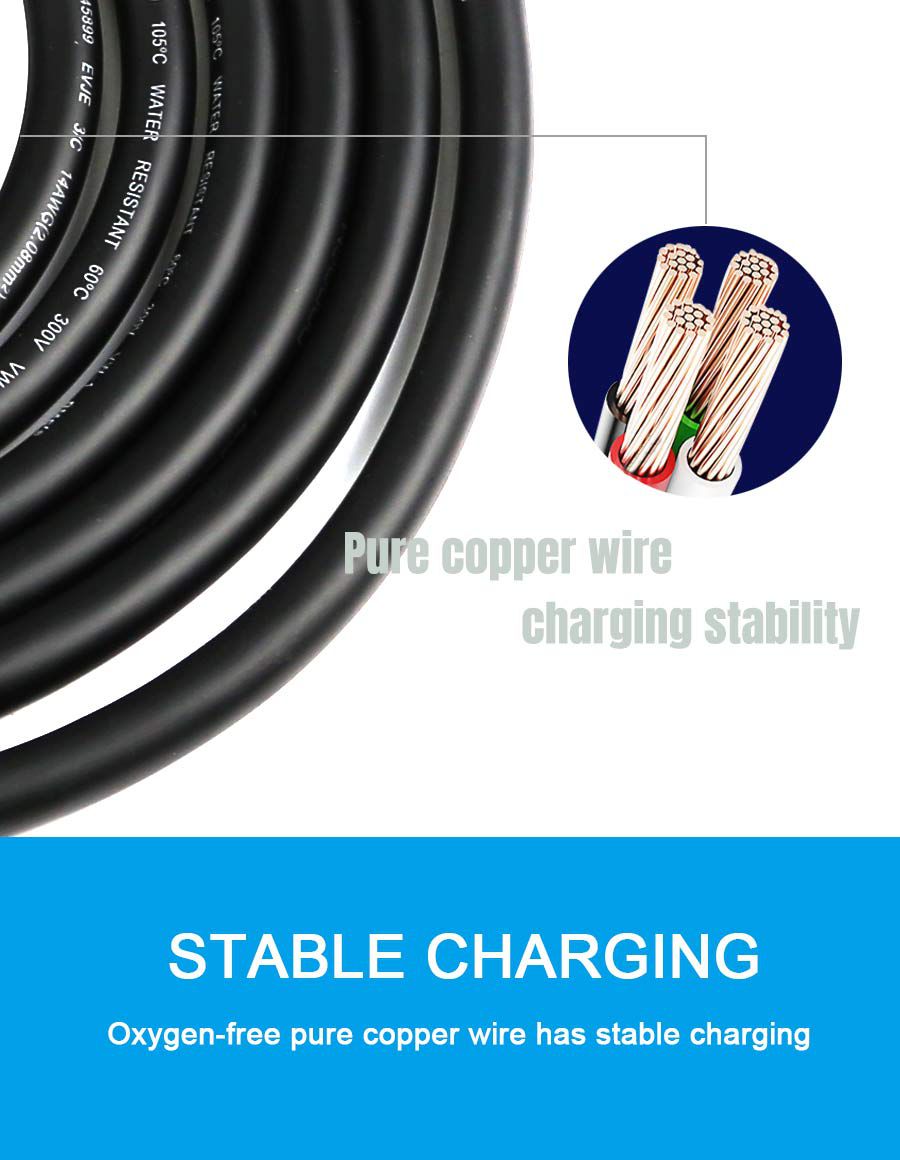

• Cable Specification: 16A 3*14AWG
• Protection Class: IP65

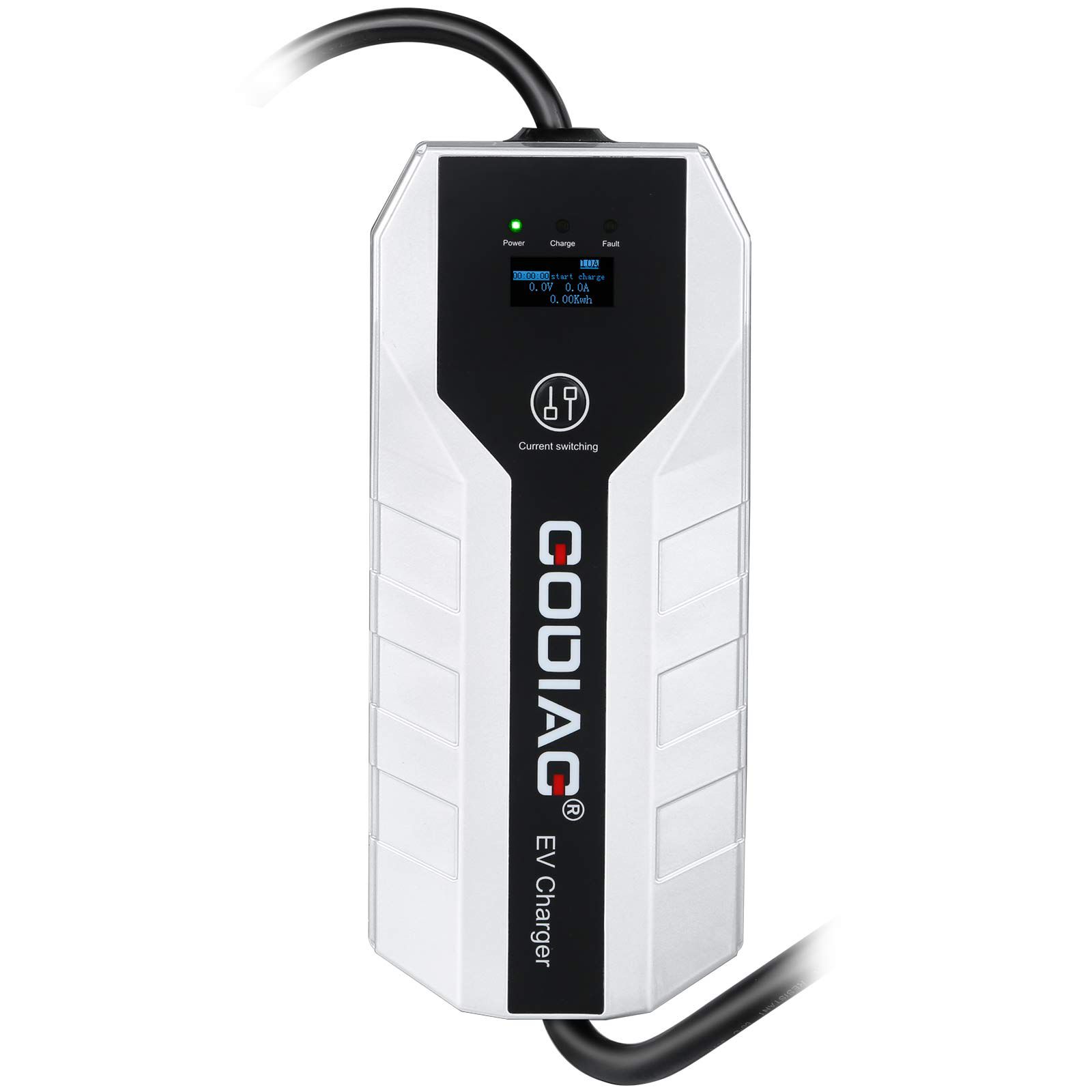

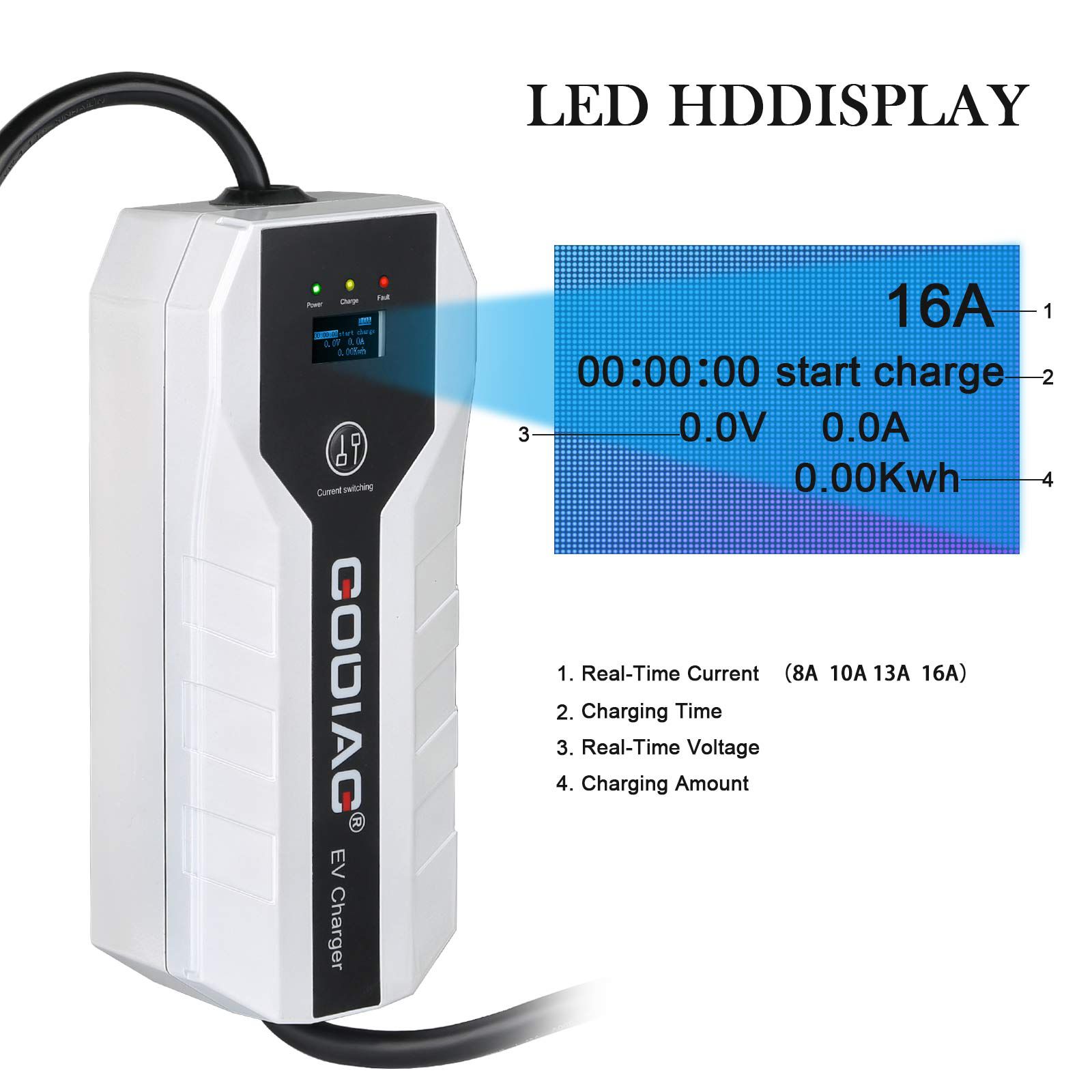

• User Interface: Display
• Supported Version: J1772 US standard vehicle interface
• Product Weight: 2600g

Easy Operation

1. The vehicle must be in P gear or stopped and turned off.
2. Clean the charging port if there are any foreign objects like water stains or mud/sand.

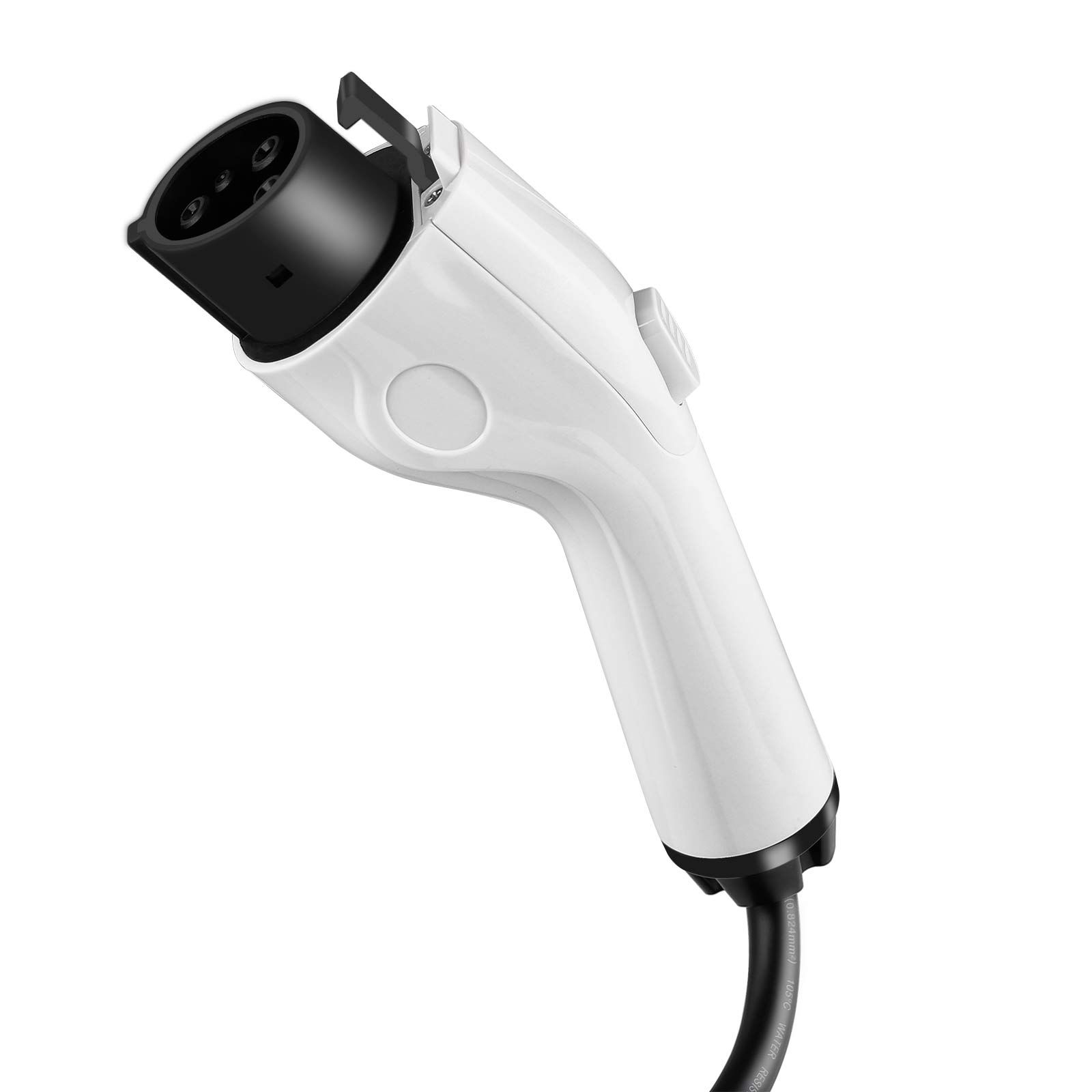

3. Insert the charger into the port, ensuring it locks with a "click" sound.
4. The vehicle will start charging, indicated by the charging adapter's light.
5. To finish charging, press the buckle and pull out the charger.

Note: Avoid operating electronic equipment during charging. Do not charge in heavy rain or severe ice and snow outdoors.

Wide Application

The GODIAG EV charger is suitable for household use, company settings, and outdoor travel.

• Aston Martin (all)
• Audi (all, including A3, Q7, eTron)
• Atieva (all)
• BMW (all, including i3, i8, 330e, x3, x5, 40e, iDrive, 540e, 740e, xDrive 40e)

• 1 charger host
• 1 charging cable (16.4ft)
• 1 manual
• 1 tool kit
