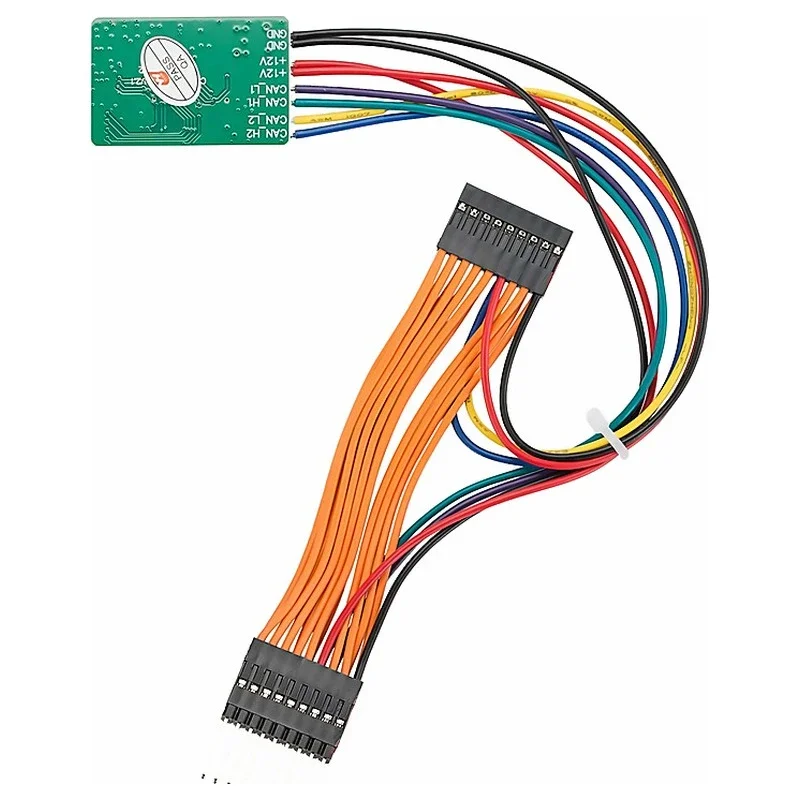

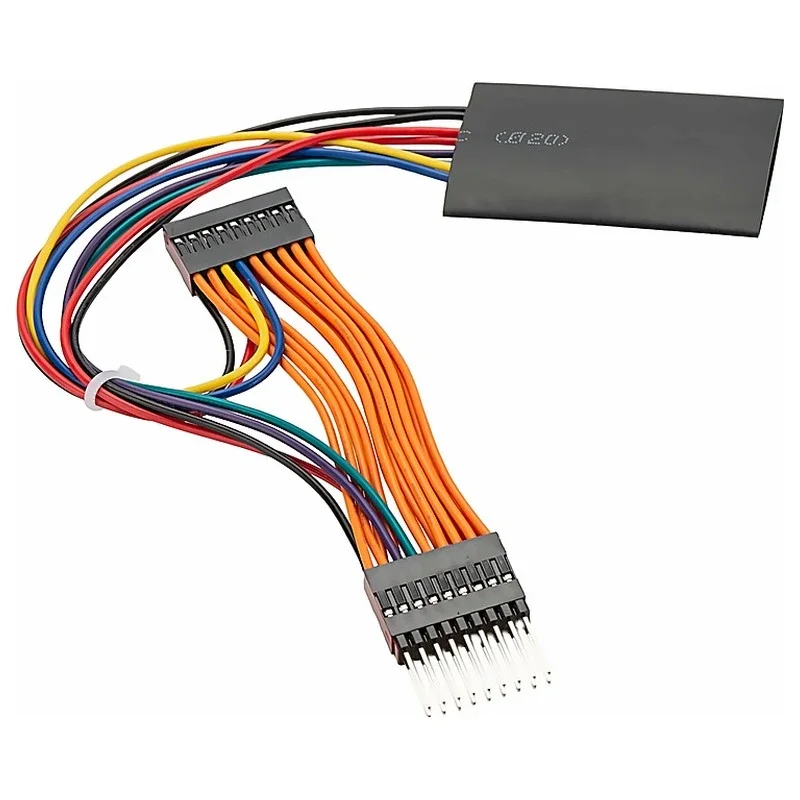

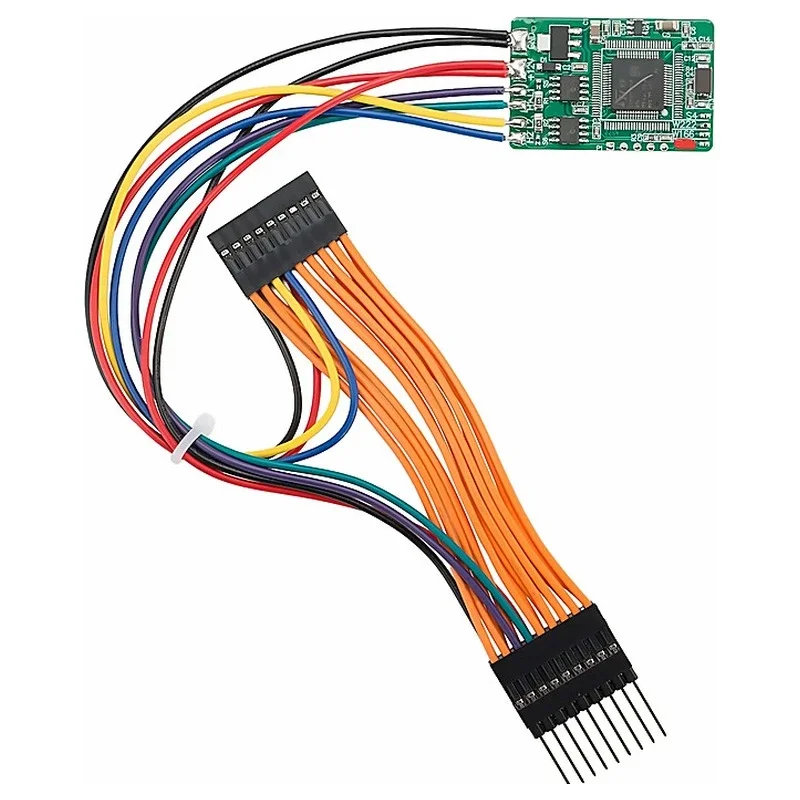

Yanhua MB CAN Filter 18‑in‑1 Universal CAN Filter for Benz & BMW

18‑in‑1 Multi‑Model Compatibility · Compact Size · Stable Performance · For Benz & BMW Mileage Adjustment

Yanhua MB CAN Filter 18‑in‑1 is a universal CAN filter designed for Benz and BMW vehicles. Compact, easy‑to‑operate with stable and reliable performance for adjustment work.

Applicable Vehicle List

• mercedes‑Benz: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
• BMW: CAS4 / FEM Fxx chassis; 1‑Series F2X, 3‑Series F3X, X5 F15, 5‑Series F10, 7‑Series F01/F02; supports FEM mileage adjustment.

Important Safety Notice

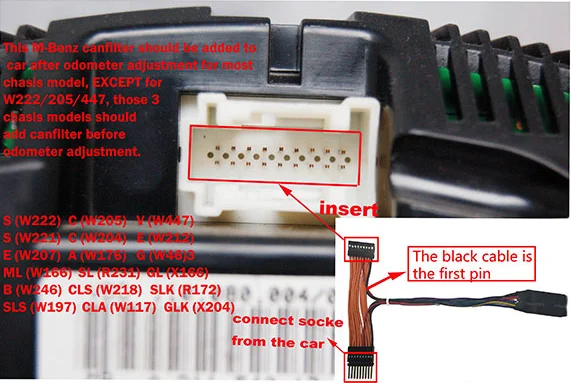

• New style: 222 / 205 / 217
• Old style: 166 / 212 / 463
• Confirm your vehicle model before operation.
• Old style W166 short circuit to GND
• New style W222 short circuit to GND
• Black wire connect to plug 1
• For BMW: Short‑circuit the two BMW dots together before connecting to vehicle.

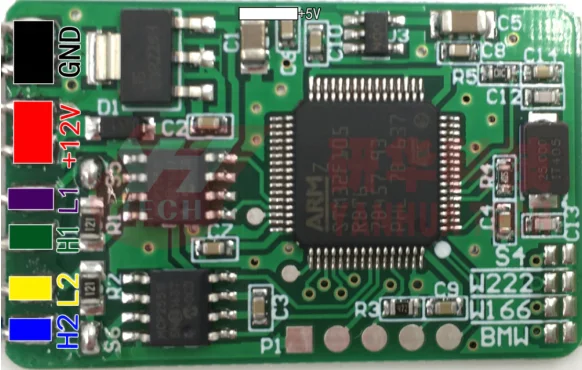

Wiring Definition for BMW

• Black --------- GND
• Red --------- +12V
• White --------- +5V
• Purple --------- L1(CAN_L1)
• Green --------- H1(CAN_H1)
• Yellow --------- L2(CAN_L2)
• Blue --------- H2(CAN_H2)

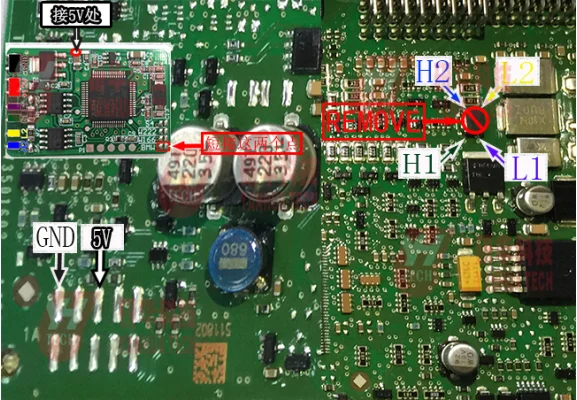

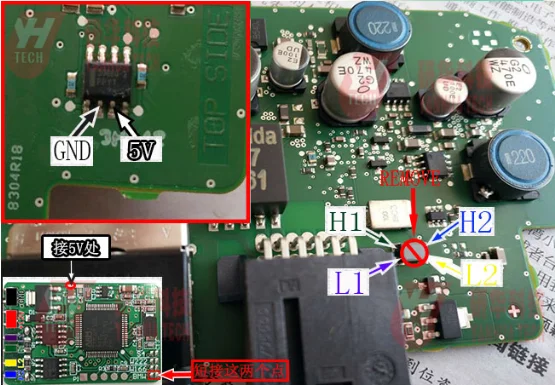

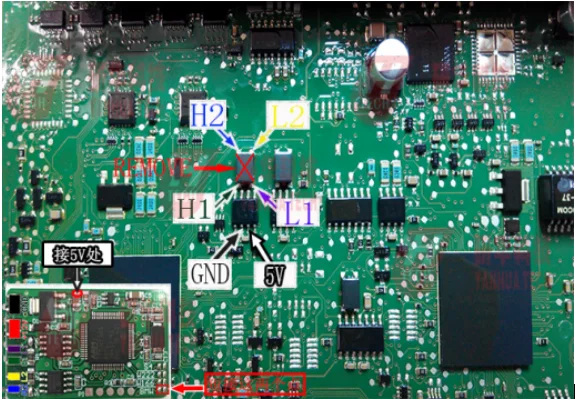

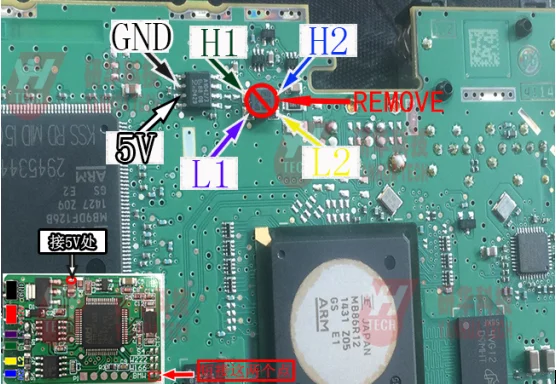

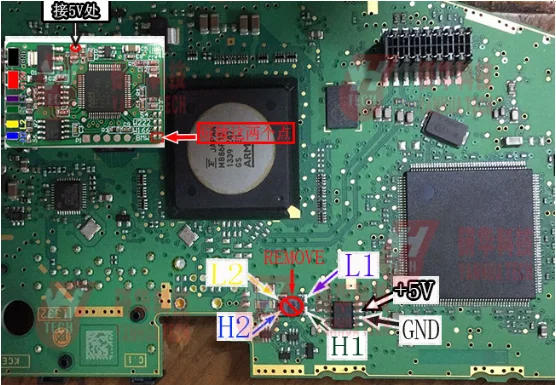

Wiring Diagrams Reference

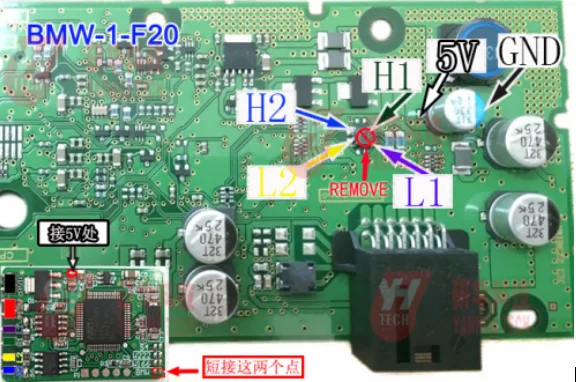

BMW 1 series F20 instrument diagram

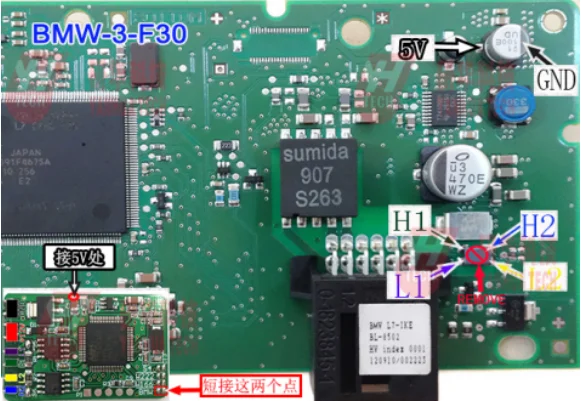

BMW 3 series F30 instrument diagram

BMW 3 GT series F30 instrument diagram

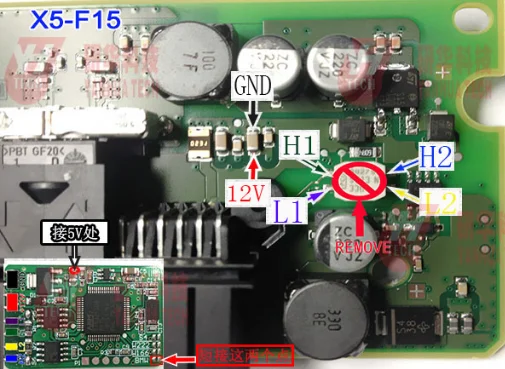

American Standard BMW X5 F15 instrument diagram

USA Standard BMW X5 F15 instrument diagram

BMW FEM diagram

BMW CAS4(1L15Y/5M48H/1N35H) diagram

BMW X3 F25 instrument diagram

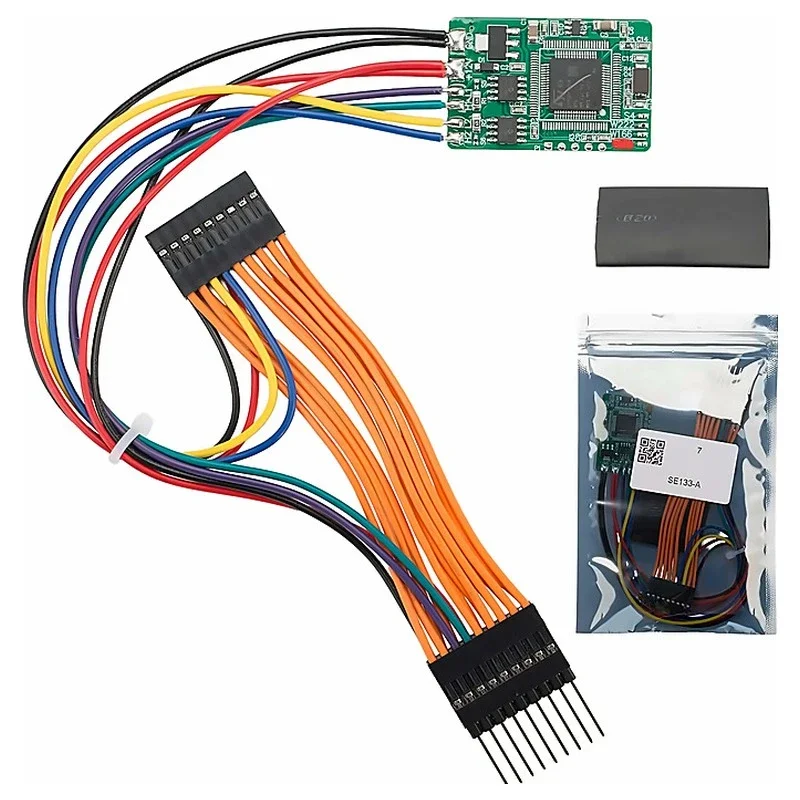

Package Contents

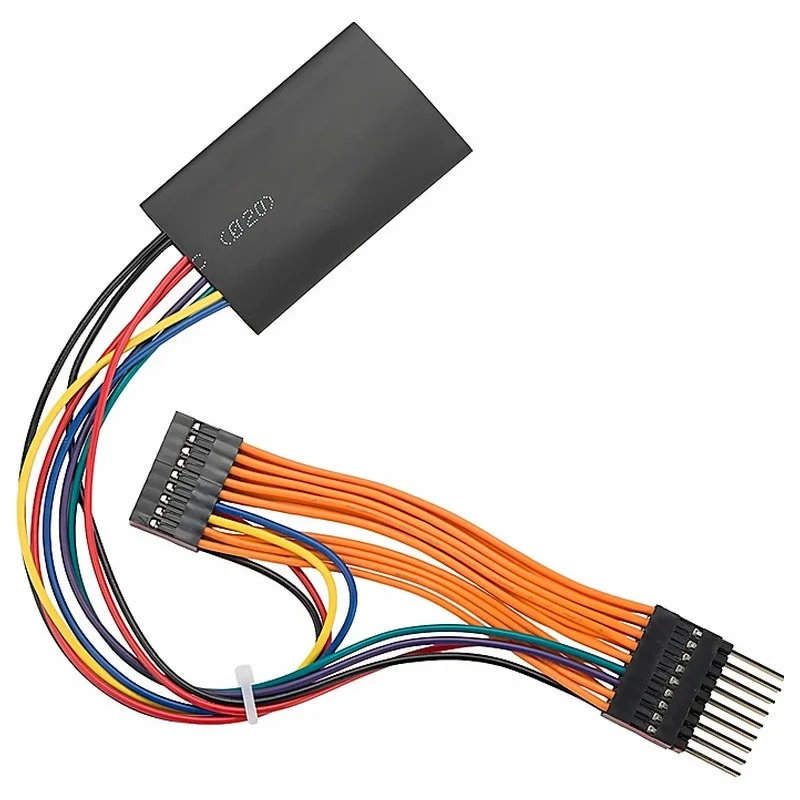

• 1 * Yanhua MB CAN Filter 18‑in‑1 Universal Filter for Benz & BMW
