GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage Current Display

The GODIAG GT107+ DSG Plus Gearbox Data Adapter is a specialized DSG gearbox connection adapter designed for advanced diagnostics and repairs. It allows gearbox maintenance engineers to clone, diagnose, and repair DSG gearbox ECUs. This adapter facilitates reading, writing, and adjusting data for the DSG gearbox ECU using professional tools such as PCMFlash, PCMTuner, and KESSv2, among others.

This adapter offers automatic and manual selection functionality for PCMFlash software. Users can choose "Auto" for straightforward data reading and writing, or "Manual" for detailed diagnostic work. For other software platforms like KESSv2, DQ200, DQ250, and DQ500, the adapter supports "Manual" selection.

Furthermore, by connecting to the vehicle's battery power, the adapter enables the direct reading and writing of DSG gearbox data. This process provides real-time visual confirmation of the communication status during both data reading and writing procedures.

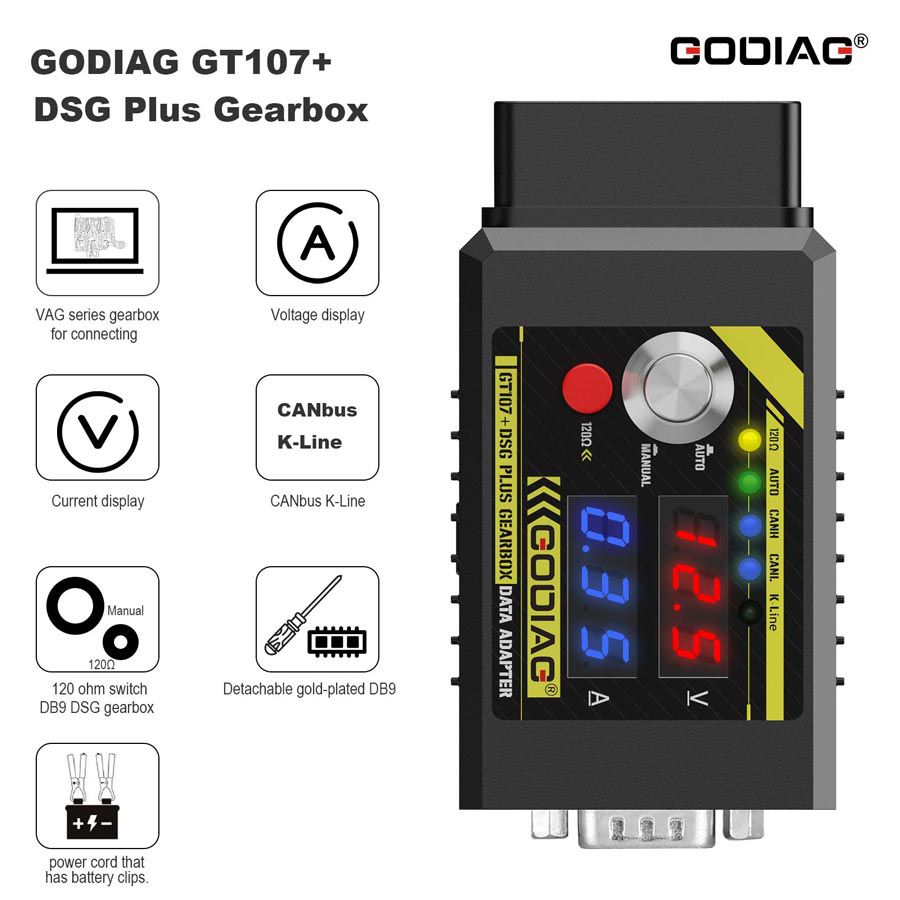

Product Features

1. Broad ECU Compatibility: The adapter is designed for connecting VAG series gearbox ECUs, supporting DQ250, DQ200, VL381, VL300, DQ500, DL501, and compatible with systems from Benz and BMW.
2. Integrated Voltage Display: Users can monitor the current operating voltage of the gearbox ECU. This feature is critical for identifying issues such as short circuits or incorrect wiring, as severe voltage drops indicate potential problems.
3. Real-time Current Monitoring: The current display shows the gearbox ECU's working current, allowing technicians to accurately judge the operational condition of the unit.
4. Communication Indicator: A dedicated indicator displays the current status of CANbus K-Line communication.
5. Switch Mechanism: Equipped with a manual and automatic power switch (120 ohm switch). The kit includes a boot mode cable (DB9 DSG gearbox universal conversion jumper) and a probe.
6. DIY Capability: The detachable gold-plated DB9 connection interface allows users to create professional connection ports for custom DIY development.
7. Vehicle Power Ready: Includes a power cord with battery clips, allowing users to conveniently draw power directly from the vehicle battery.

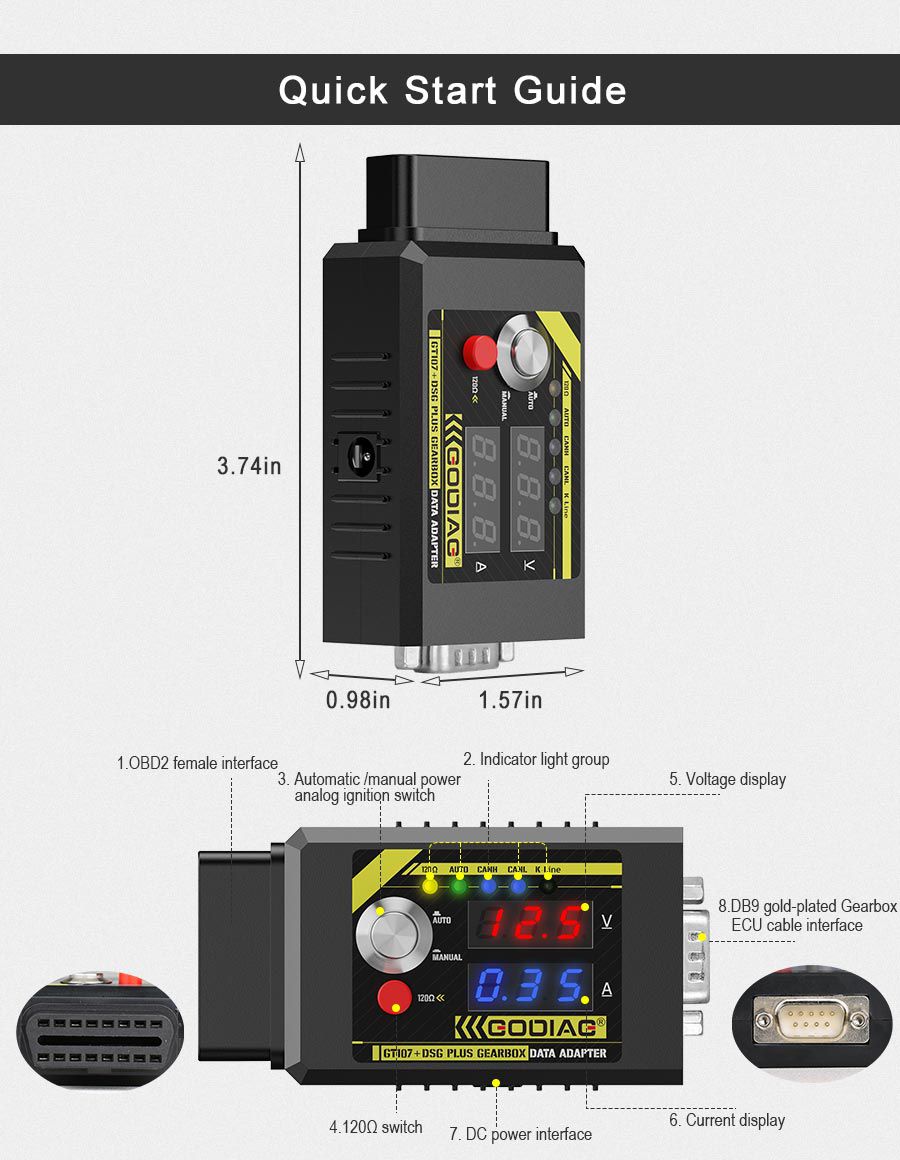

Connection Diagram & Operation

Usage with PCMtuner

Easy Operation Steps

1. Connect the Godiag GT107+ to the gearbox ECU according to the specific wiring definition. This applies to VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, Renault DC0/DC4 Gen2, and Honda LUK UDCT.
2. Connect the 12V 2A DC power supply. (Note: Ensure the function buttons are popped up before connecting the power supply.)
3. Set the GODIAG GT107 + analog ignition switch to "automatic" mode if the ignition switch is not pressed. In this state, the adapter displays 0V 0A. If the ignition switch is pressed, the adapter displays the power supply's current working voltage and the gearbox ECU's current working current. (Important: Select "automatic" or "manual" based on the mode required by the specific device for data reading and writing.)
4. Connect PCMFlash, PCMTuner, and J2534passthru.
5. Perform the desired data reading and writing operations.

Usage on the Car

Easy Operation Steps

1. Connect Godiag GT107+ to the gearbox ECU, adhering to the ECU's wiring definition (applicable to VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, Renault DC0/DC4 Gen2, and Honda LUK UDCT).
2. Connect the 12V 2A DC power supply. (Note: Ensure the function buttons are popped up before connecting the power supply.)
3. Set the GODIAG GT107 + analog ignition switch to "automatic" mode if the ignition switch is not pressed (displaying 0V 0A). If the switch is pressed, the adapter displays the power supply's current working voltage and the gearbox ECU's current working current. (Note: Select the appropriate "automatic" or "manual" analog ignition mode required by the device for data reading and writing.)
4. Connect PCMFlash, PCMTuner, and J2534passthru.
5. Perform data reading and writing operations.

Usage with KESSV (DQ200, DQ250, DQ500)

Easy Operation Steps

1. Connect the Godiag GT107+ to the gearbox ECU according to the ECU's wiring definition. This covers VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, Renault, DC0/DC4 Gen2, Honda LUK UDCT, Benz, and BMW gearbox ECUs.
2. Connect the 12V 2A DC power supply. (Note: Ensure the function buttons are popped up before connecting the power supply.)
3. Set the GODIAG GT107 + analog ignition switch to "manual" mode if the ignition switch is pressed, which displays the power supply's current working voltage and the gearbox ECU's current working current.
4. Connect an OBD2 data reading and writing device or diagnostic tool.
5. Perform Gearbox ECU data reading, writing, or diagnostic operations.

Package Includes

• 1pc x Godiag GT107+ ECU Prog AD
• 1pc x DB9 DSG Gearbox Universal Conversion Jumper
• 1pc x Power Cord with Battery Clips
• 1pc x Probe
• 1pc x DC power adapter (5.5*2.1mm female to 5.5*2.5mm male)
• 1pc x Manual
