FOXWELL i70 Android Tablet Diagnostic Diagnostic Scan Tool with All System Diagnosis and 22 Services, Oil Reset, EPB, SAS, ABS Bleed DPF, BMS, Inject

Foxwell i70 Android Tablet Diagnostic Diagnostic Scan Tool with All System Diagnosis and 22 Services, Oil Reset, EPB, SAS, ABS Bleed DPF, BMS, Inject

Faster, Smarter, Lighter, More Accurate

It is a brand new advanced automotive diagnostic tool based on the latest Android operating system and technology. It inherits the same Foxwell advantages in car fault diagnostic tech, such as multi manufacturer coverage, powerful test abilities, special functions and accurate test data.
Self-power and connecting to the car via a cable, i70 is the perfect tool for the busy garage or workshop, who need the latest technology at unbeatable value.

• ABS Test – tests ABS motors, solenoids, solenoid enable relays, EMBs, and more.
• ABS Version Test – displays the name of the brake system and the ABS controller version nuMBer, software ID, and sequence value.
• Actuator Test – tests AYC valves, inlet valves, outlet valves, pump motors, and TRACS valves.
• Auto Bleed Test– removes air from the internal brake fluid chambers after servicing the brakes

2. Oil Service Reset
Allows you to reset the service lamps on the instrument cluster. The Service Indicator System is designed to alert the driver when the vehicle is due for a service.
3. EPB, Electronic Parking Brake
Allows you to perform the service and maintenance of brake systems,including deactivation and activation of the brake control system, bleeding brake fluid, opening and closing brake pads, and setting brakes after disc or pad replacement, on multiple brands of vehicles where electronic brake systems are fitted.
4. BRT, Battery Replacement
Lets you to new battery validated, how to clear faults from the dashboard and display.
5. TBA/TPS, Throttle Body Alignment
Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA)
6. SAS, Steering Angle Sensor Calibration
Let you perform calibration of the Steering Angle Sensor.
7. CVT
This function is used to reset the compensation code and initialize the ECT after a solenoid valve or valve body assembly has been replaced.
8. Gear Learning
Crankshaft position sensor adaptive learning.
9. DPF, Diesel Particulate Filter Regeneration
Let you perform the DPF cleaning to clear the blockage through continuous burning of the particulates captured in the DPF filter. When a DPF regeneration cycle is completed, the DPF light automatically goes off.
10. TPMS, Tire Pressure Monitoring System Programming
Allows you to check the tire sensor IDs from the vehicle ECU and to perform TPMS programming and reset after tires and/or TPM sensors are replaced and/or tires are rotated.
11. Injector Coding
This function is to reset and match the date after injector is replaced.
12. Odometer
This function allows you to revise the date of odometer and write the original date into new Odometer.
13. A/F Adjust
Correspondingly change the fuel supply to change the steam production of boiler and maintain the energy balance in the combustion process.What Foxwell i70 Can Do?
- Compatible with the latest 2017 models，including cars, SUVs, minivans, light-duty trucks sold worldwide
- Get access to powertrain, chassis and body systems
- Quick Test function to test most vehicle systems
- Read and clear diagnostic trouble codes and resets MIL

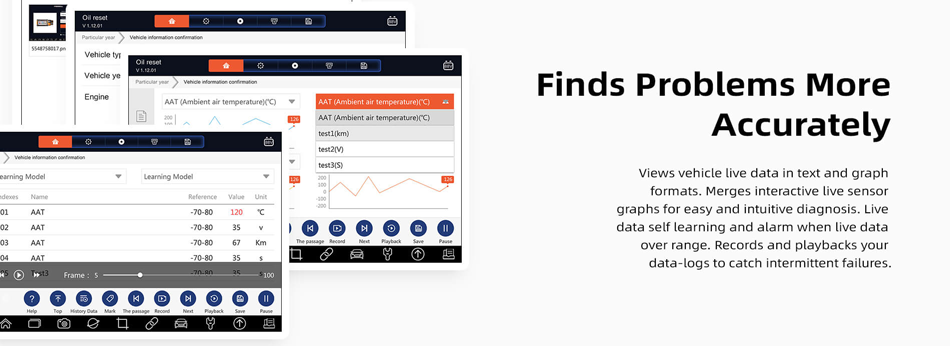

- View live vehicle sensors data in a text, graph and gauge format
- Merge interactive live sensor graphs for easy and intuitive diagnosis
- Live data self learning and alarm when live data over range
- Record and playback your data-logs for offline analysis
- Read and clear freeze frame data
- Run component/system bi-directional tests
- Support adaptations and control module coding
- Key coding for several vehicles
- Support the most commonly required service features like brake deactivation, service resets, and transmission adaptations

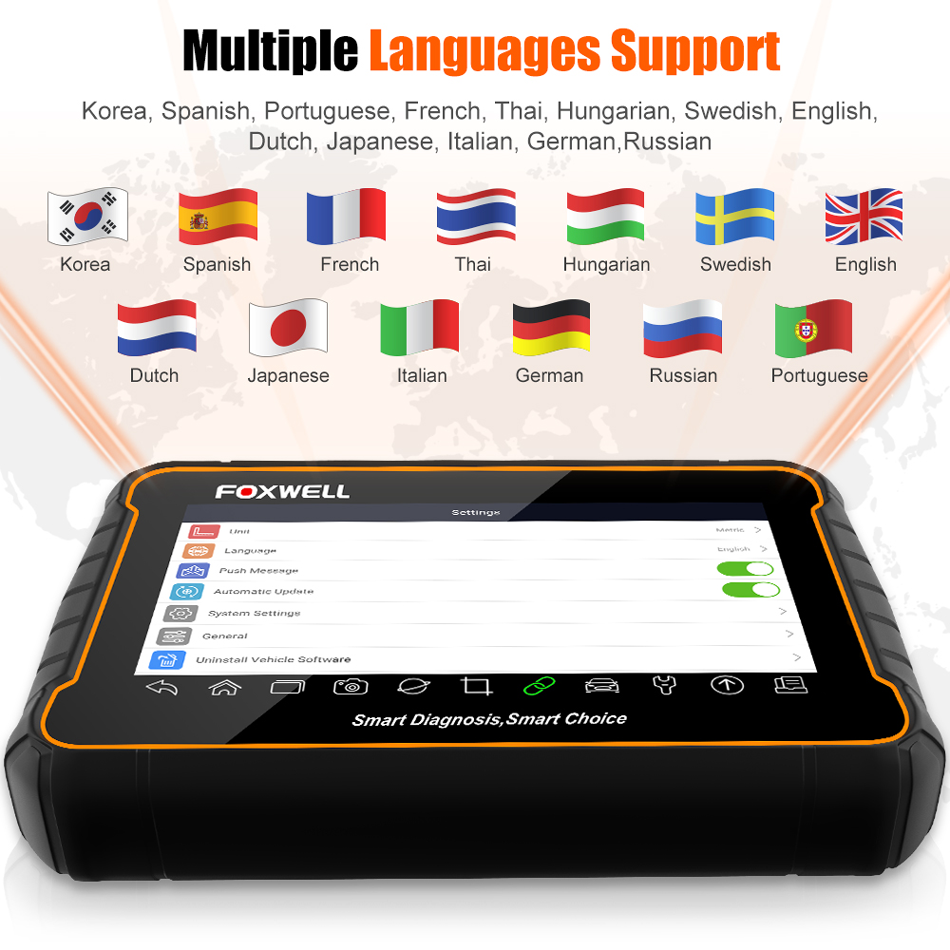

- Multi-language menus and code definitions for an international marketplace
- One click update via WIFI makes machine keep the latest system status at all times
- Wireless printing function allow you print diagnosis results and get instant feedback

Faster, Smarter and Better Value
i70 is loaded with the same software of i70pro, making the i70 fabulous value for money. Built on the Android system and with the 4 core processor, i70 has the power to scan vehicle systems quickly and efficiently.
i70 includes great features, such as support for over 98 makes, actuation testing, special functions, live data and some programming functions. However, i70 offers more. Connect an oscilloscope or a videoscope to i70, and it becomes to a powerful integrated diagnostic solution.

i70 Scanner Is Easy to Use.
Easy to use interface with time saving functions, such as menu-driven navigation, automatic VIN acquisition. Besides, you can send/ receive email and web browse using its advanced Android functionality.

One-Touch-Update
With internet access, you will always have the latest bug fixes, new vehicles, newly added parameters and functionality at your fingertips.

History Diagnosis Saves Your Time
The history diagnosis function stores records of tested vehicles including vehicle information and DTCs from previous test. It also provides direct access to the previously tested vehicle and allows you to restart a diagnostic session without the need to do vehicle identification again.

The Best Customer Manager
i70’s customer management functions allows you to create and edit customer accounts. It helps you to save and organize all customer information that are correlated with the associated test vehicle history records, which is a great support for the arrangement of daily workshop business.

American Coverage
Chrysler, Ford, GM, Brazilian GM (For Brazilian Market Only).

Asian Coverage
Au Ford (For Australian Market Only), Acura, Daewoo, Daihatsu, Honda, Holden (For Australian Market Only), Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Mazda, Mitsubishi, Nissan, Perodua, Proton, Scion, Subaru, Suzuki, Ssang Yong, Tata and Toyota.

European Coverage
Abarth, Alfa-Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroen, Dacia, EU Ford, Fiat, Ferrari, Jaguar, Lancia, Land Rover, Lamborghini, Maserati, Maybach, Mercedes Benz, Mini, Opel, Peugeot, Renault, Rolls-Royce, Porsche, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW, VW_CV.

Chinese Coverage
Brilliance, BYD, Changan, Changhe Auto, Citroen_China, Chery, Chery_NE, DF Honda, DF Nissan, Emgrand, Faw, Ford China, Foton, Geely, Gleagle, Greatwall, GZ Honda, Karry, Jac, Lifan, Luxgen, Maple, Mazda China, Naveco, Peugeot_China, Rely, Riich, Roewe, SH_Skoda, SH_VW, Toyota China, YQ VW, YQ Audi, WeiLi.

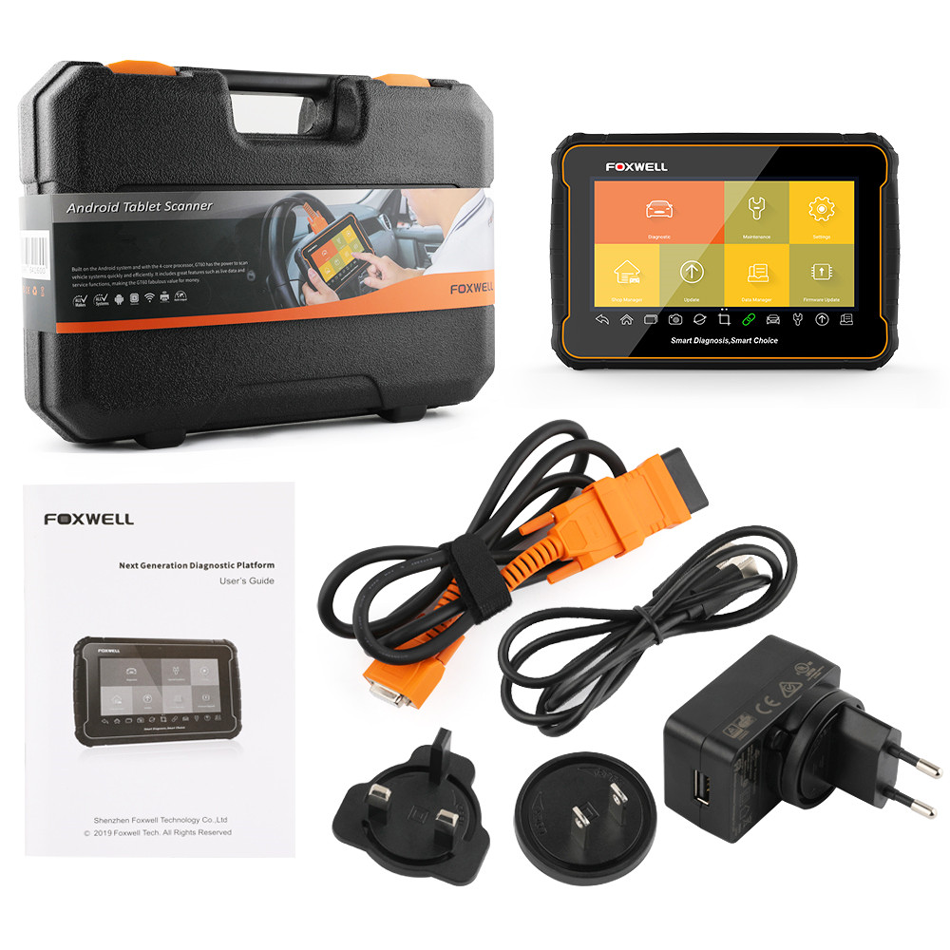

Kit includes

i70 Main Unit
User’s Guide
Diagnostic Cable
Blow molding case
AC/DC external power adapter
4-channel Oscilloscope( Optional)
Videoscope( Optional)

Specifications
Screen: 7" diagonal, daylight readable color LCD screen; 1024*600 pixel
Touch with Gloves: Supported
Operating System: Android system
Processor: MT 8163( ARM Cortex, A53 x 4, 1. 3GH z)
Memory: 1GB DDR3L
Hard drive: 32GB
Communication Interface: Built-in WIFI 802.11 b/g Wireless LAN
micro USB 2.0 OTG, USB 2.0 HOST standard
Bluetooth 4.0 (10-20 m)
Camera: 5 megapixels rear-facing
Battery: 4000mAh, lithium-polymer battery. Chargeable via 5V AC/DC power supply
Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L lines,Double K lines, Double K Line, SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed, Middle-speed, Low-speed and Single-wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, TP2.0, TP16, SAE J1939, SAE J1708, Fault-Tolerant CAN.
Dimensions: 205*135*30mm
